- Order number: EDL-2181
Edelbrock Part # 2181 Performer 351W intake manifold is designed for street 351 c.i.d. Ford... more
- Recommended intake gasket: Edelbrock # 7220
- Manifold height: A-3.50", B-4.75"
- Carburetor pad height: 4.12"
- Carburetor recommendations: Edelbrock AVS2 or Performer Series 600-650 cfm
- Camshaft Recommendations: Performer Plus #2182
- Port exit dimensions: 1.09" x 1.84"
- Choke block-off plate # 8981 included
- Van installation use OEM Ford van gasket set; will fit early 16-bolt head with Ford 16-bolt intake gasket.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

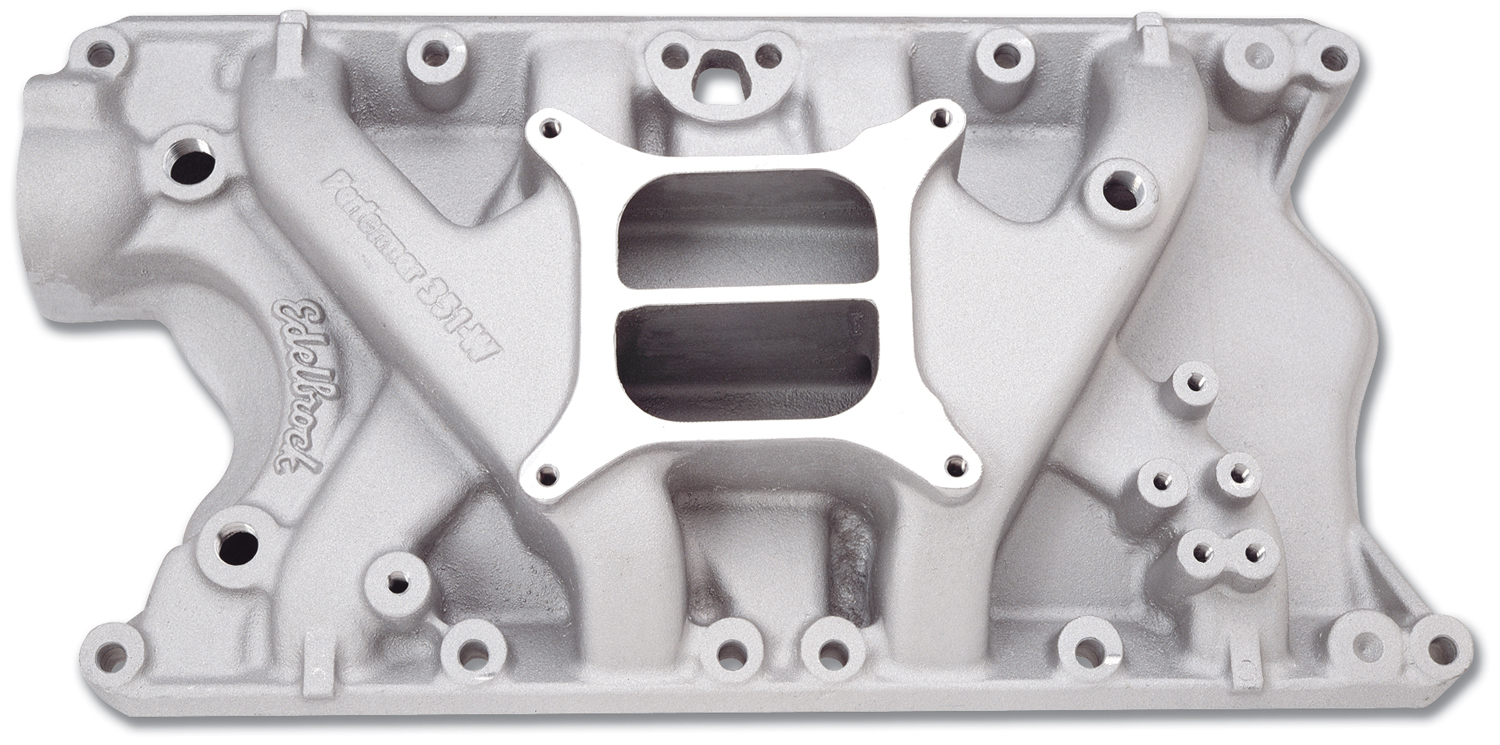

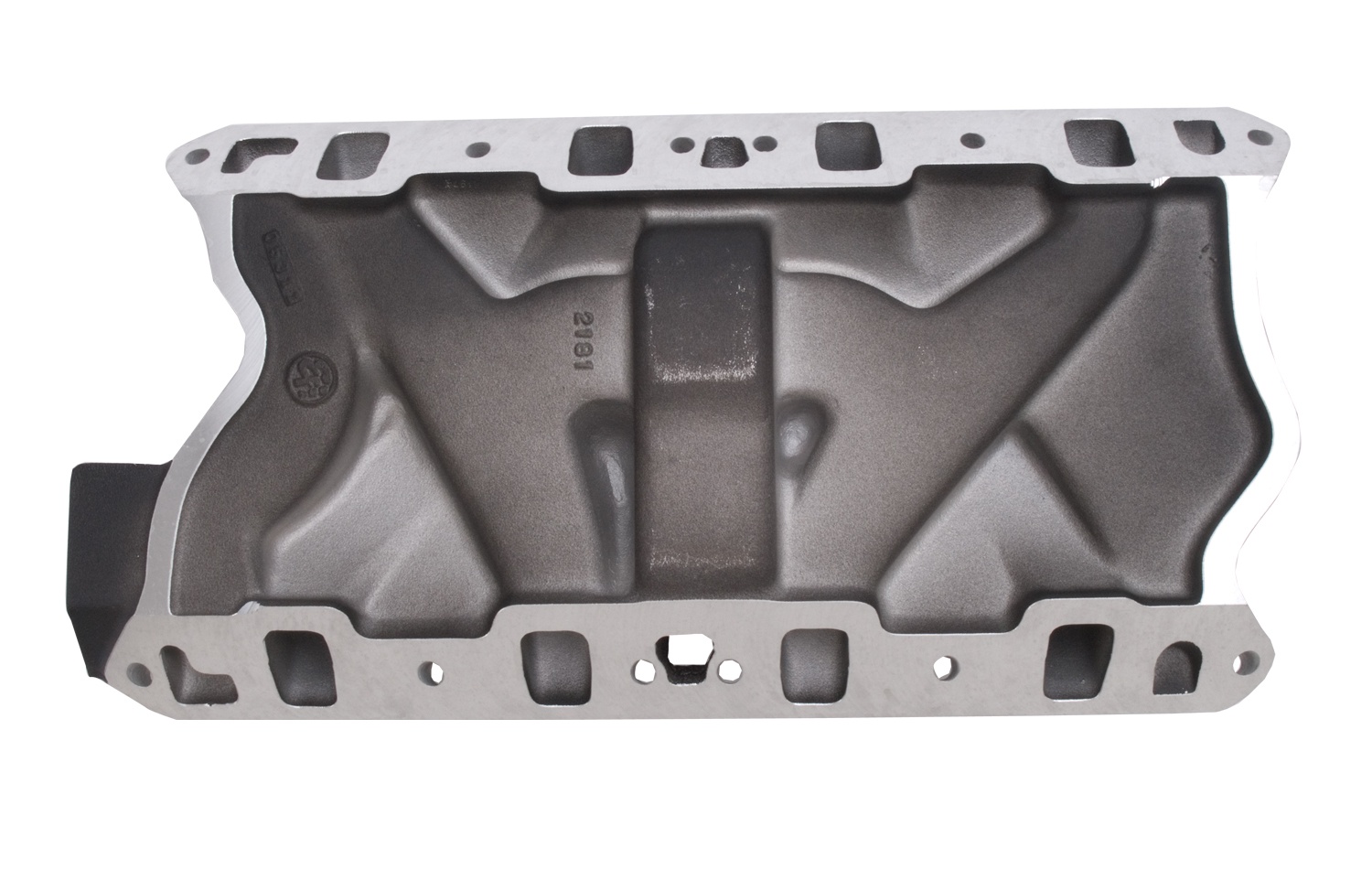

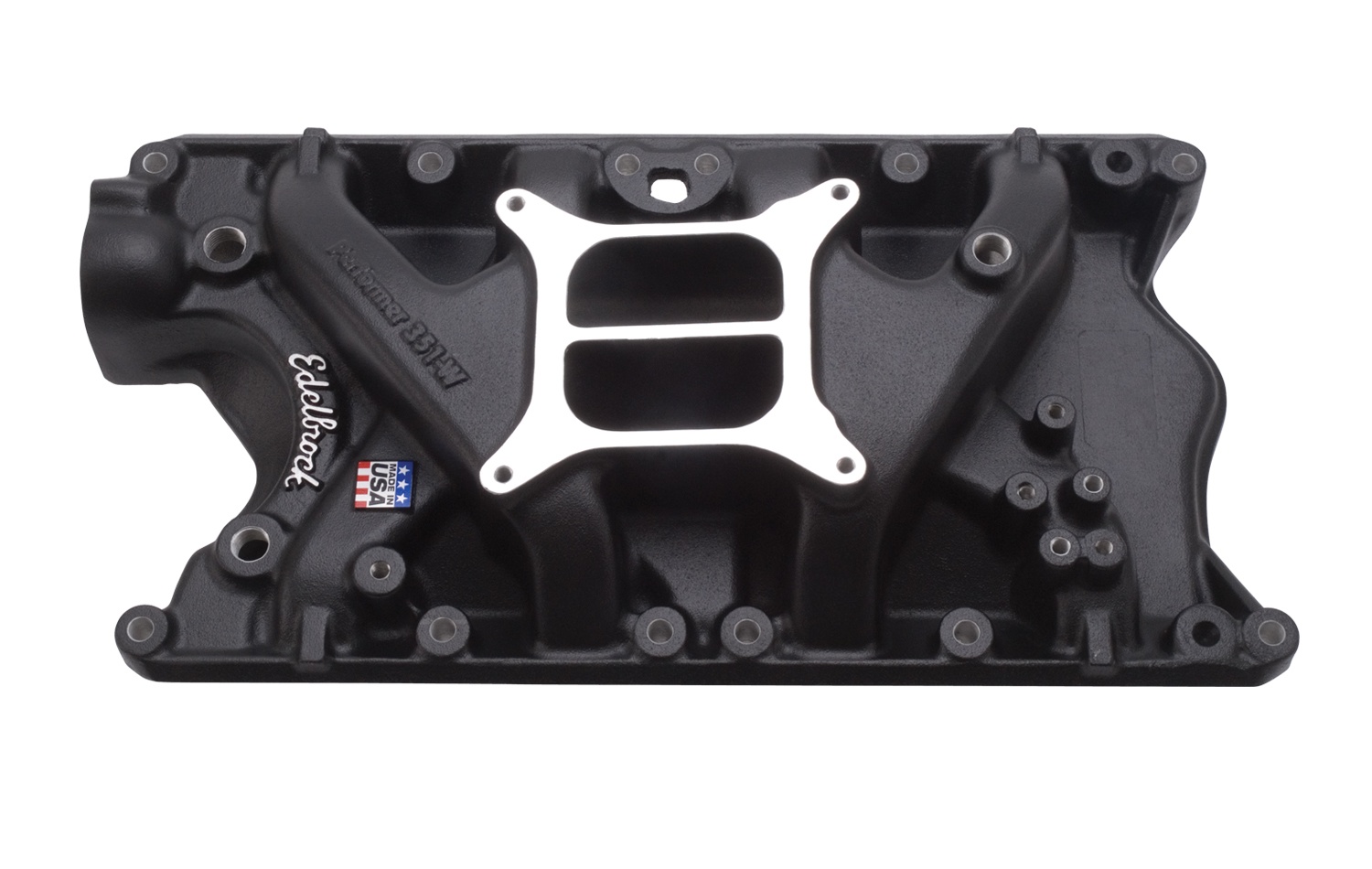

Edelbrock 2181 - Performer Manifold, Ford 351W
Edelbrock Part # 2181 Performer 351W intake manifold is designed for street 351 c.i.d. Ford Windsor V8's. Will not fit Boss 351. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
- For idle to 5500 RPM street-driven performance
- Stock replacement
Car/Engine: | Ford 351W |
Color/Finish: | Satin, Black |
RPM Range: | Idle-5500 |
Serie: | Performer |
Emission: | Without EGR |
Flange: | Square Bore |
Intake Style: | Dual Plane |
Usage: | Street |
Carburator Setup: | Single-Carburator |
Related links
Installation Notes
-
- Recommended intake gasket: Edelbrock # 7220
- Manifold height: A-3.50", B-4.75"
- Carburetor pad height: 4.12"
- Carburetor recommendations: Edelbrock AVS2 or Performer Series 600-650 cfm
- Camshaft Recommendations: Performer Plus #2182
- Port exit dimensions: 1.09" x 1.84"
- Choke block-off plate # 8981 included
- Van installation use OEM Ford van gasket set; will fit early 16-bolt head with Ford 16-bolt intake gasket.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
