RPM Air Gap Manifold, AMC 290-343-390, 67-69
In Stock, delivery time: 1-3 Workdays
Only 1 in stock.
€678.25 incl. vat
Plus shipping costs*Comparing
Notes

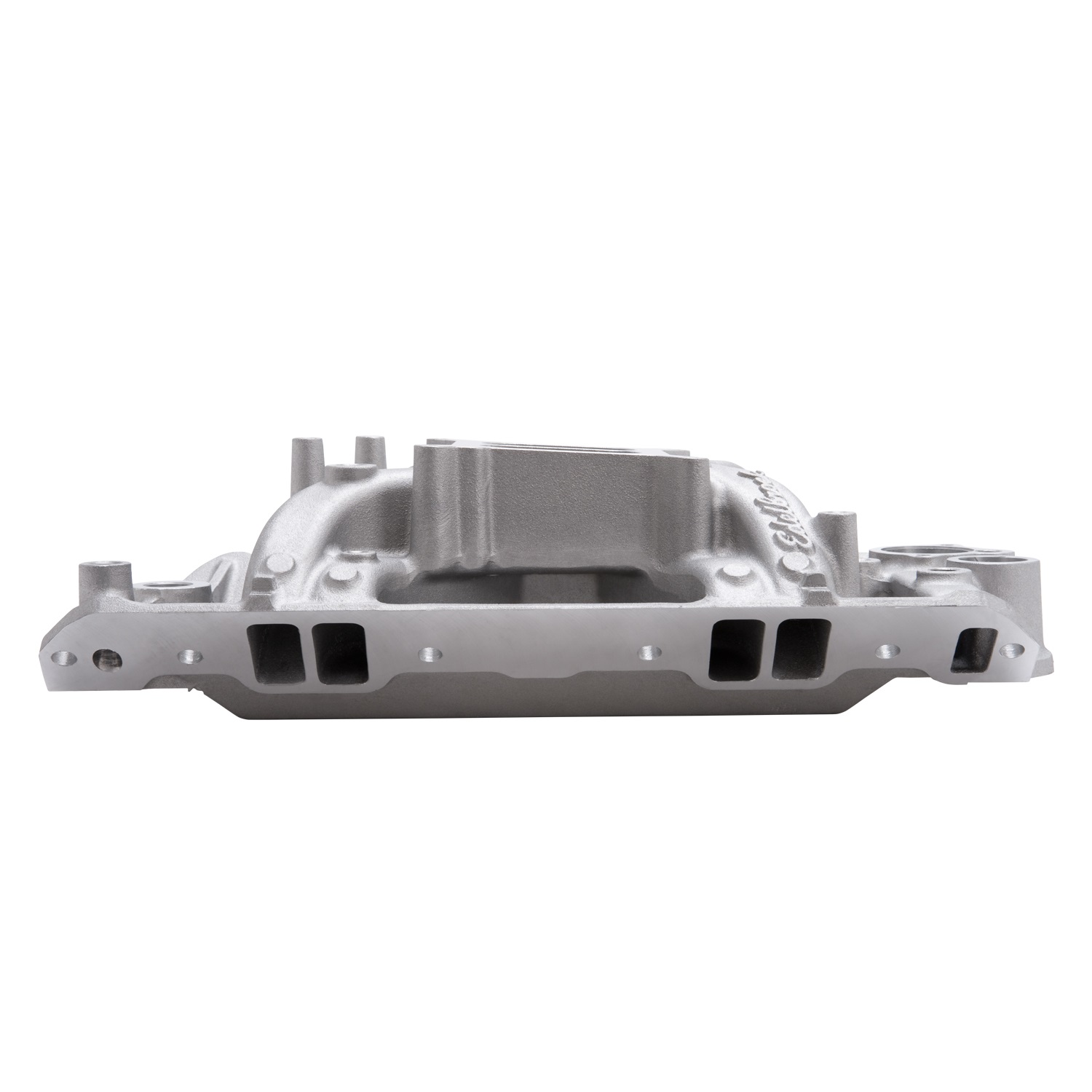

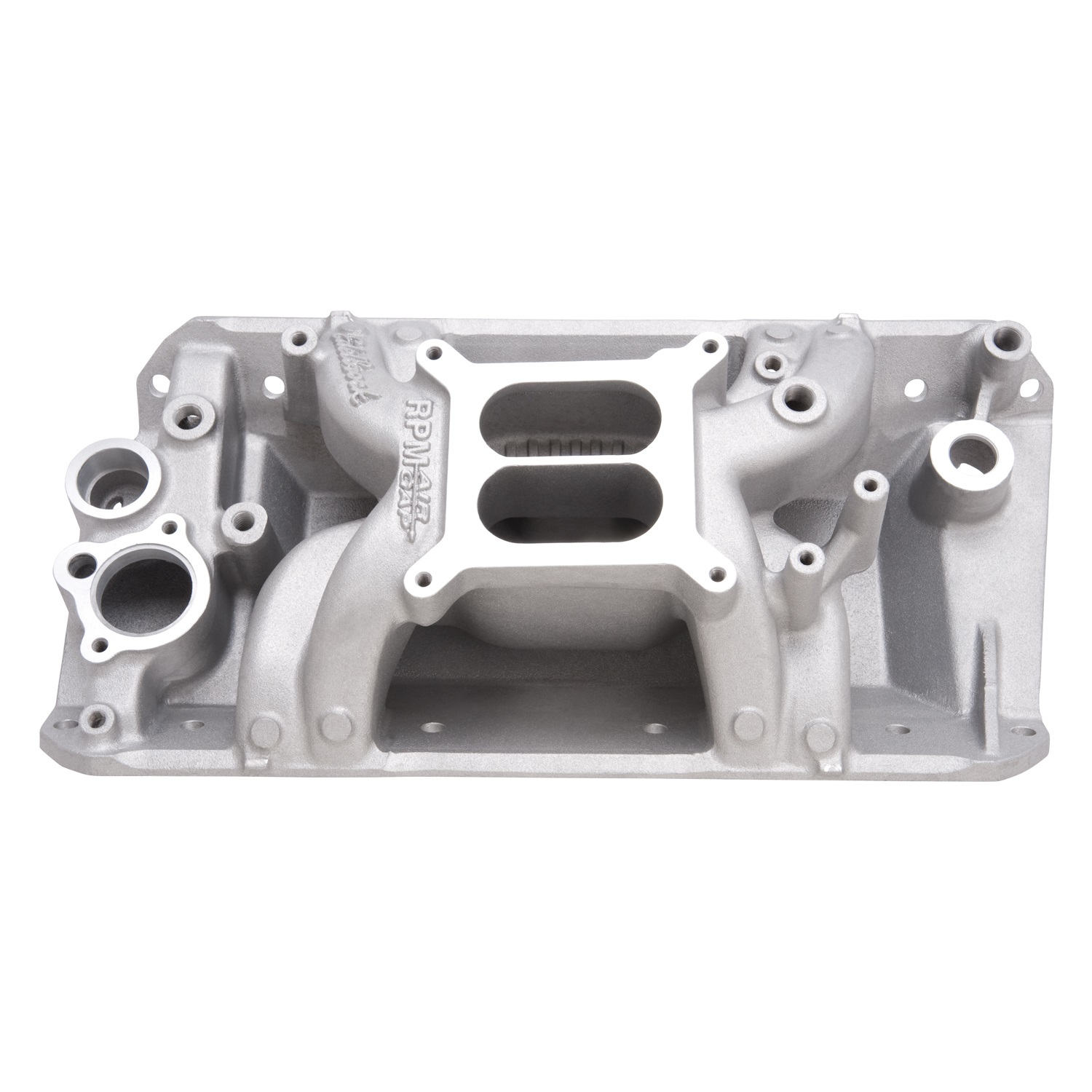

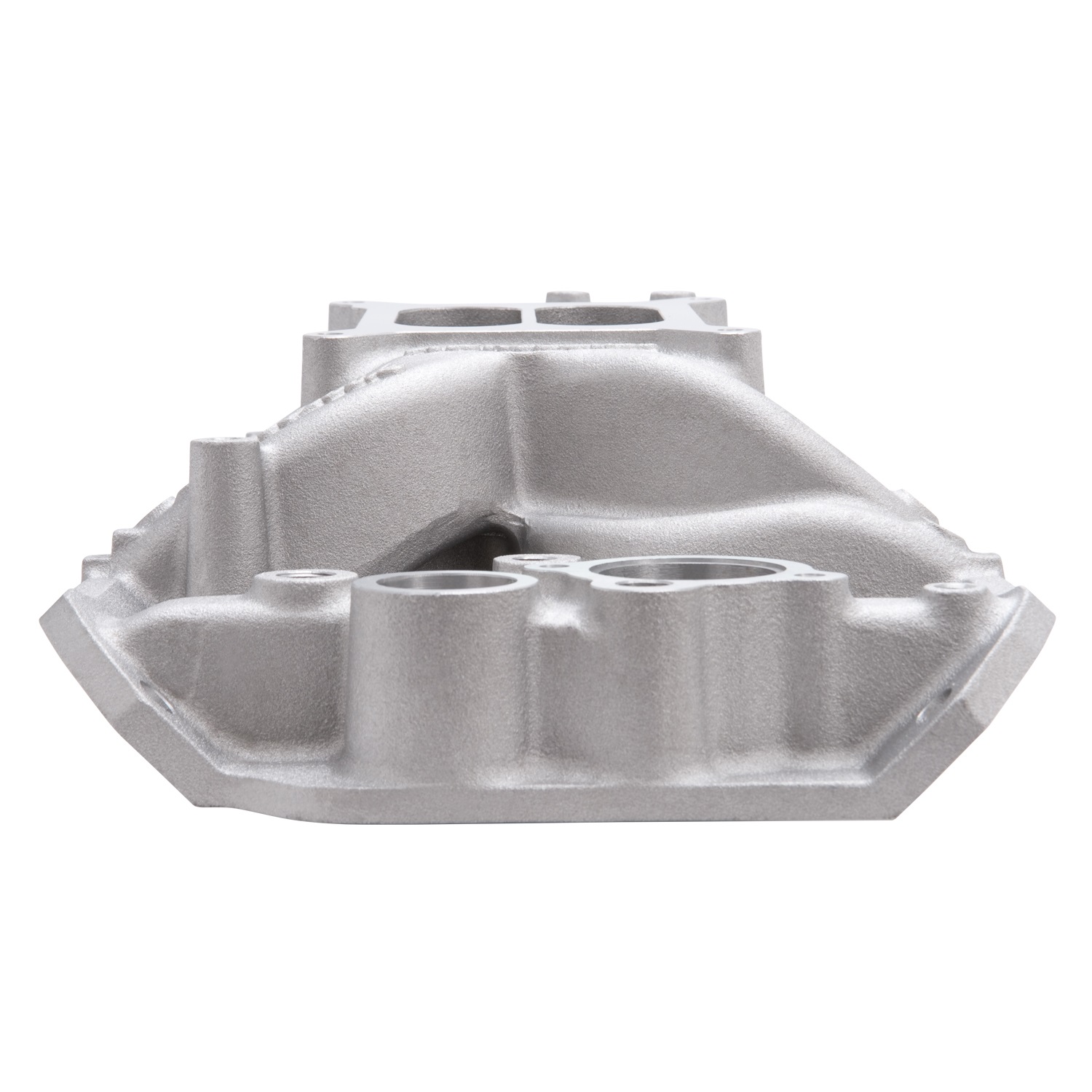

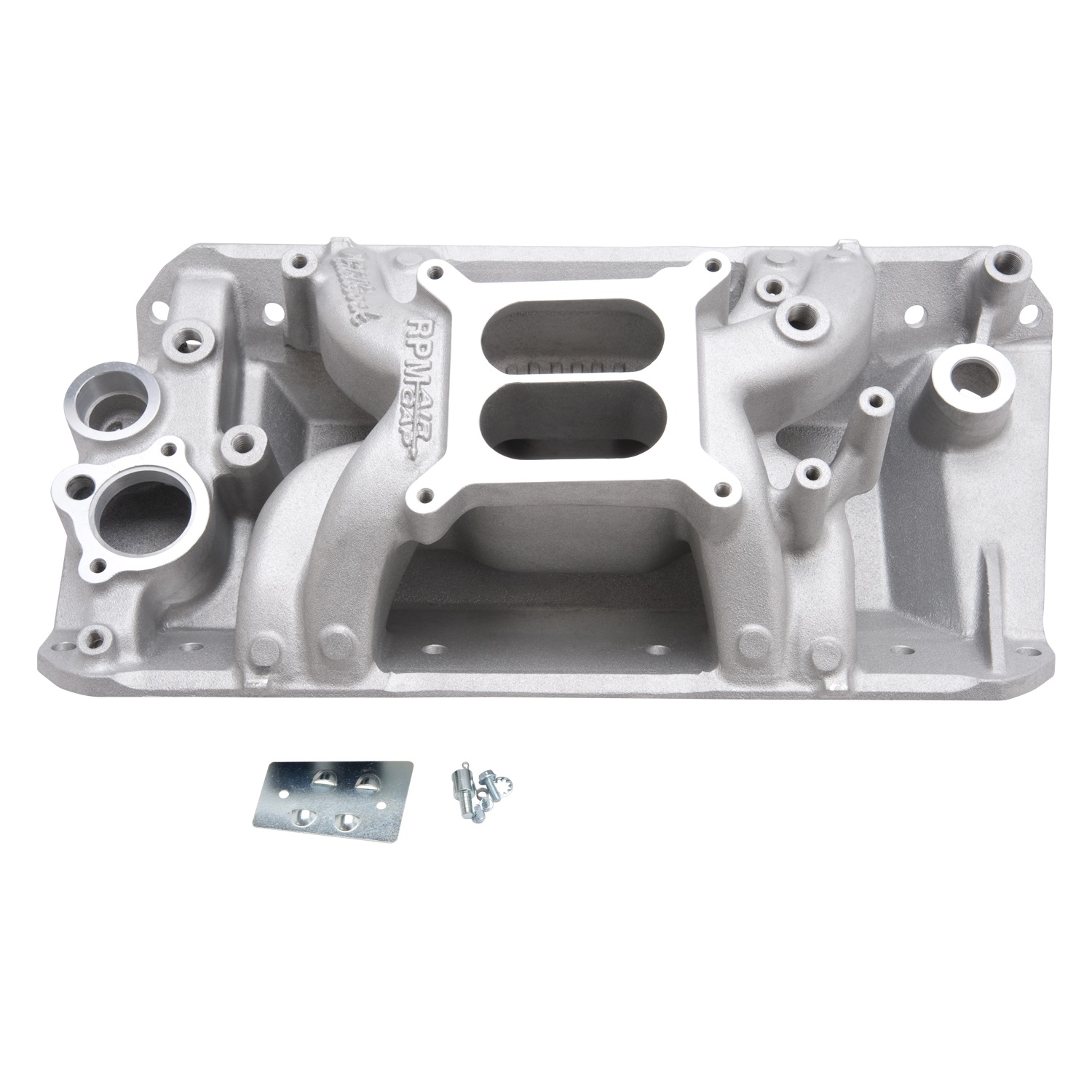

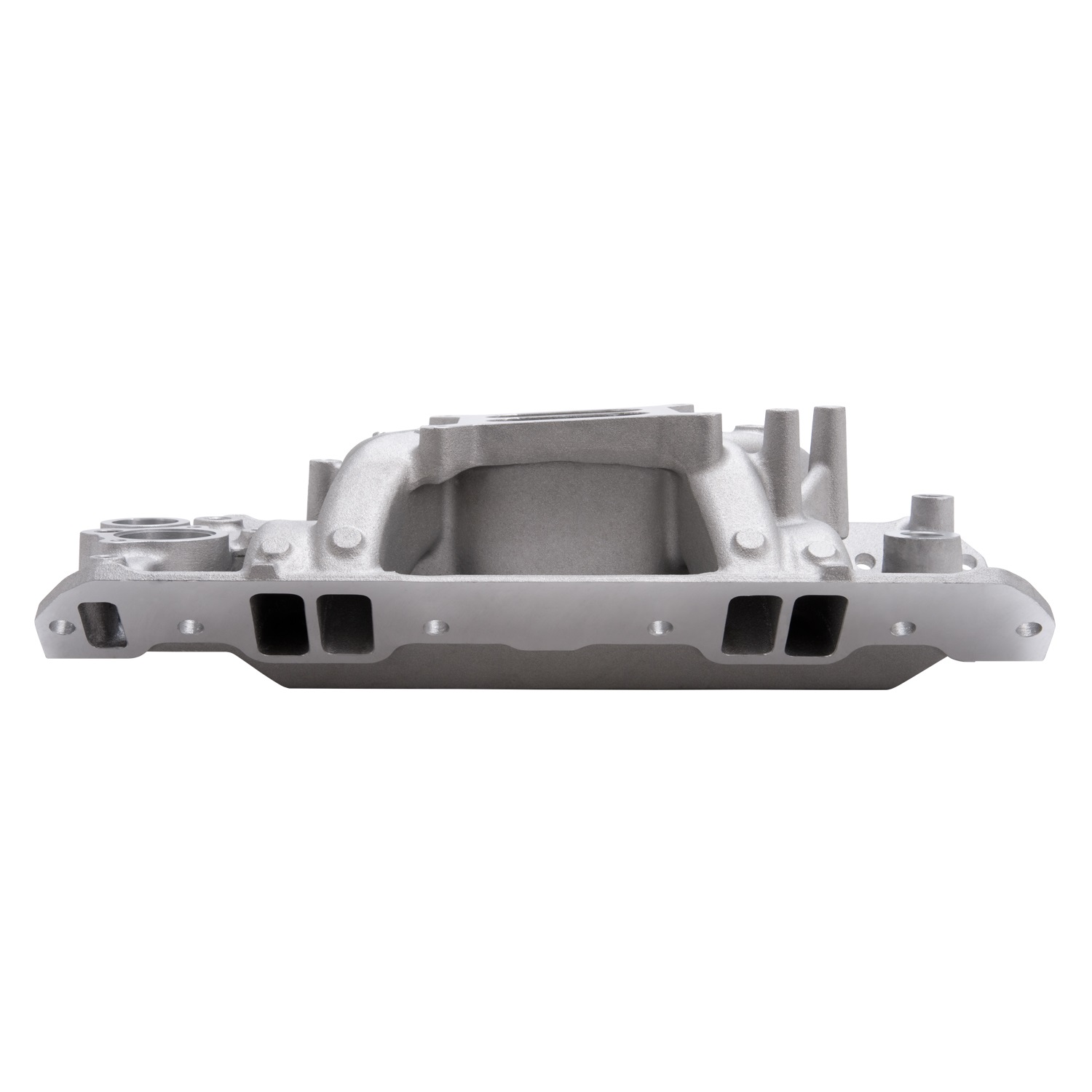

Edelbrock Part # 7530 RPM Air-Gap AMC intake manifold is designed for 1967-69 290-390 c.i.d. V8 applications. This RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover.
- Based on performer RPM-series with the unique air gap
- Air gap cooler and denser mixture for more power
- Designed for 1500 to 6500 RPM street-driven power
- Dual-plane high-rise intake with 180-degree firing order
- Produces incredible top-end horsepower
- Retains good throttle response and acceleration
- Includes Standard Oil Fill, PCV and A/C assembly bosses
- Not for exhaust-heat chokes
- No exhaust crossover
Details
| Car/Engine: | AMC / Jeep |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 290-304-360-401 cui |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | 1500-6500 |
| Serie: | RPM Air-Gap |
| Usage: | Performance |
links
Login

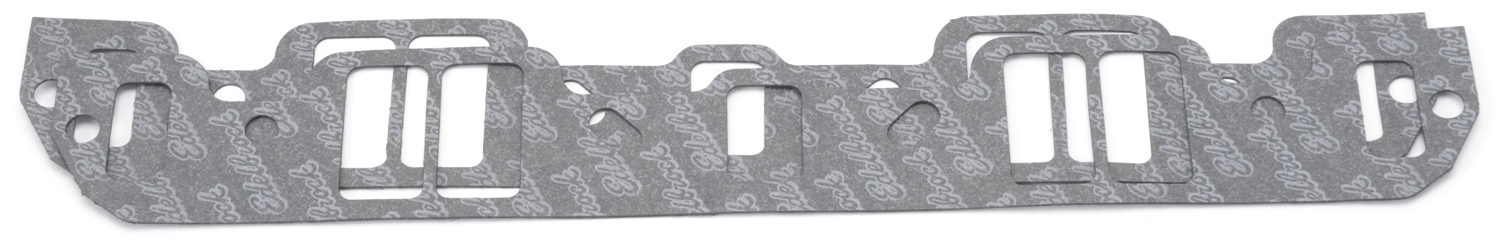

- Recommended intake gasket: Edelbrock#7213
- Must use factory style metal valley tray
- Manifold height: A-4.45", B-5.77"
- Carburetor pad height: 5.11"
- Carburetor recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm.
- Camshaft Recommendations: Performer RPM #7132
- Port exit dimensions: 1.04" x 2.10"

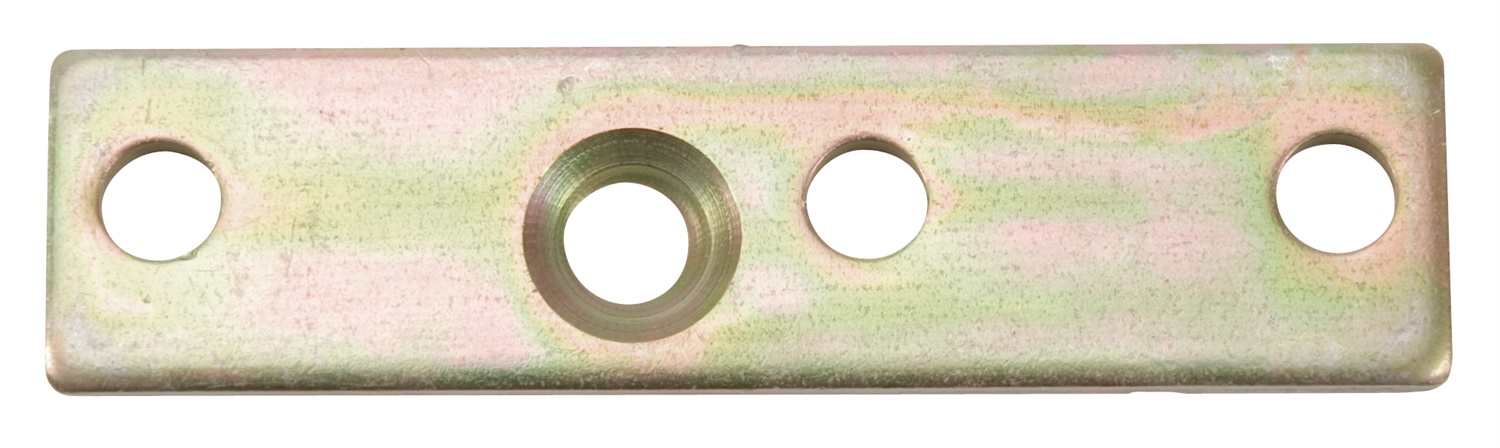

- Edelbrock bracket # 8034 required for 1979 and later vehicles
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.

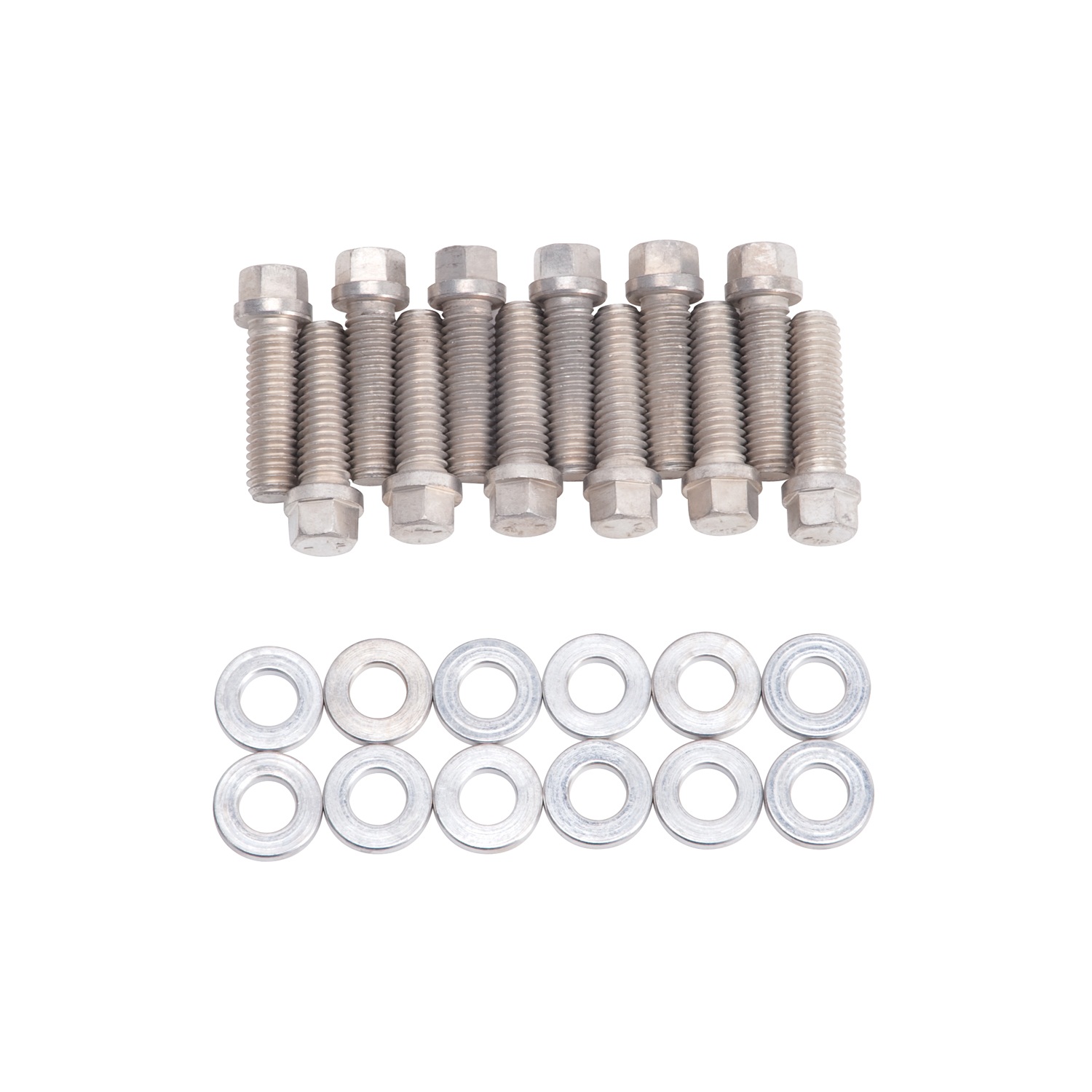

- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Edelbrock Part # 7530 RPM Air-Gap AMC intake manifold is designed for 1967-69 290-390 c.i.d. V8 applications. This RPM Air-Gap intake manifold incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover.
- Based on performer RPM-series with the unique air gap
- Air gap cooler and denser mixture for more power
- Designed for 1500 to 6500 RPM street-driven power
- Dual-plane high-rise intake with 180-degree firing order
- Produces incredible top-end horsepower
- Retains good throttle response and acceleration
- Includes Standard Oil Fill, PCV and A/C assembly bosses
- Not for exhaust-heat chokes
- No exhaust crossover
Details
| Car/Engine: | AMC / Jeep |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 290-304-360-401 cui |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | 1500-6500 |
| Serie: | RPM Air-Gap |
| Usage: | Performance |
