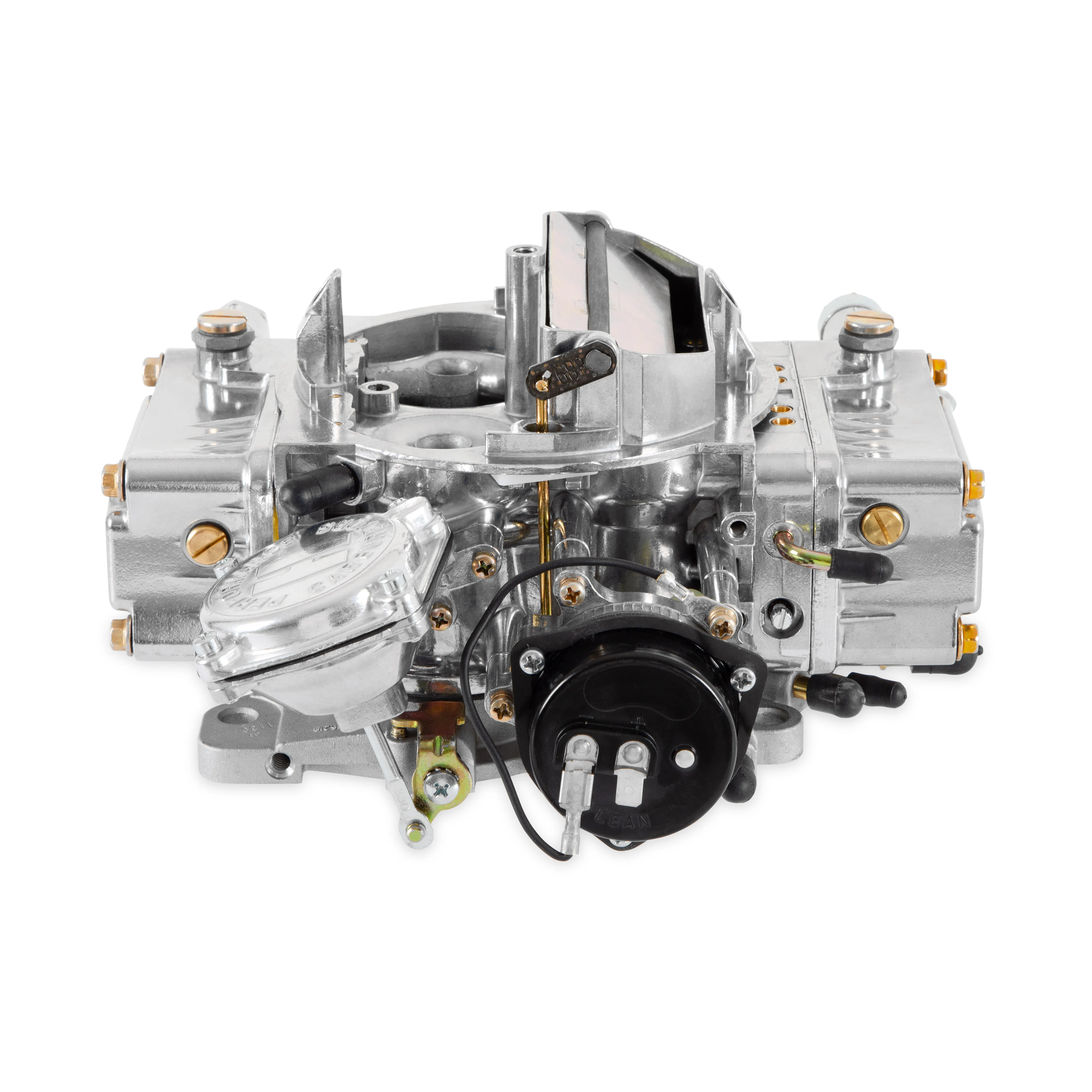

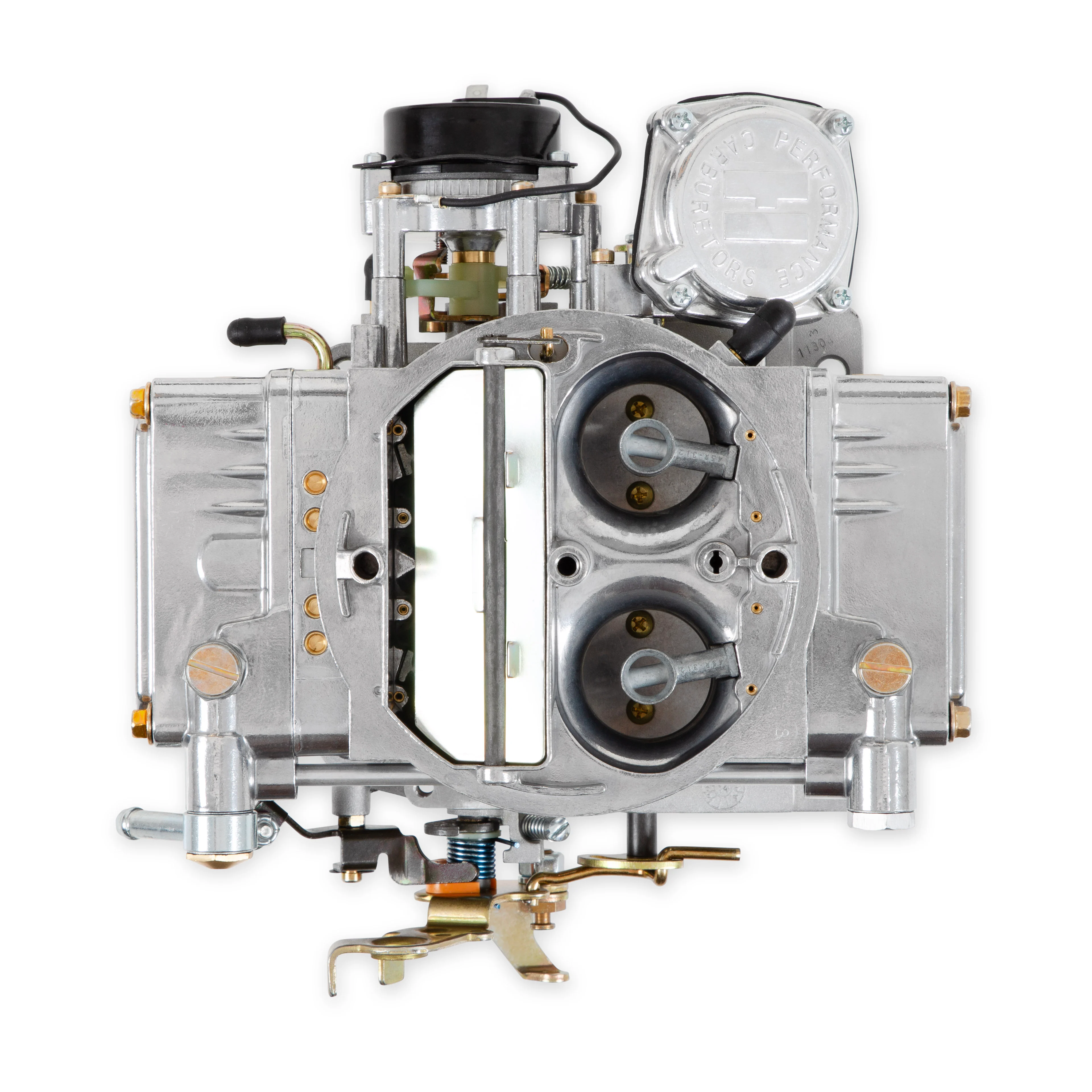

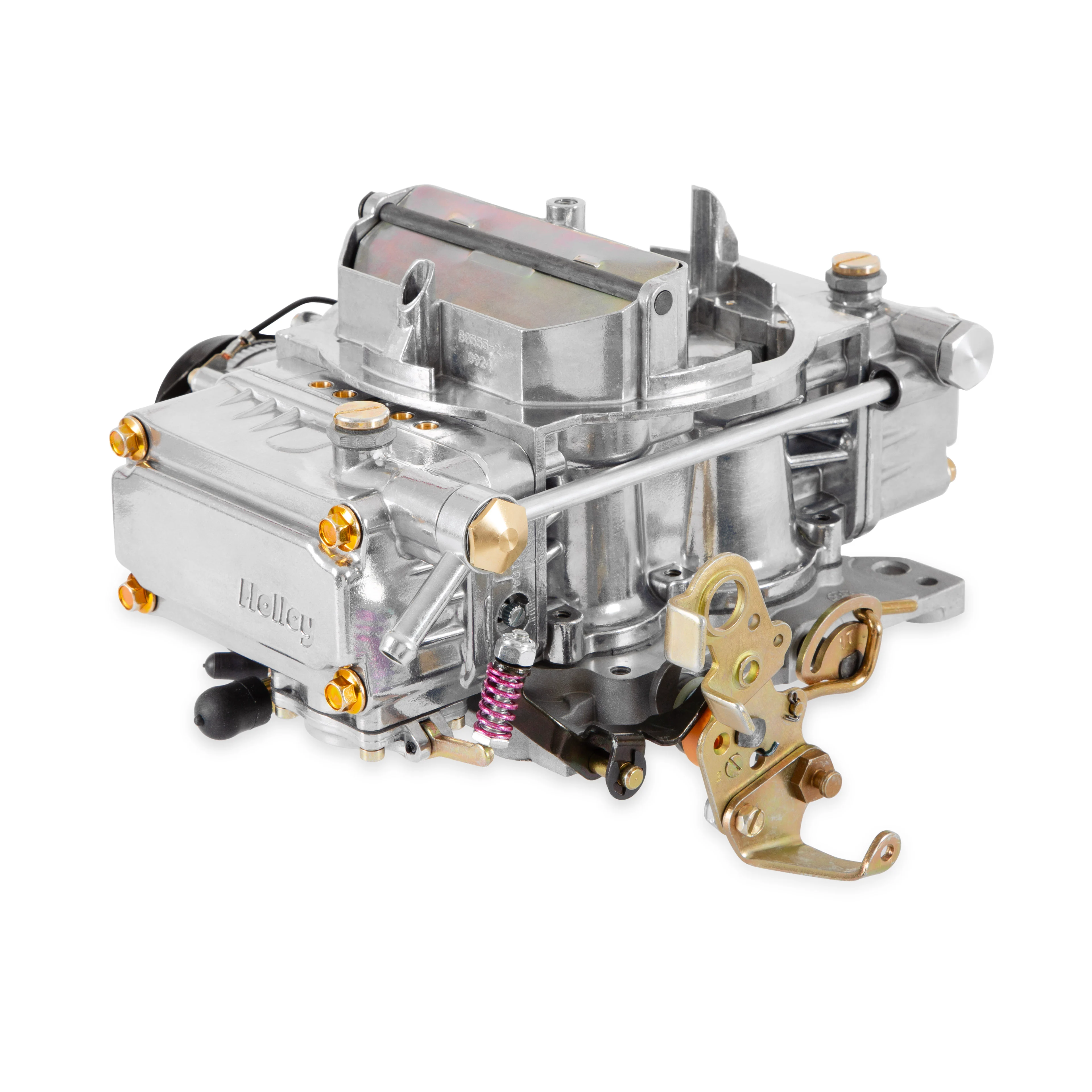

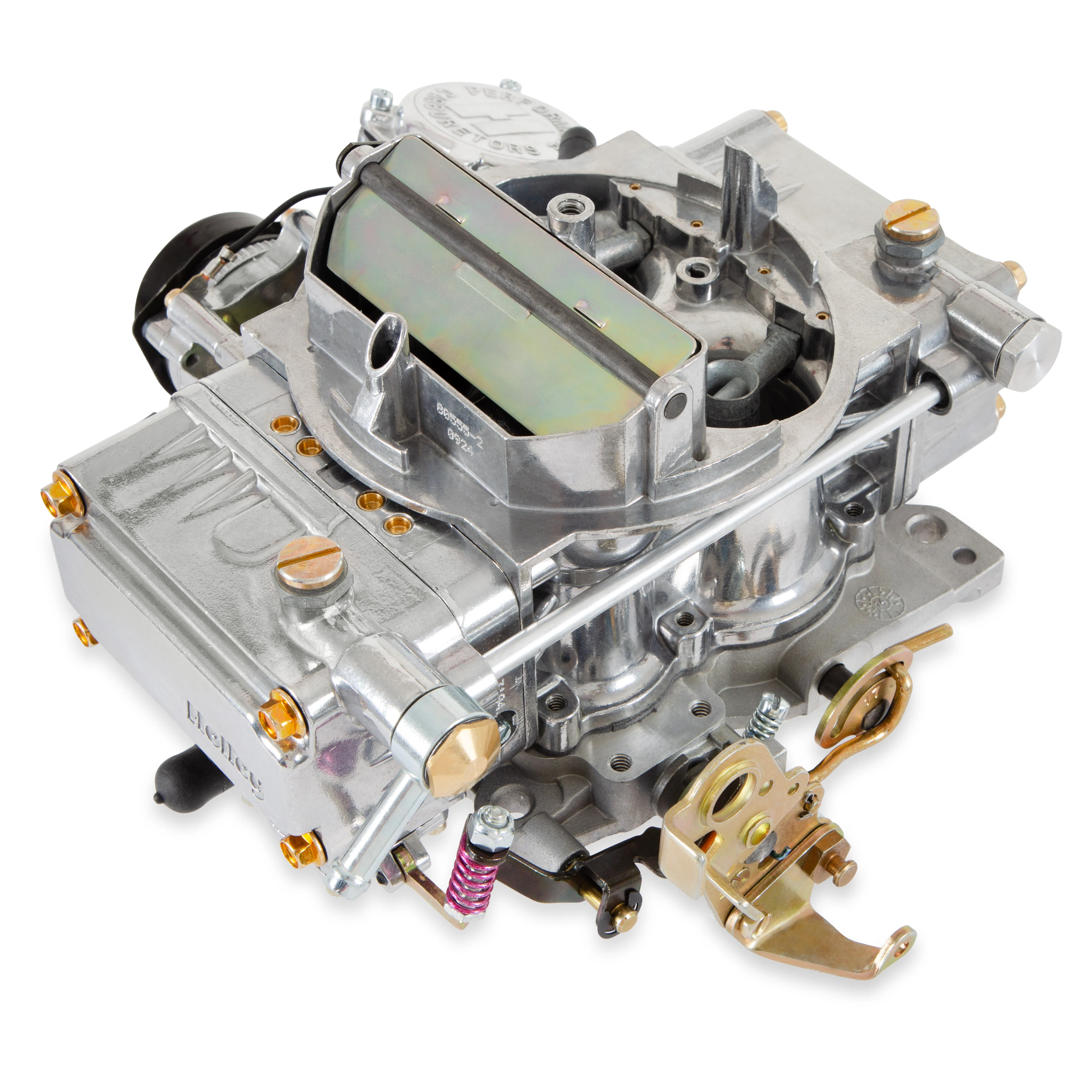

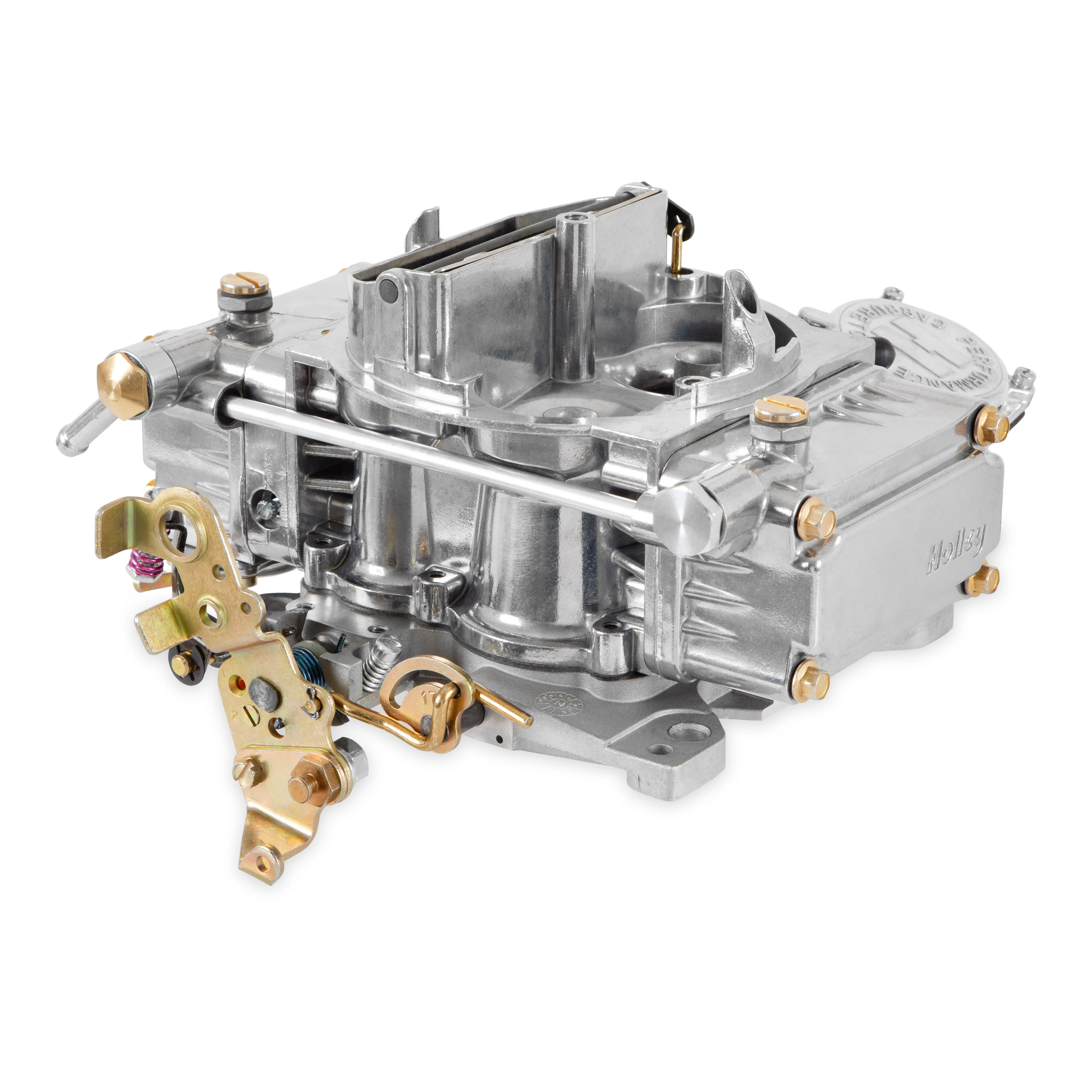

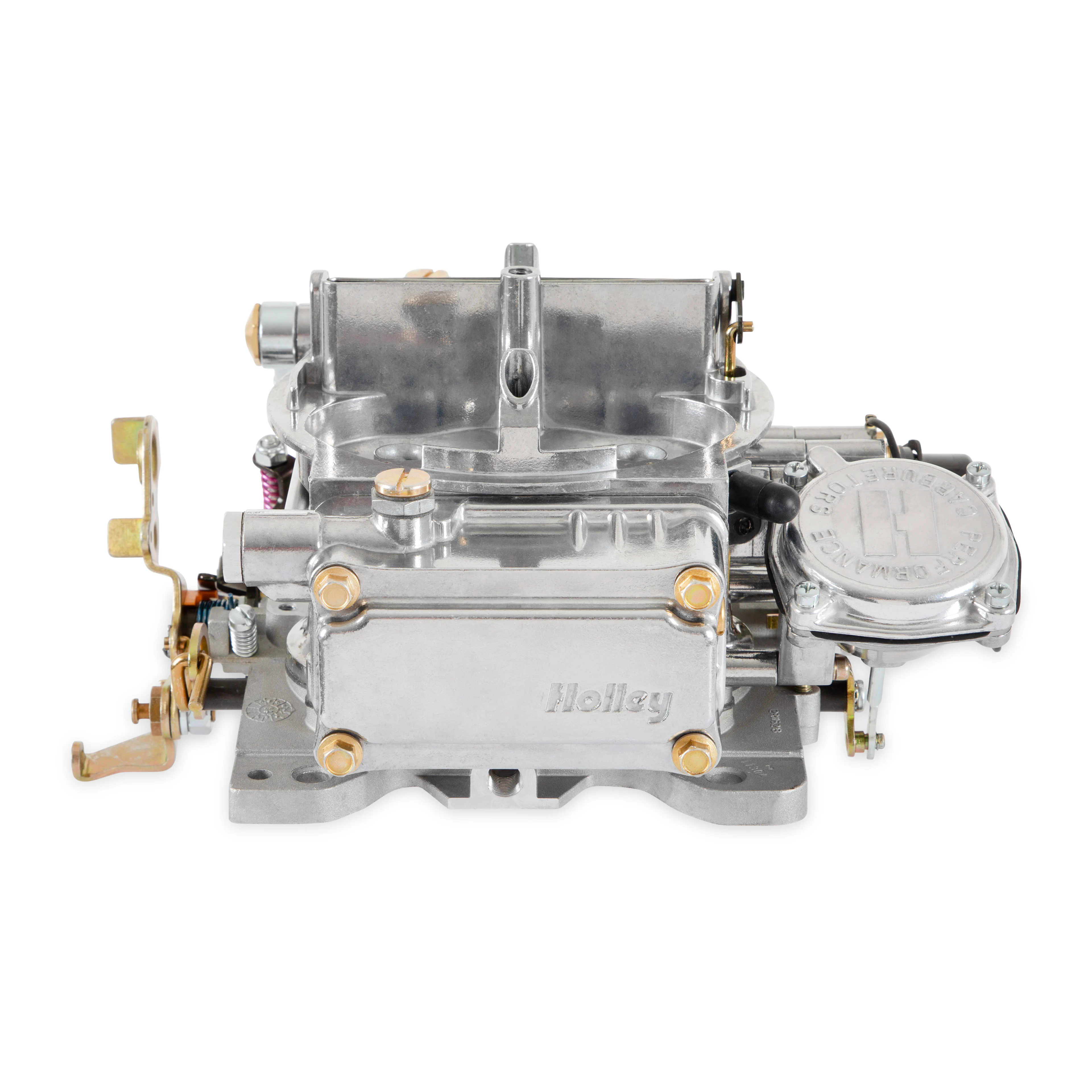

Holley 0-80555S - Carburetor. Quadra-Jet 4175. 650 CFM. Electric Choke

Do you like the tunability Holley's modular carbs, but need to simply replace a Q-jet? The spread bore bolt pattern of the 0-80555S lets you do just that. It has vacuum secondaries and electric choke, so it is useable on a wide variety of vehicles and its single fuel inlet that is in the standard Q-jet location makes it easy to bolt on. Don't trust your performance to just anyone, Holley is the only modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's.

  • Shiny finish
  • Performance replacement for Q-Jet carbs (spread bore bolt pattern)
  • Universal calibration for easy bolt-on performance
  • Factory preset electric choke for easy startups
  • Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
  • Single feed fuel inlet for easy installation
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
DETAILS
Barrel:
4
CFM:
650
Carburator Setup:
Single-Carburator
Choke:
Electric
Color/Finish:
Shiny
Emission:
Without EGR
Flange:

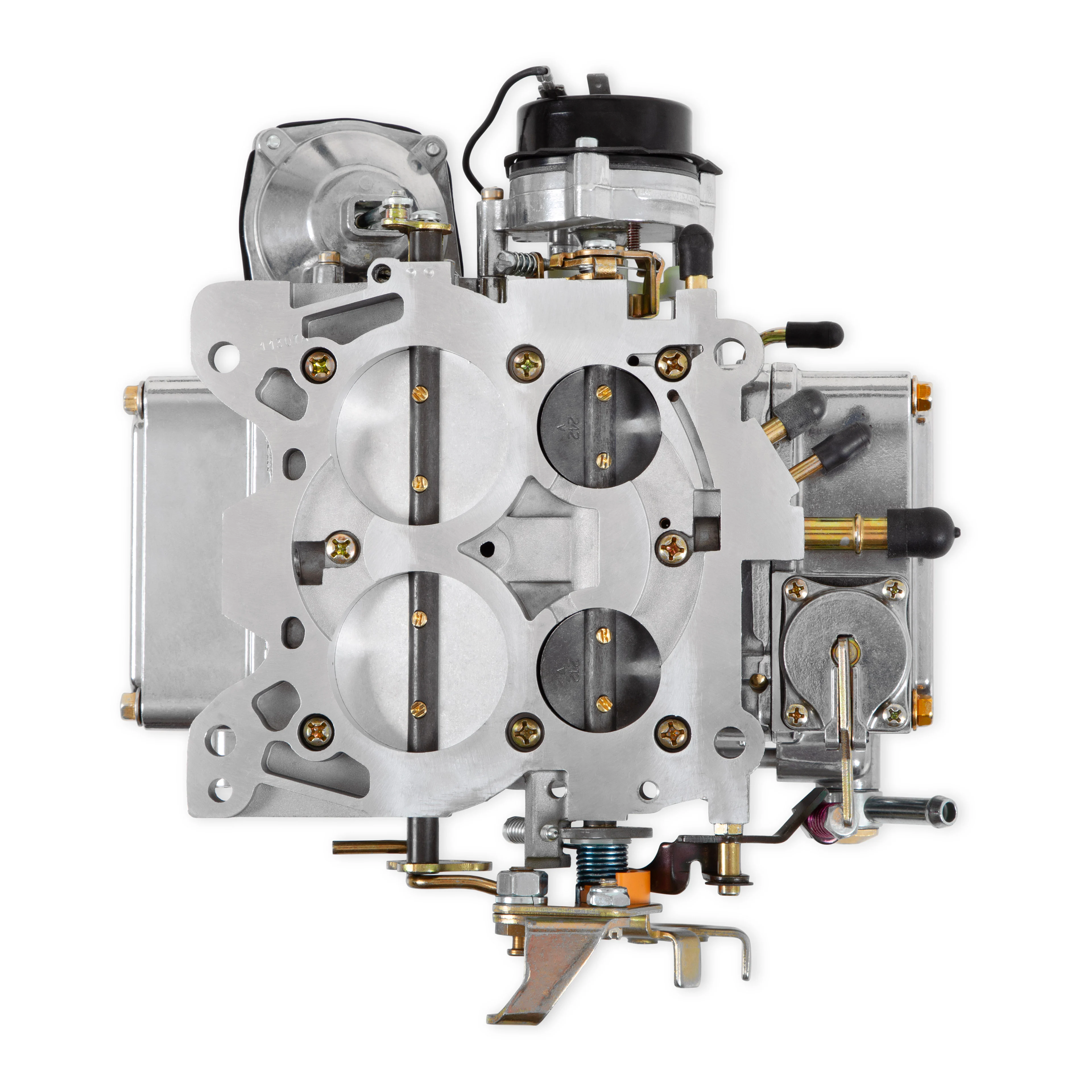

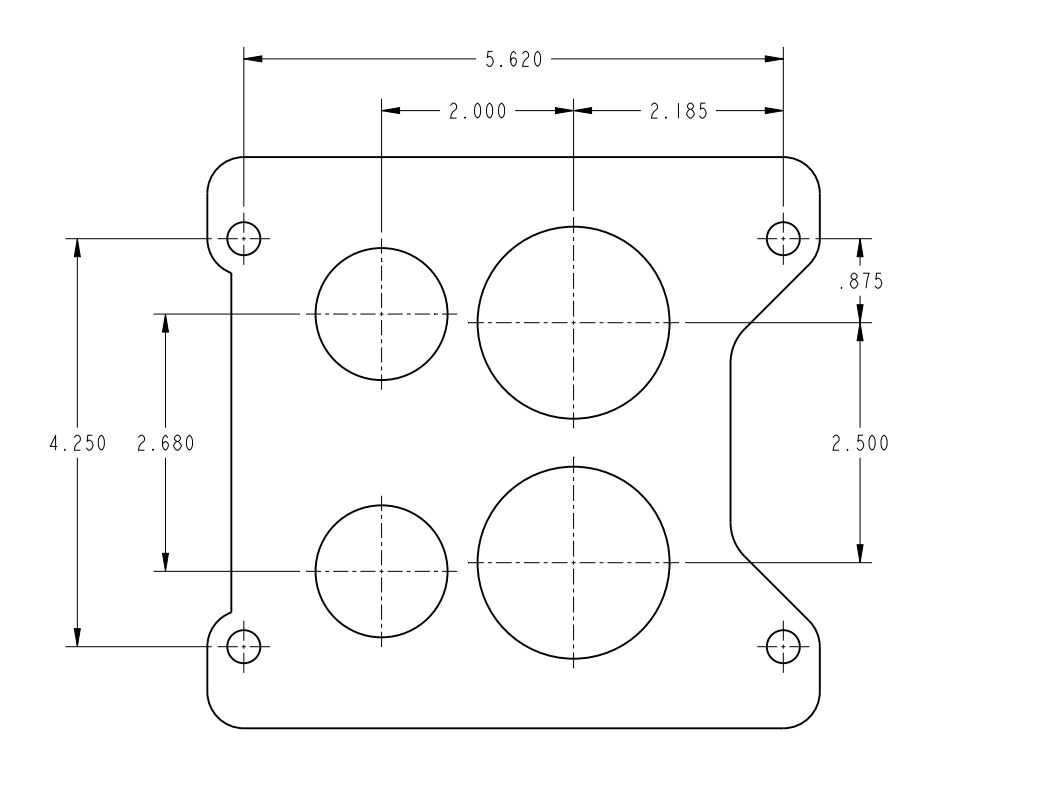

Spread Bore
Inlet Quantity:
Single
Notes:
Primary Main Jet: 62, Primary Power Valve: 6.5, Primary Pump Nozzle Size: 40
Secondaries:
Vacuum
Usage:
Street
Available downloads:
Download instructions

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • ***The 0-80555S is a Model 4175 designed to fit GM spread bore passenger car and light truck applications. It is not compatible with Ford or Chrysler Spread bore applications. The 0-80555S is not recommended for any RV applications. A carburetor spacer could be required to clear certain components on stock applications such as the EDL-8726.

    * The 0-80555S Replaces 0-80555C
