Carburetor, AVS2 Series, 500 CFM, Electric Choke
incl. vat
Only 3 in stock
Ready to ship, estimated delivery time: 1-3 workdays
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10

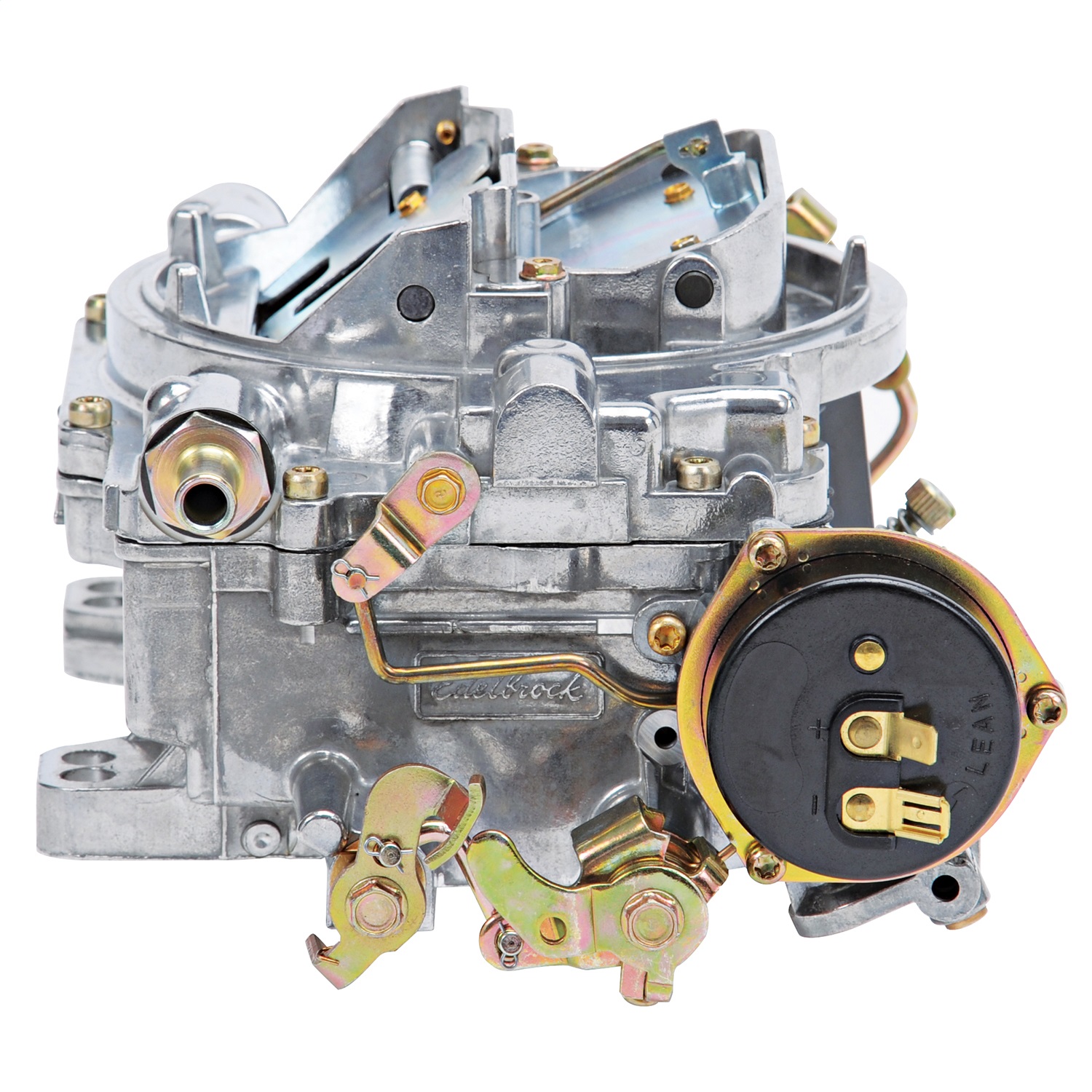

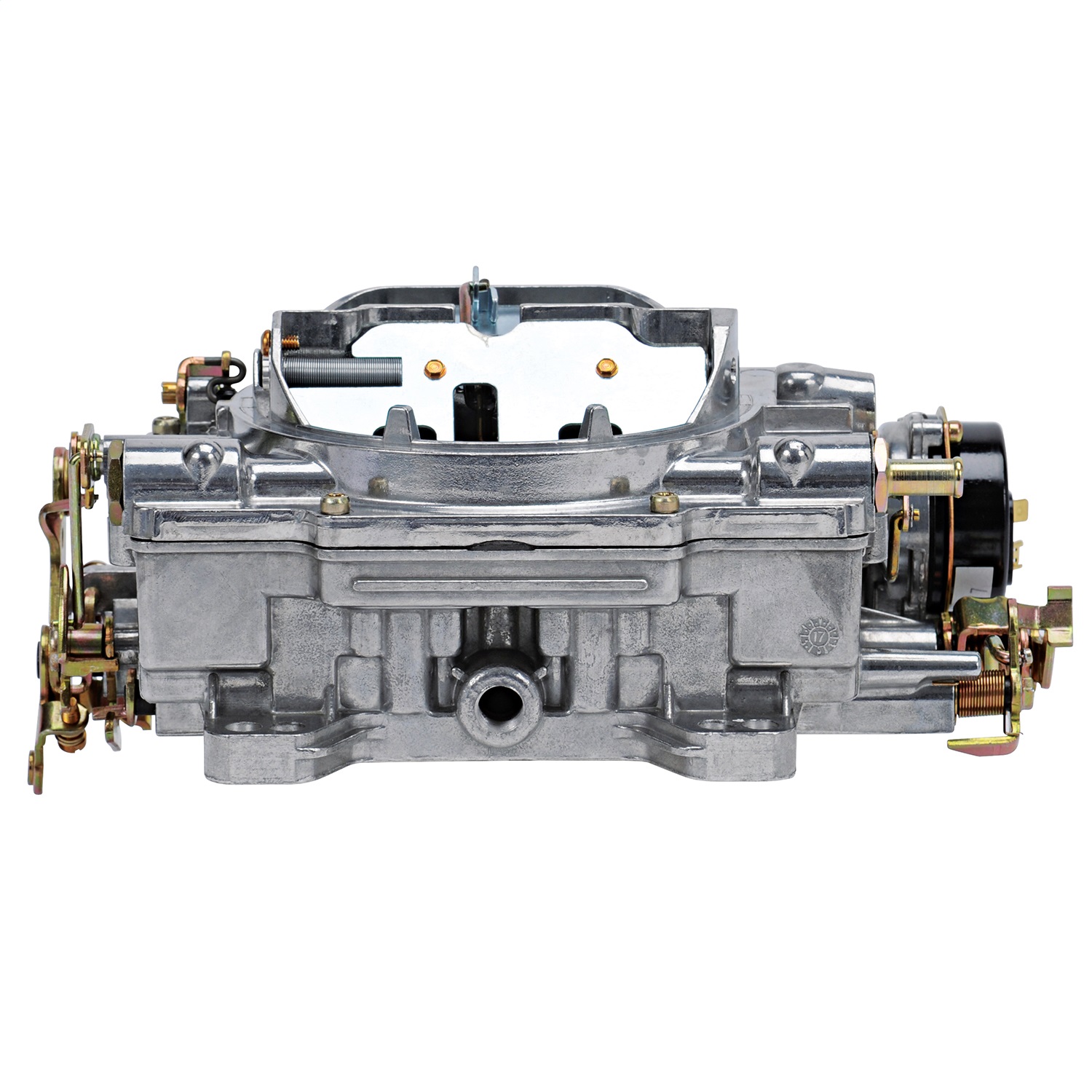

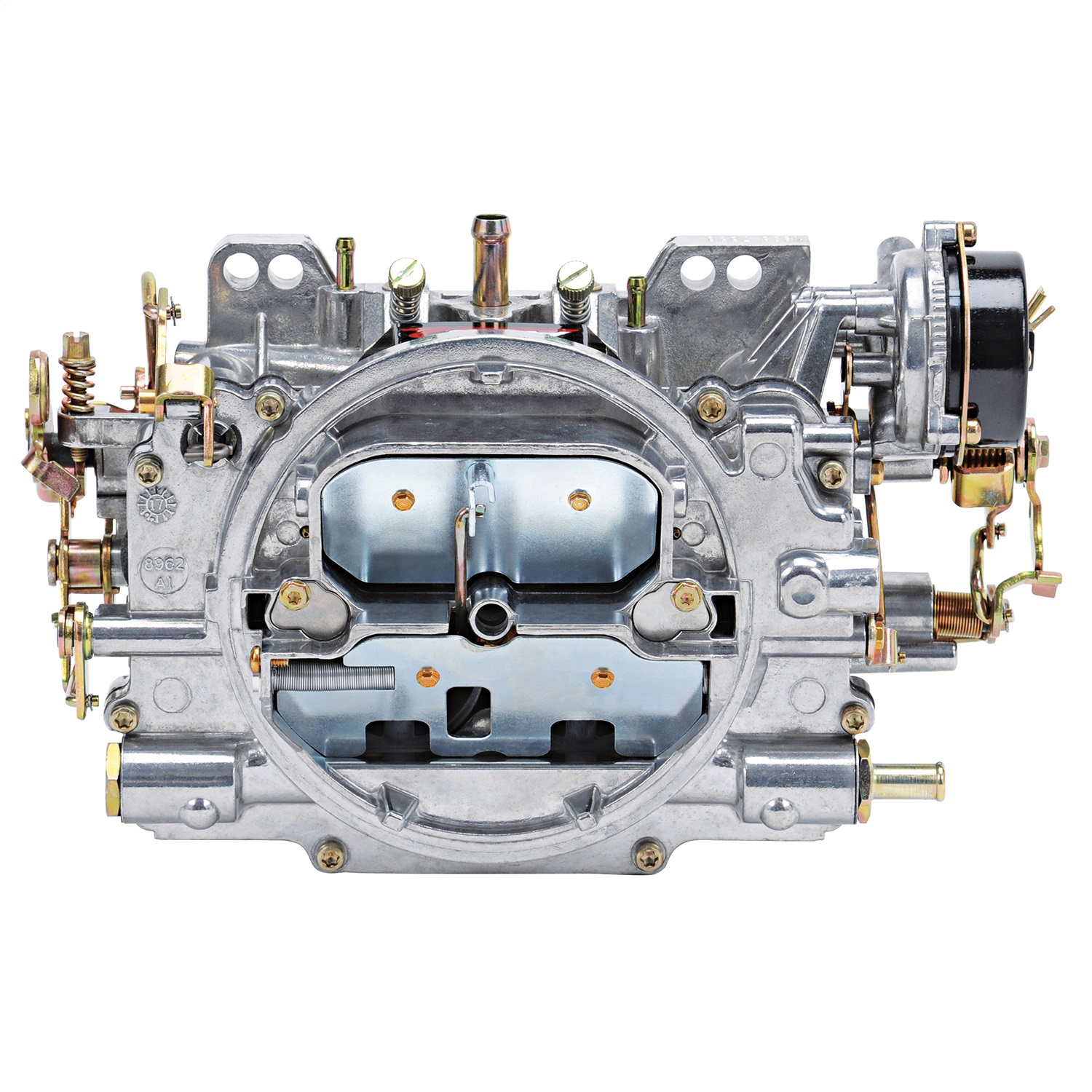

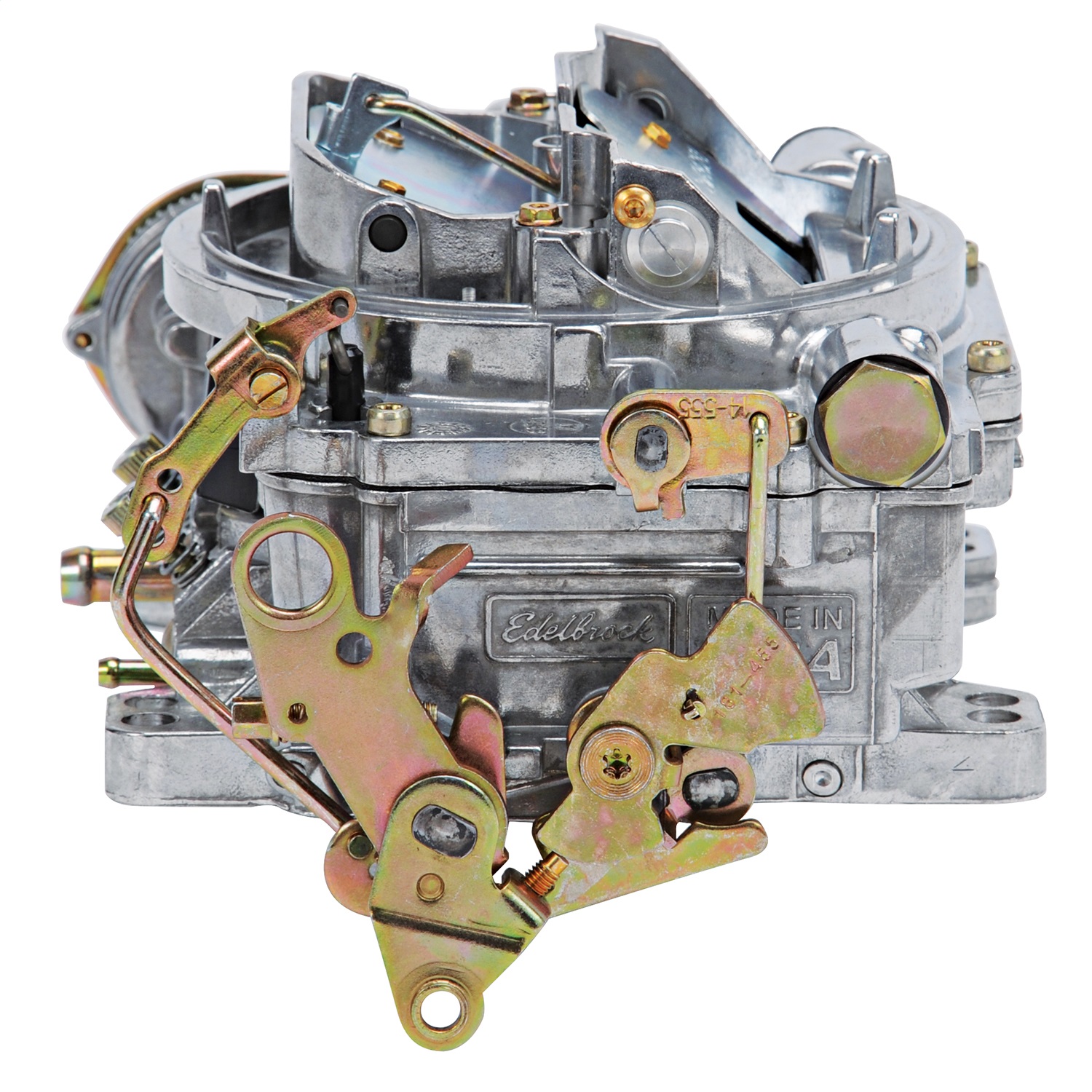

The Edelbrock #1901 AVS2 Series 500 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance.
Calibrated for ultimate performance
#1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carburetor Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
DETAILS
| Barrel: | 4 |
|---|---|
| CFM: | 500 |
| Carburator Setup: | Single-Carburator |
| Choke: | Electric |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Flange: | Square Bore |
| Inlet Quantity: | Dual, Single |
| Secondaries: | Air valve |
| Usage: | Performance, Street |
LINKS
There is no documentation for this product.
No video avaliable.
Login
- Thunder Series AVS2 Carburetors will work with Ford automatic overdrive transmission (AOD) when used with Lokar bracket SRK-4000
- Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.
- The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer warranty
The Edelbrock #1901 AVS2 Series 500 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance.
Calibrated for ultimate performance
#1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carburetor Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
DETAILS
| Barrel: | 4 |
|---|---|
| CFM: | 500 |
| Carburator Setup: | Single-Carburator |
| Choke: | Electric |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Flange: | Square Bore |
| Inlet Quantity: | Dual, Single |
| Secondaries: | Air valve |
| Usage: | Performance, Street |
LINKS
There is no documentation for this product.
No video avaliable.
Login
- Thunder Series AVS2 Carburetors will work with Ford automatic overdrive transmission (AOD) when used with Lokar bracket SRK-4000
- Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.
- The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer warranty
