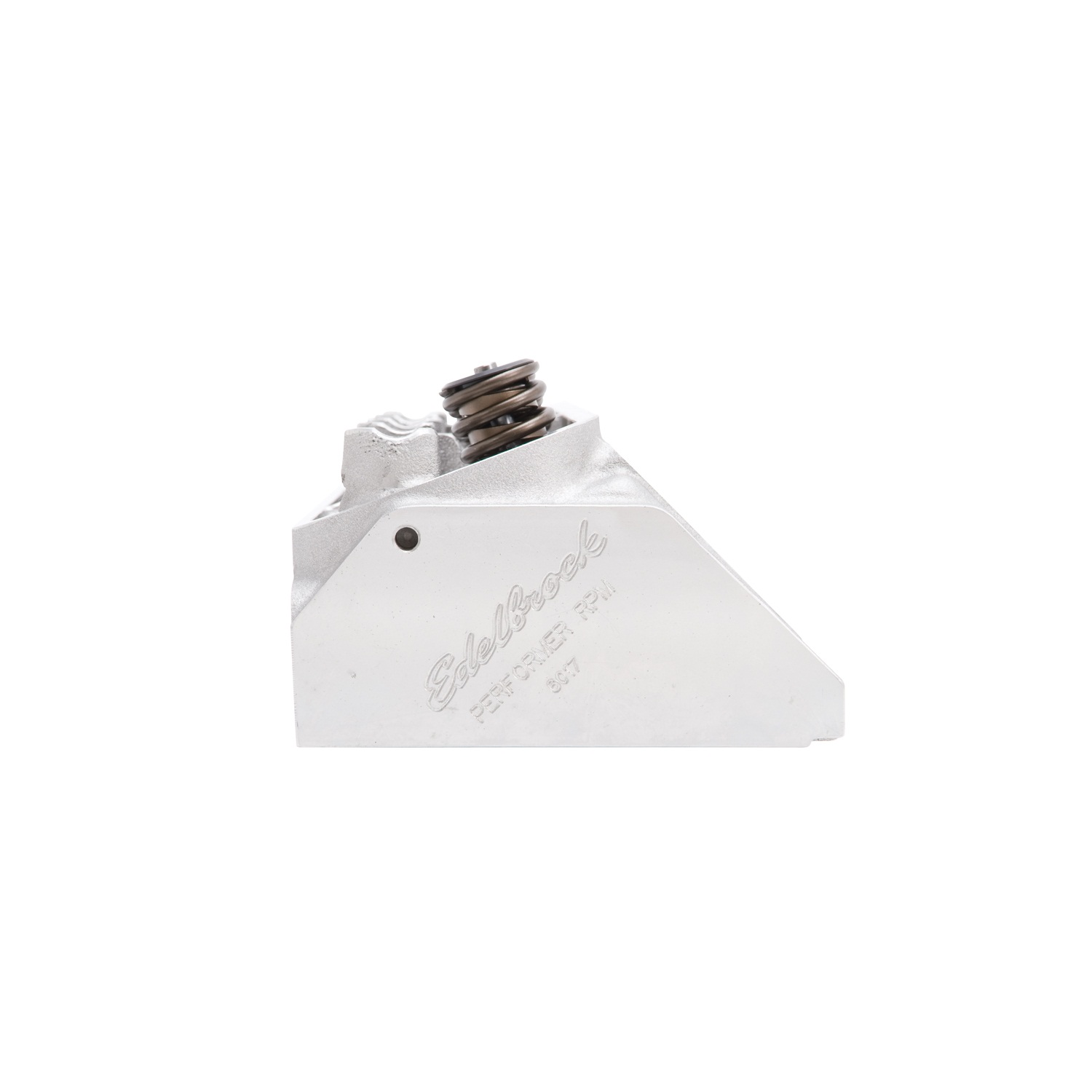

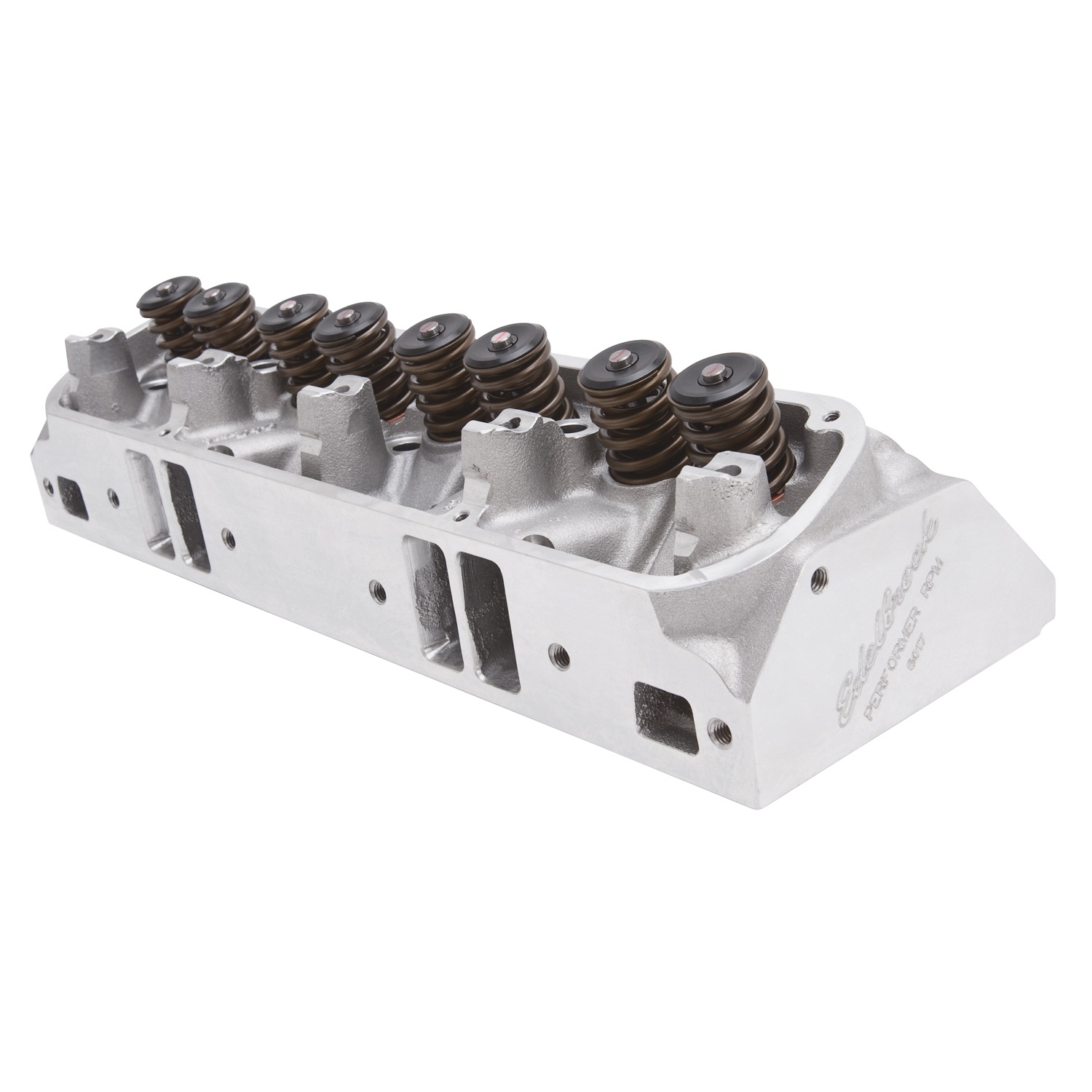

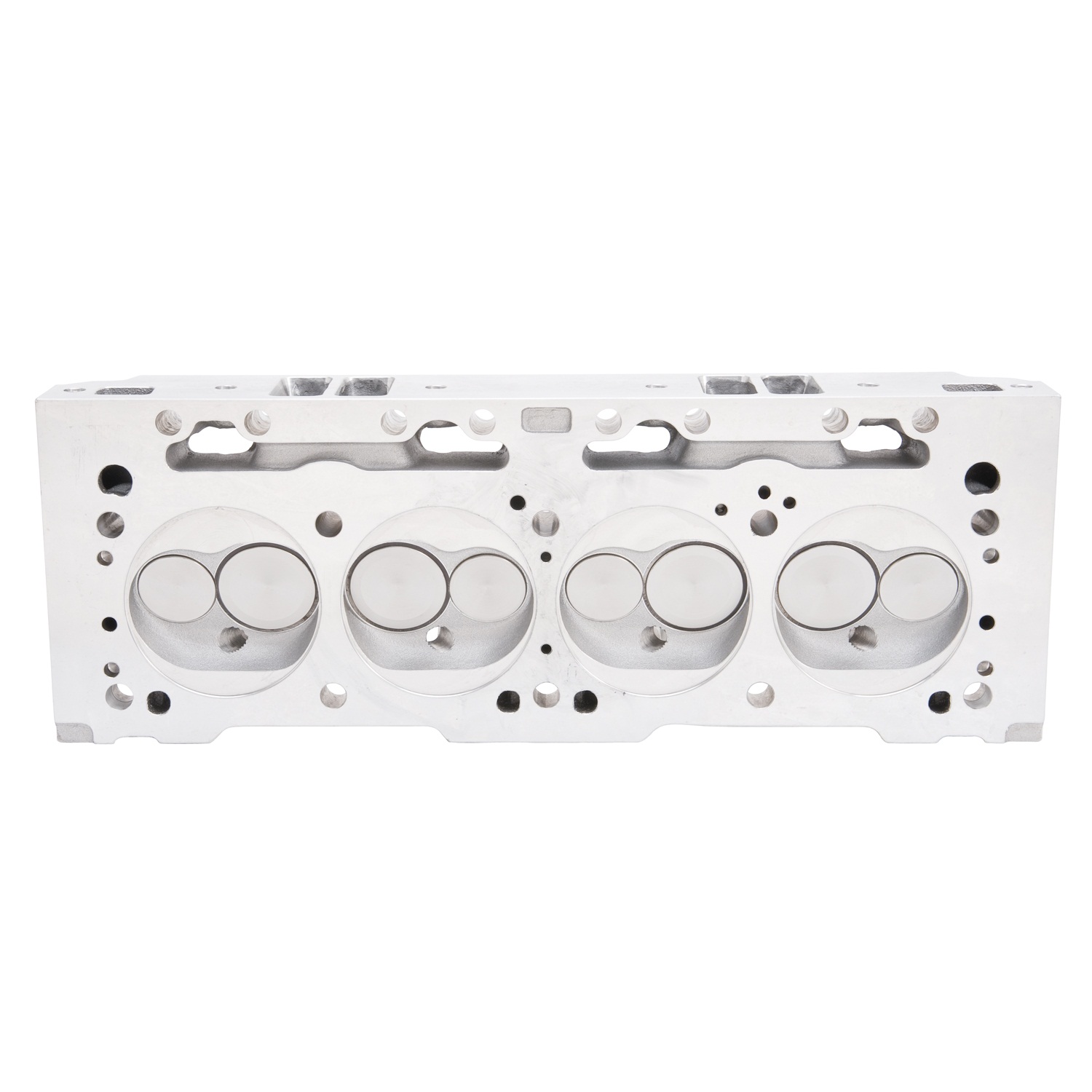

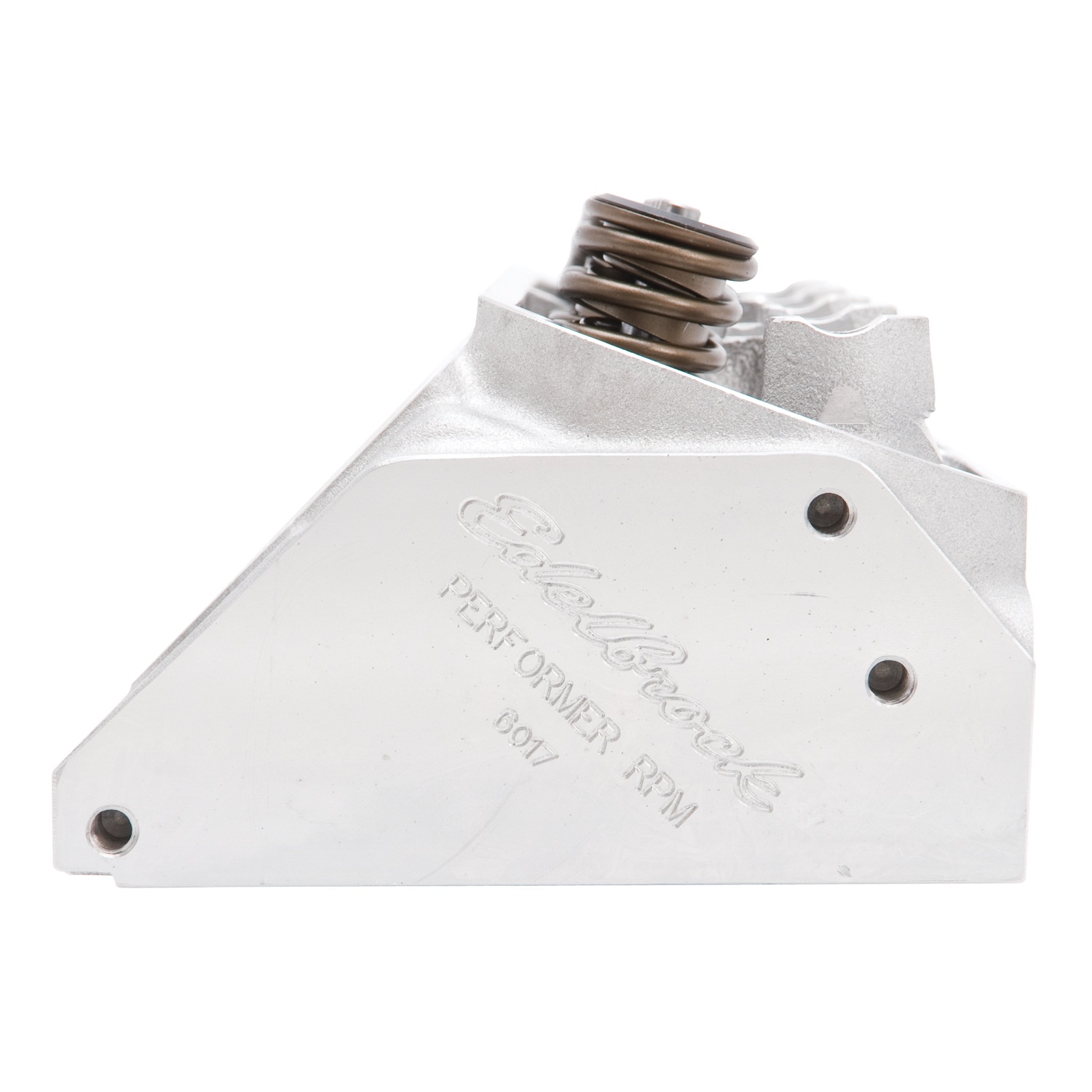

Edelbrock 60175 - Cylinder Head, Chrysler 340, Performer RPM, 65cc, Hydraulic Roller

The Edelbrock #60175 Performer RPM head is designed for use with non-emission 1968-73 Chrysler 340 c.i.d. engine applications. The Edelbrock #60175 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.

  • Out-of-the-box bolt-on performance
  • Valves promote excellent flow for streetable power
  • Engine swaps
DETAILS
Camshaft Type:
Hydraulic Roller
Car/Engine:
Chrysler Small Block
Chamber Volume:
65cc
Engine Notes:
318-360 cui, 340 cui
Exhaust Port Location:
Standard
HP Range:
350-450
Max. Lift:
0.575''
Port Volume Intake / Exh:
171cc / 77cc
Serie:
Performer RPM
Valve Sizes Intake / Exh:
2.02'' / 1.60''
Valve Spring Diameter:
1.46''
Available downloads:
Download instructions

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS
  • Designed for non-emission 1968-73 340 c.i.d. Chryslers, RPM Chrysler 340 cylinder heads have chambers machined .060" for clearance with early high-compression engines
  • Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft
  • The special valvetrain in 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets.
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with a flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".

Edelbrock 60175 - Cylinder Head, Chrysler 340, Performer RPM, 65cc, Hydraulic Roller

The Edelbrock #60175 Performer RPM head is designed for use with non-emission 1968-73 Chrysler 340 c.i.d. engine applications. The Edelbrock #60175 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.

  • Out-of-the-box bolt-on performance
  • Valves promote excellent flow for streetable power
  • Engine swaps
DETAILS
Camshaft Type:
Hydraulic Roller
Car/Engine:
Chrysler Small Block
Chamber Volume:
65cc
Engine Notes:
318-360 cui, 340 cui
Exhaust Port Location:
Standard
HP Range:
350-450
Max. Lift:
0.575''
Port Volume Intake / Exh:
171cc / 77cc
Serie:
Performer RPM
Valve Sizes Intake / Exh:
2.02'' / 1.60''
Valve Spring Diameter:
1.46''

Available downloads:
Download instructions

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS
  • Designed for non-emission 1968-73 340 c.i.d. Chryslers, RPM Chrysler 340 cylinder heads have chambers machined .060" for clearance with early high-compression engines
  • Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft
  • The special valvetrain in 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets.
  • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with a flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".
