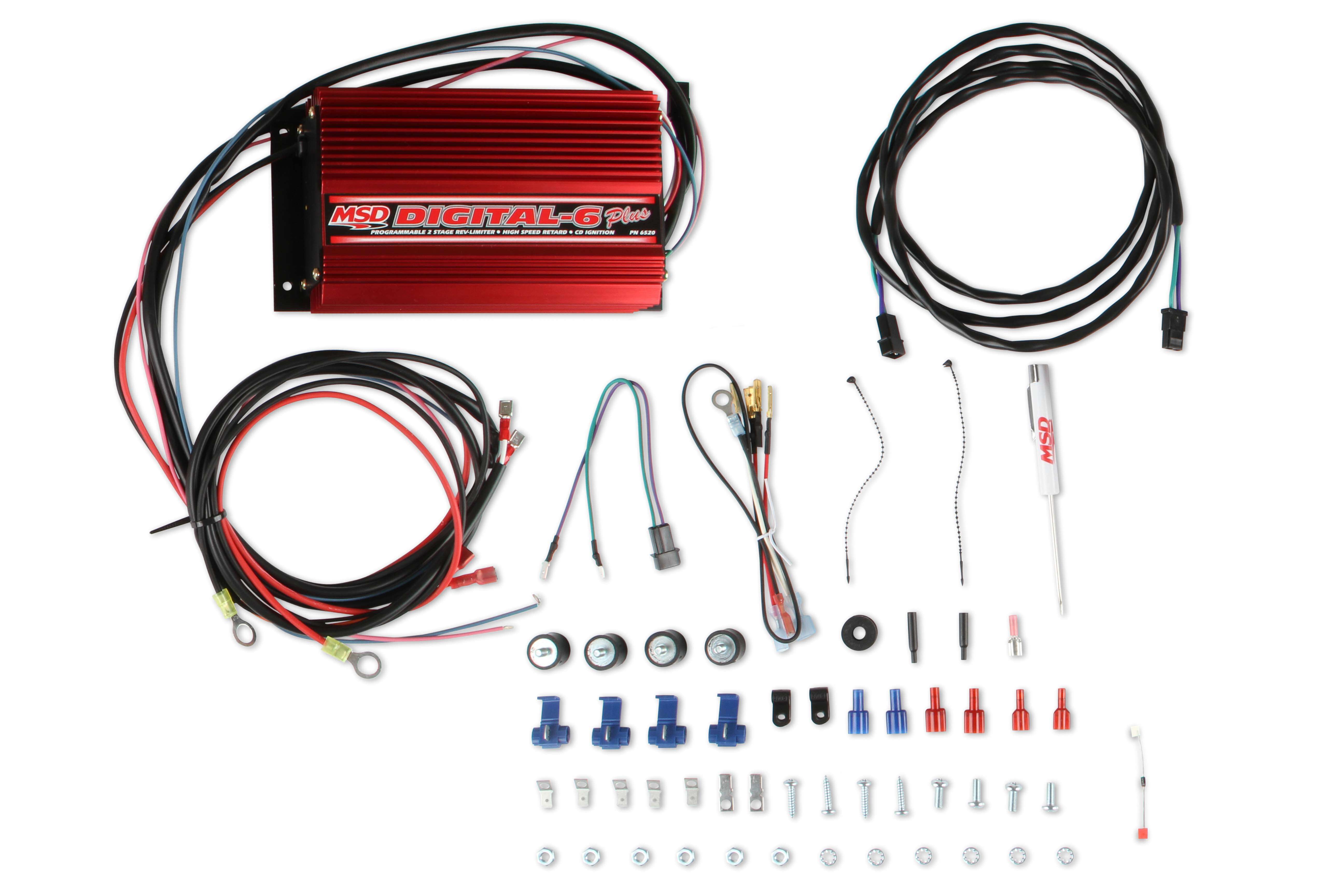

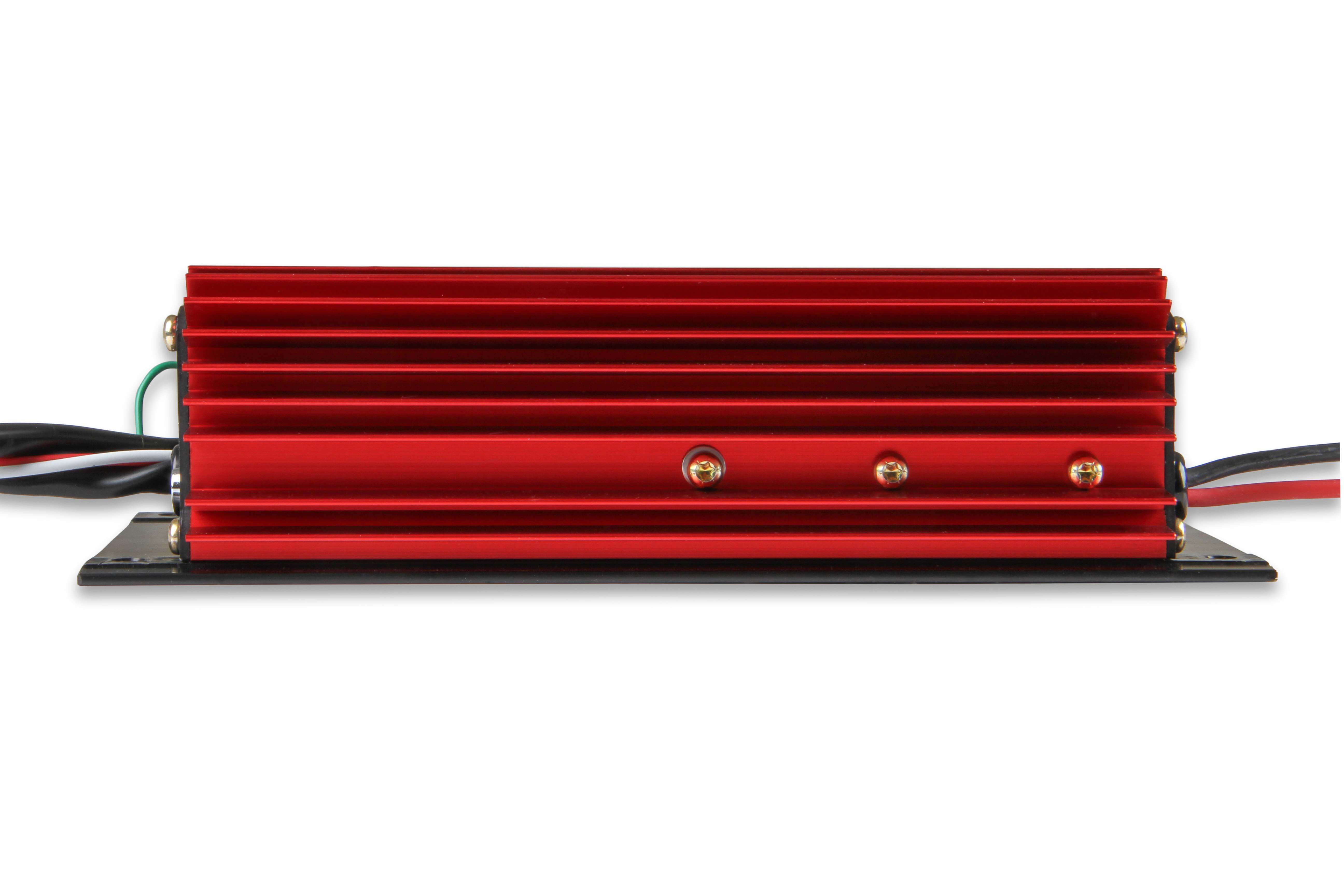

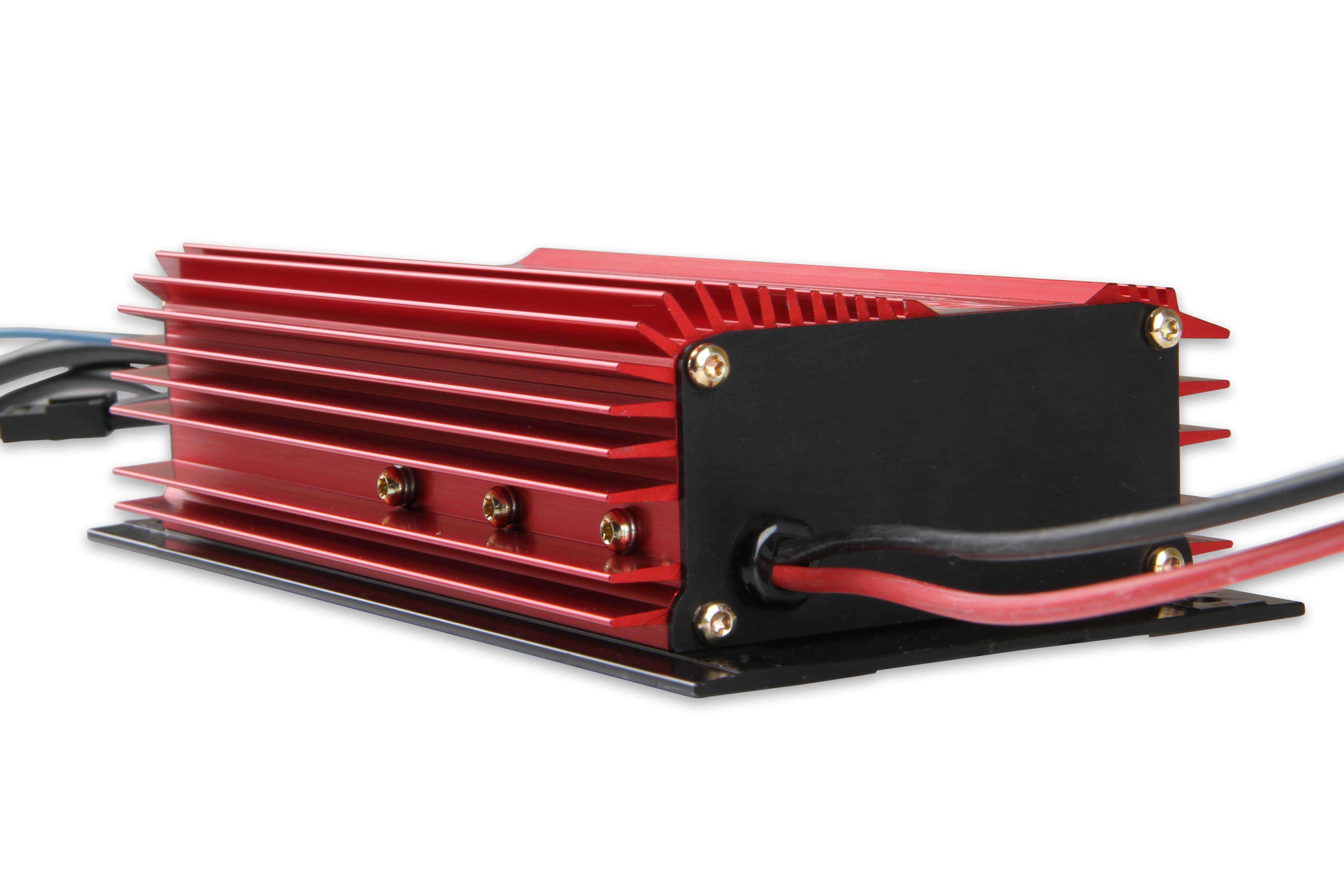

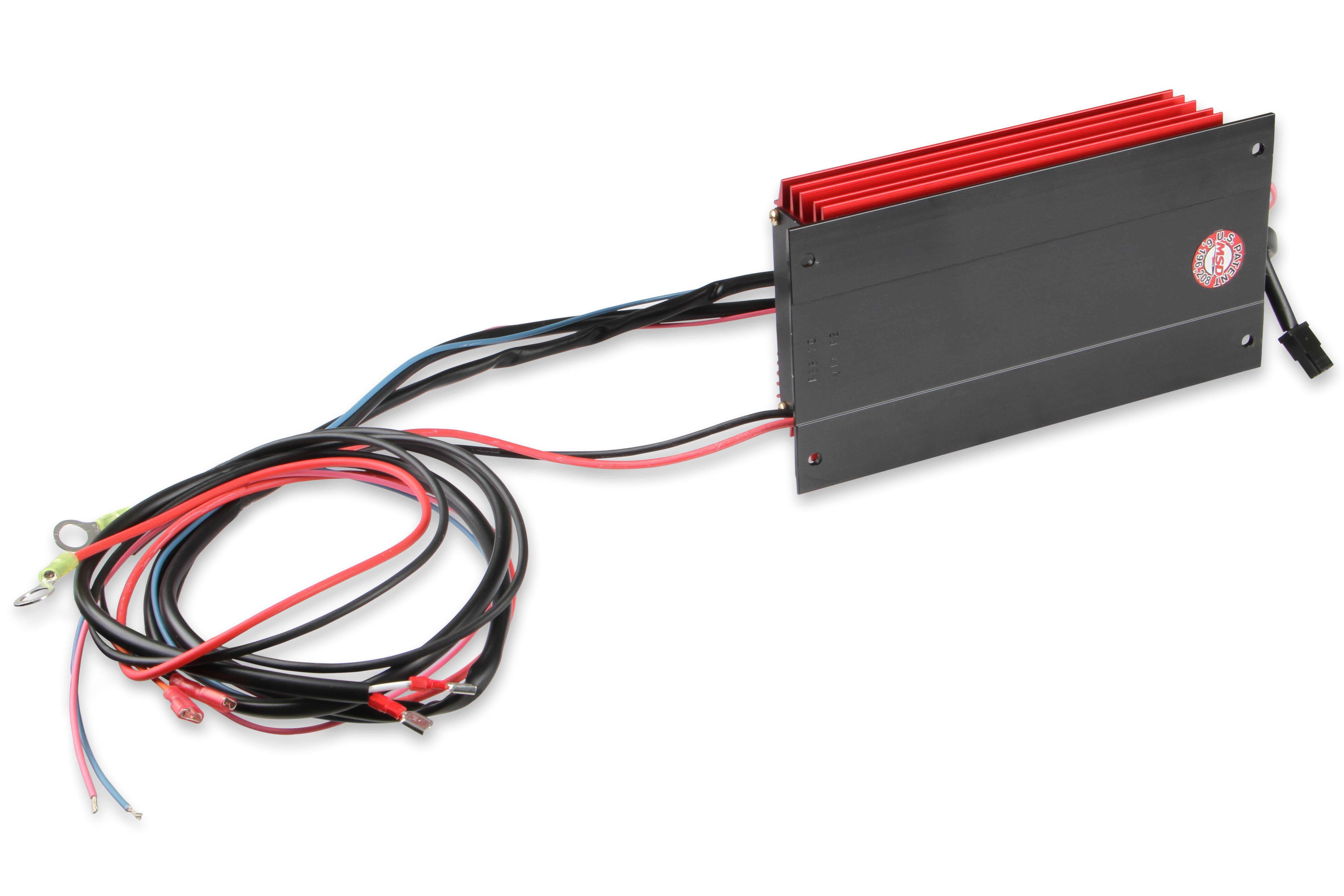

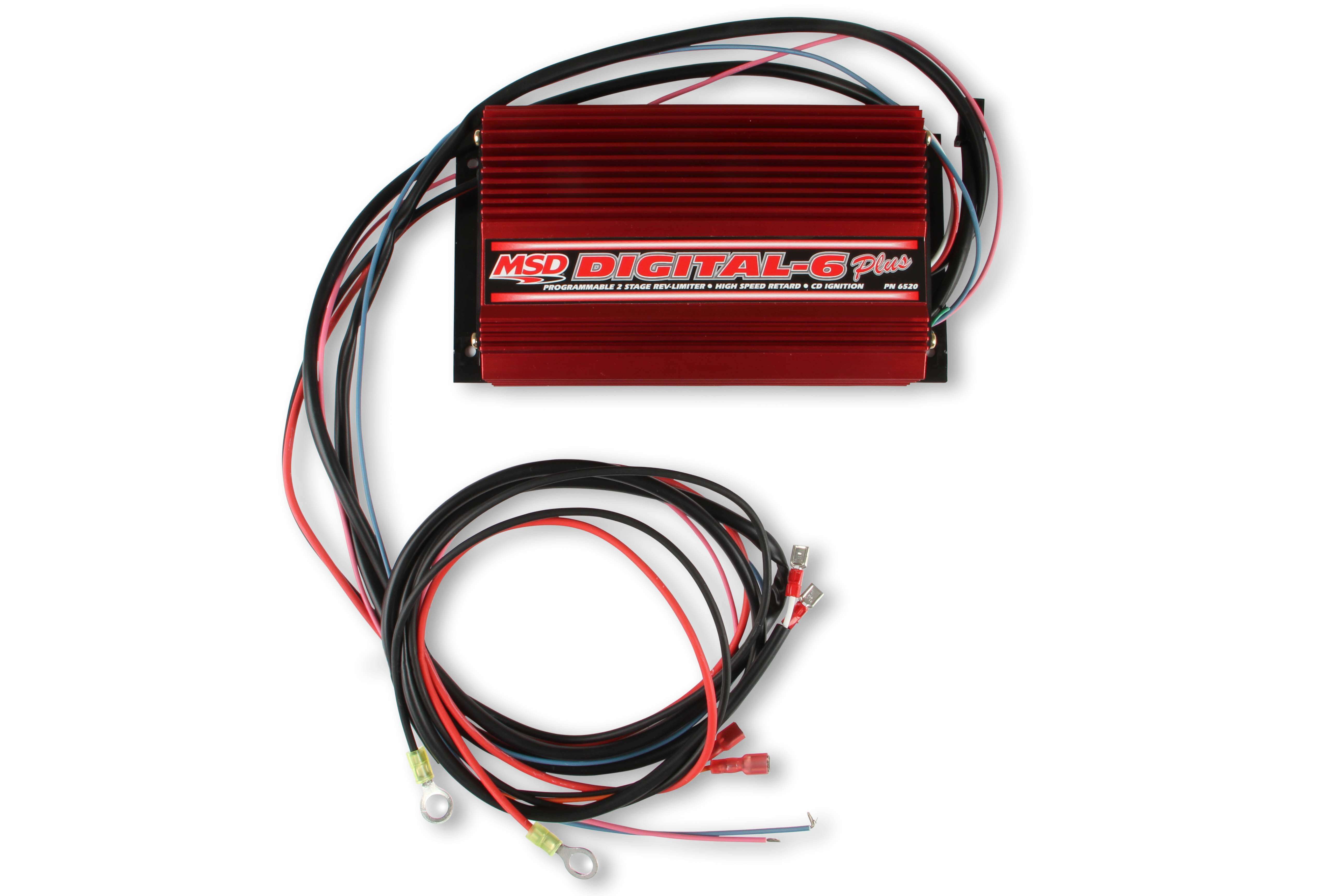

MSD Performance 6520 - Digital 6-Plus Ignition Control Box. Start & Stage retard
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications. Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection. The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines. The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).

  • Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
  • Single stage retard for nitrous and top-end performance.
  • Start retard eases pressure on the starter, flywheel and engine.
  • Adjustable magnetic pickup compensation produces accurate trigger signals.
  • LED display warns of trigger signal problems or faulty charging system.
DETAILS
Color/Finish:
Red
Current Draw:
.7 Amp per 1,000 RPM
Primary Voltage:
535 Volts
RPM Range:
12.000 RPM with 14.4 Volts
Rev Limiter:
Yes
Secondary Voltage:
45.000
Spark Energy:
135 mJ Per Spark
Spark Series Duration:
20° Crankshaft Rotation
Usage:
Hi-Performance, Performance
Voltage Required:
12-18 Volts, Negative Ground
Available downloads:
Download instructions

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


There are no installation notes for this product.
