Performer Manifold, Chevrolet Small Block, 1987-95 Cast Iron Heads
incl. vat
Only 1 in stock
Ready to ship, estimated delivery time: 1-3 workdays
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10

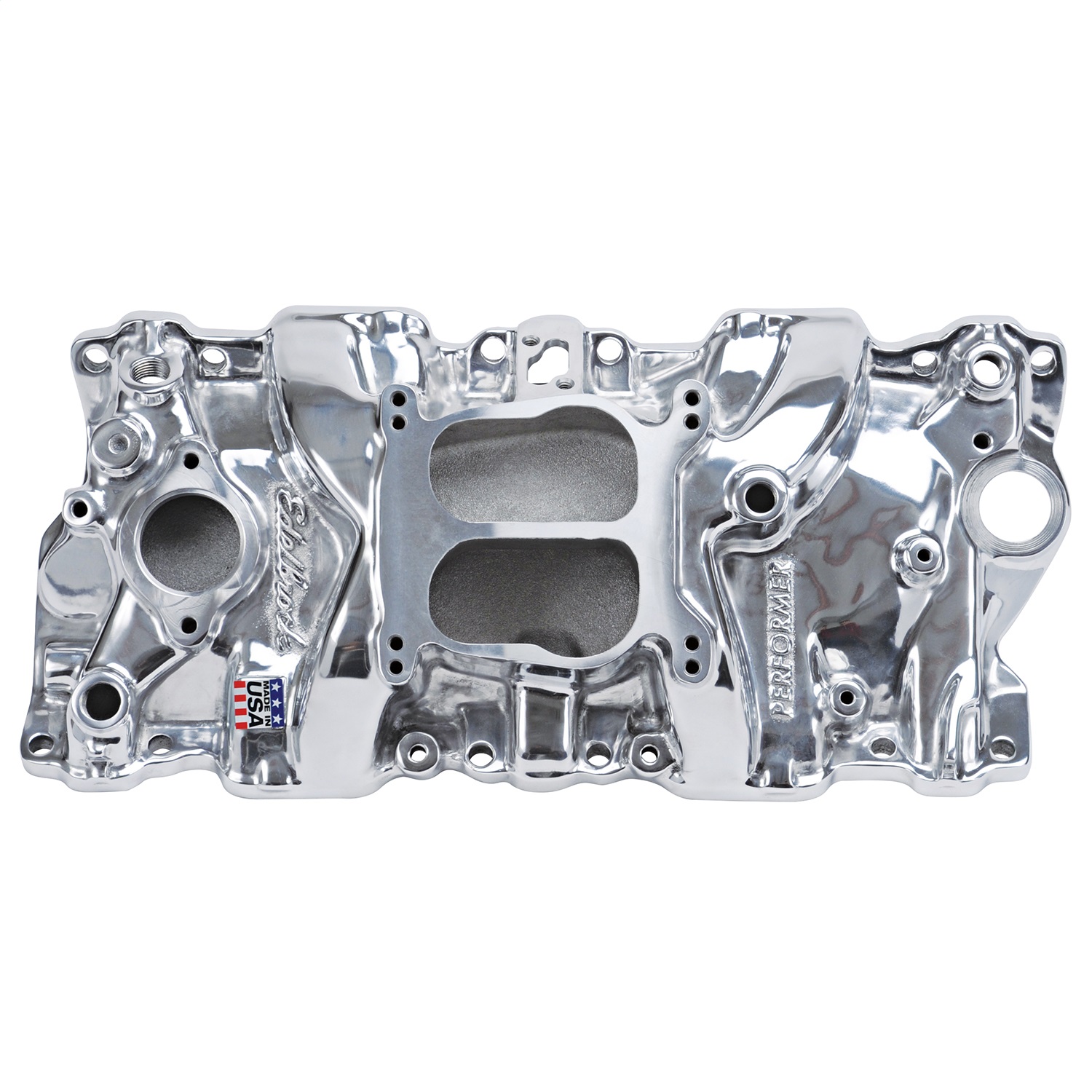

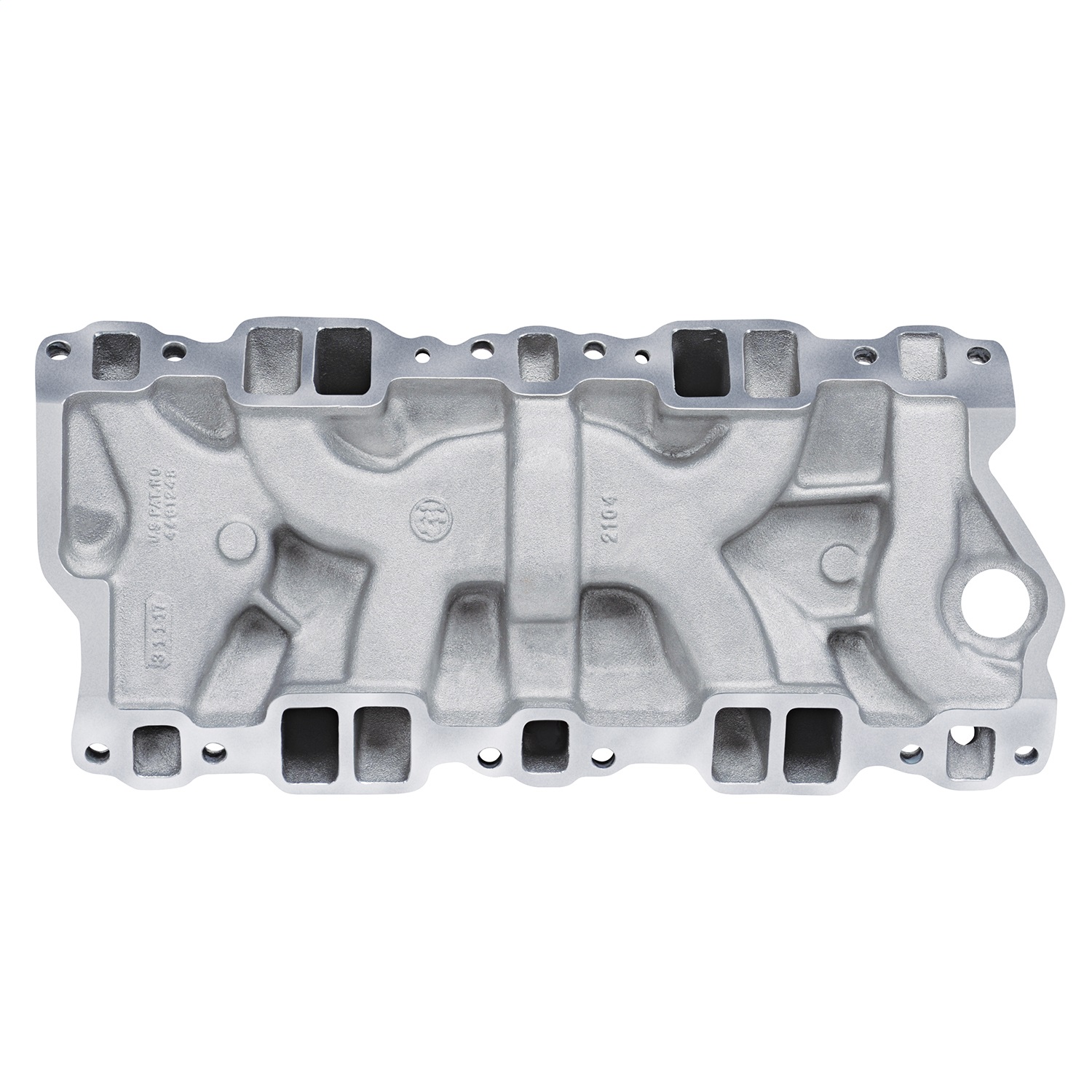

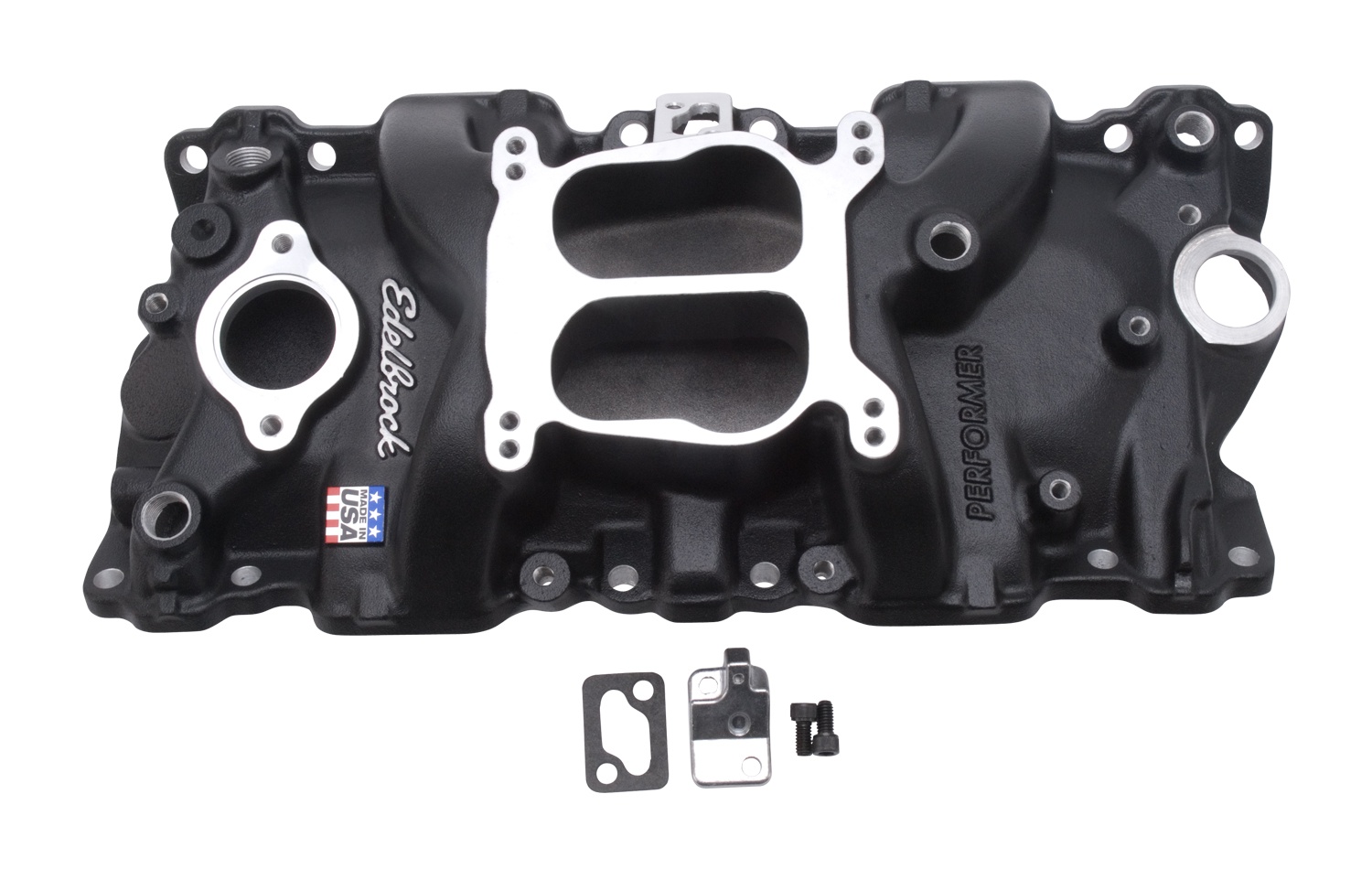

Edelbrock Part # 2104 Performer intake manifold is designed for street 262-400 c.i.d. Chevy V8's that have heads with canted center bolt holes, 1987-1995. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. For 1987-95 stock aluminum heads use #2101.
- For idle to 5500 RPM street-driven performance
- Dual-plane low-rise intake with 180-degree firing order
- Patented runner design ensures broad torque curve
- Excellent throttle response and mid-range power
- Accepts late-model choke, water neck and HEI ignition
- Accepts A/C and alternator
- Accepts exhaust heated chokes
- Engine swaps
DETAILS
| Car/Engine: | Chevrolet Small Block |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 262-400 cui - 1987-95 Cast Iron Heads |
| Flange: | Spread Bore , Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | Idle-5500 |
| Serie: | Performer |
| Usage: | Street |
LINKS
No video avaliable.
Login
- Manifold ht: A-3.50", B-4.60"
- Carburetor pad height: 4.05"
- Carburetor recommendations: OEM 4-Bbl, Use choke rod # 9171. Edelbrock AVS2 Series or Performer Series Carb 500-650cfm. Bracket # 8031 or # 8036 for 1972-1978.
- Camshaft Recommendations: #2102, #2103, #2208, #2209
- Port exit dimensions: 1.14" x 1.88"
- Recommended intake gasket: GM #10159409
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Choke plate # 8901 included
- Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Edelbrock Part # 2104 Performer intake manifold is designed for street 262-400 c.i.d. Chevy V8's that have heads with canted center bolt holes, 1987-1995. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. For 1987-95 stock aluminum heads use #2101.
- For idle to 5500 RPM street-driven performance
- Dual-plane low-rise intake with 180-degree firing order
- Patented runner design ensures broad torque curve
- Excellent throttle response and mid-range power
- Accepts late-model choke, water neck and HEI ignition
- Accepts A/C and alternator
- Accepts exhaust heated chokes
- Engine swaps
DETAILS
| Car/Engine: | Chevrolet Small Block |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 262-400 cui - 1987-95 Cast Iron Heads |
| Flange: | Spread Bore , Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | Idle-5500 |
| Serie: | Performer |
| Usage: | Street |
LINKS
No video avaliable.
Login
- Manifold ht: A-3.50", B-4.60"
- Carburetor pad height: 4.05"
- Carburetor recommendations: OEM 4-Bbl, Use choke rod # 9171. Edelbrock AVS2 Series or Performer Series Carb 500-650cfm. Bracket # 8031 or # 8036 for 1972-1978.
- Camshaft Recommendations: #2102, #2103, #2208, #2209
- Port exit dimensions: 1.14" x 1.88"
- Recommended intake gasket: GM #10159409
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Choke plate # 8901 included
- Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
