Performer Manifold, Ford FE 332-428
incl. vat
Only 1 in stock
Ready to ship, estimated delivery time: 1-3 workdays
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10

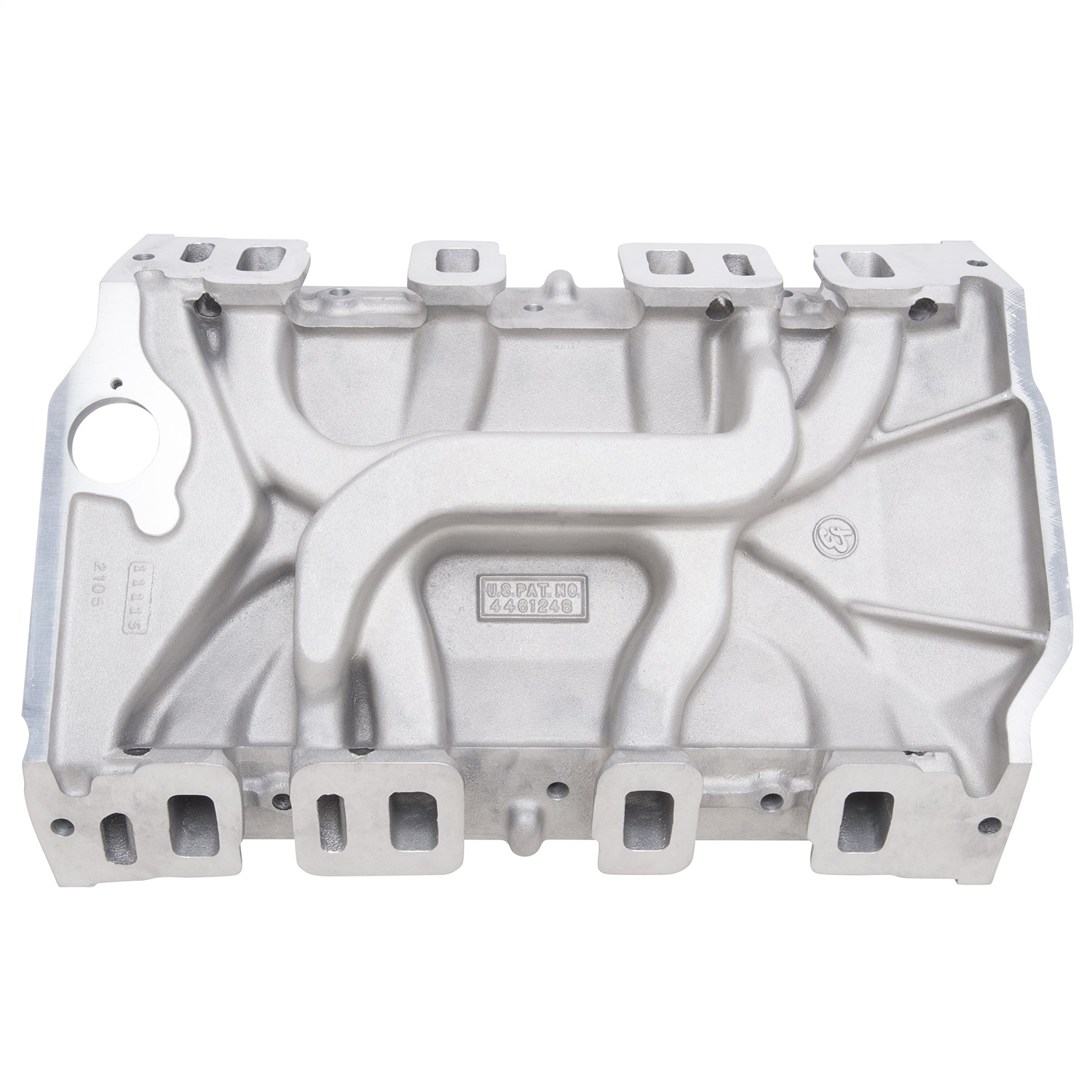

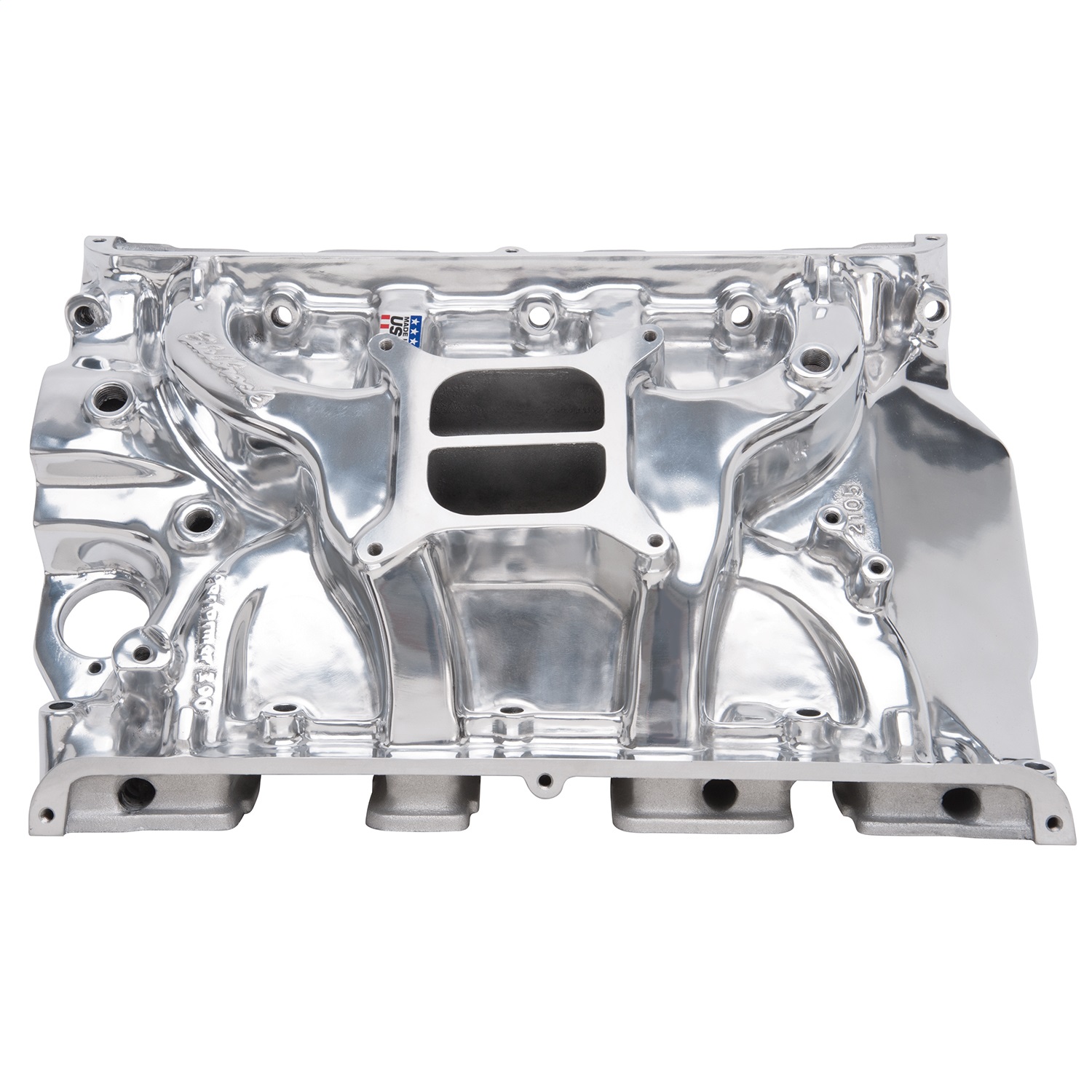

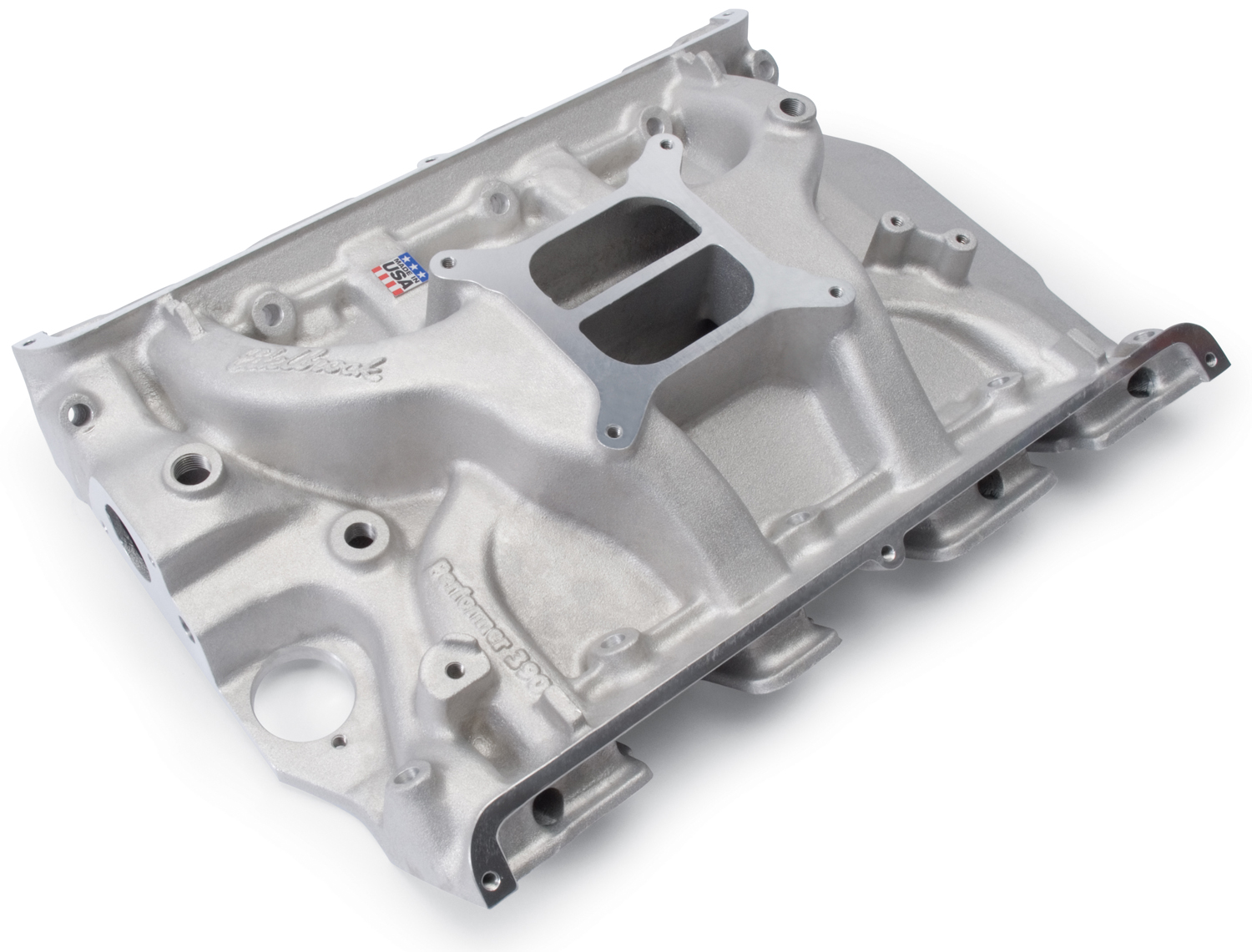

Edelbrock Part # 2105 Performer 390 intake manifold is designed for street 332-352-360-390-406-410-427-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR; will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's.
- For idle to 5500 RPM street-driven performance
- Dual-plane low-rise intake with 180-degree firing order
- Patented runner design ensures broad torque curve
- Excellent throttle response and mid-range power
DETAILS
| Car/Engine: | Ford FE |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 332-352-360-390-406-410-427-428 cui |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | Idle-5500 |
| Serie: | Performer |
| Usage: | Street |
LINKS
No video avaliable.
Login
- Recommended intake gasket: Edelbrock # 7224 or Fel-Pro # 1247
- Manifold height: A-4.35", B-5.50" (same as stock)
- Carburetor pad height: 4.92"
- Carburetor recommendations: Edelbrock Thunder Series AVS or Performer Series Carb, 600-800cfm. For automatic transmissions use # 1483 or # 1844.
- Camshaft Recommendations: Performer-Plus #2106
- Port exit dimensions: 1.06" x 1.75"
- Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 & 391 c.i.d. Ford truck V8s.
- Due to the design of Performer manifolds, the throttle and kick-down bracket on some vehicles may require modification to fit.
- Due to the possible lack of hood clearance, you may not be able to use the OEM water heater space block between the intake manifold and carburetor.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Edelbrock Part # 2105 Performer 390 intake manifold is designed for street 332-352-360-390-406-410-427-428 c.i.d. Ford V8's with medium- or low-rise cylinder heads. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Manifold not equipped with EGR; will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 c.i.d. and 391 c.i.d. Ford truck V8's.
- For idle to 5500 RPM street-driven performance
- Dual-plane low-rise intake with 180-degree firing order
- Patented runner design ensures broad torque curve
- Excellent throttle response and mid-range power
DETAILS
| Car/Engine: | Ford FE |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 332-352-360-390-406-410-427-428 cui |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | Idle-5500 |
| Serie: | Performer |
| Usage: | Street |
LINKS
No video avaliable.
Login
- Recommended intake gasket: Edelbrock # 7224 or Fel-Pro # 1247
- Manifold height: A-4.35", B-5.50" (same as stock)
- Carburetor pad height: 4.92"
- Carburetor recommendations: Edelbrock Thunder Series AVS or Performer Series Carb, 600-800cfm. For automatic transmissions use # 1483 or # 1844.
- Camshaft Recommendations: Performer-Plus #2106
- Port exit dimensions: 1.06" x 1.75"
- Will not accept stock Motorcraft spread-bore carburetor or fit heavy-duty 361 & 391 c.i.d. Ford truck V8s.
- Due to the design of Performer manifolds, the throttle and kick-down bracket on some vehicles may require modification to fit.
- Due to the possible lack of hood clearance, you may not be able to use the OEM water heater space block between the intake manifold and carburetor.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
