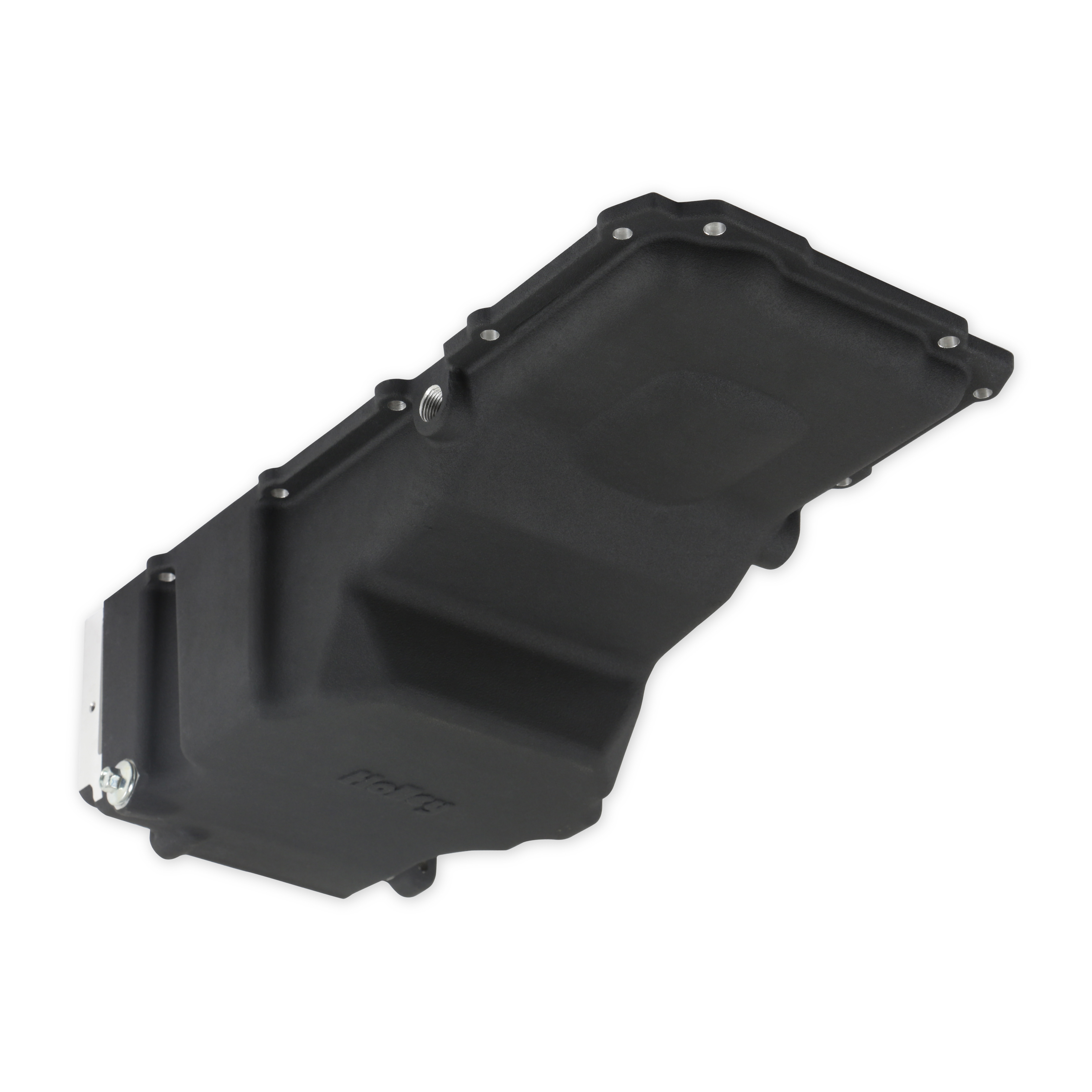

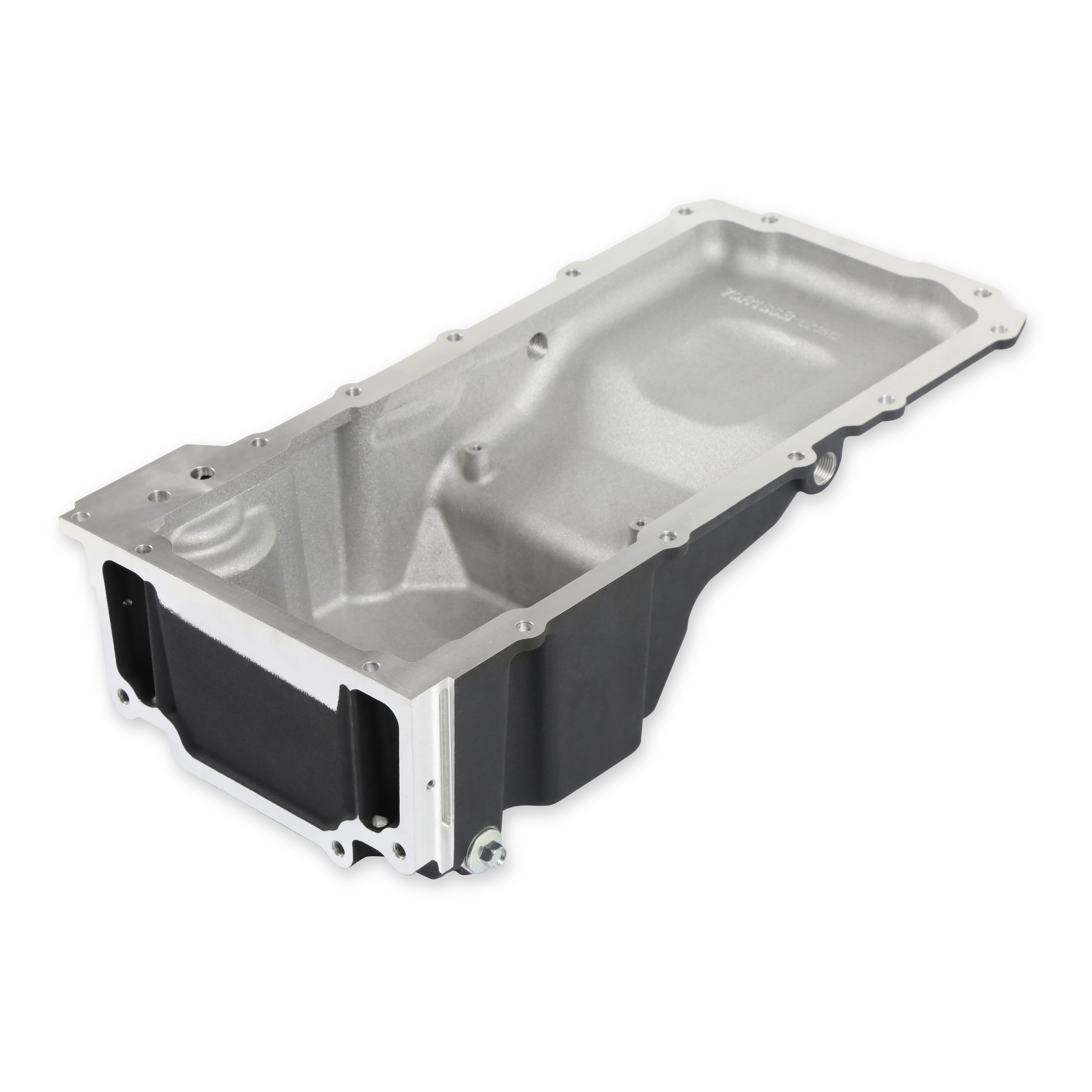

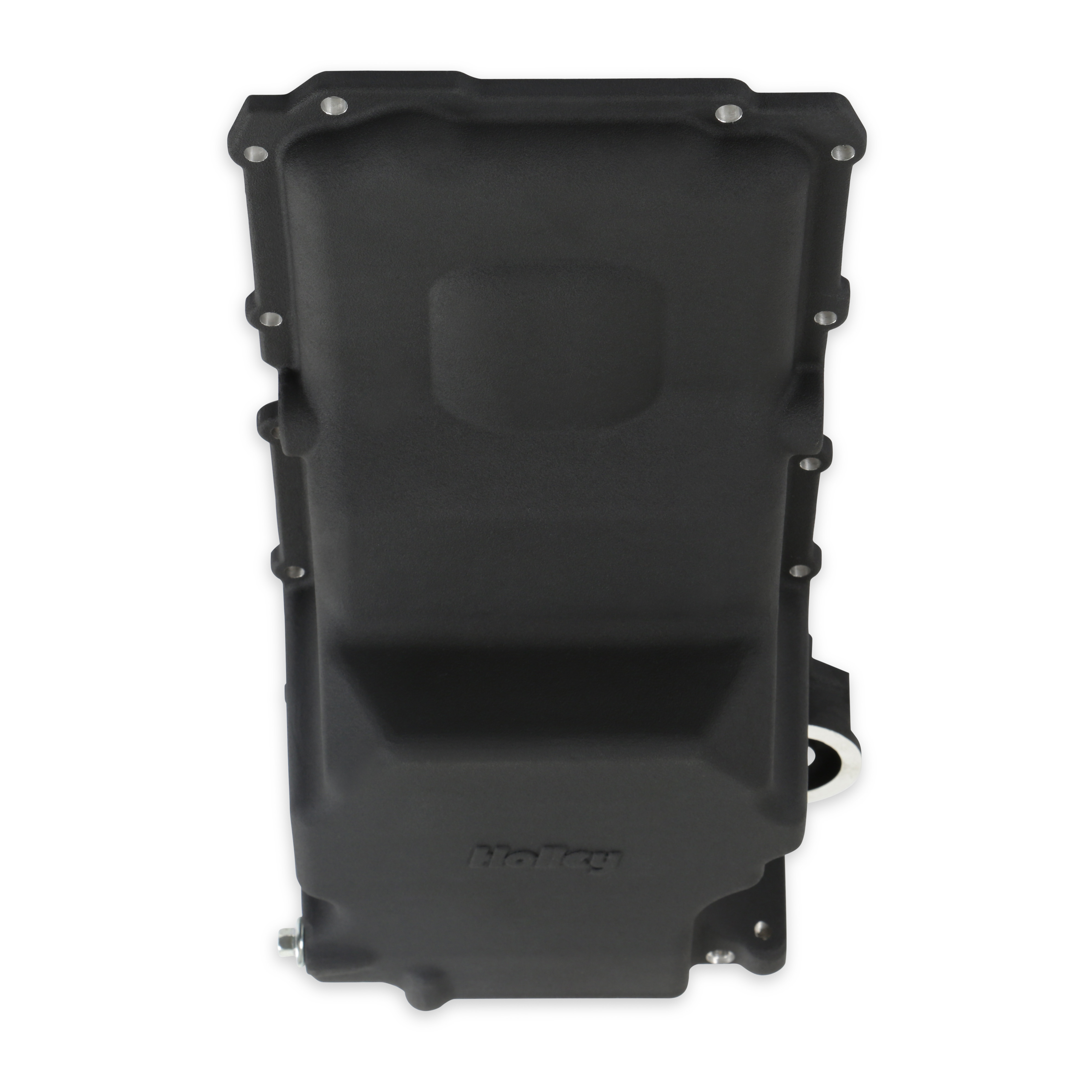

Holley GM LS Swap Oil Pan - Most Front Clearance
incl. vat
Not in stock or Special order — estimated shipping in 7–12 working days
(subject to manufacturer availability).
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10
Holley Engineering has taken its LS Swap oil pans to the next level! The 302-3 design has even more sump clearance, includes two 1/2-inch NPT oil return bosses, and can clear a 4.00-inch stroke crankshaft. Just like the 302-2, the newly designed 302-3 will fit the 1955-1987 GM Muscle Cars and Trucks that need a little more clearance in the front of the oil pan. However, the new design will also fit the Ford Fox body Factory K-member and was designed to clear the Fox Body rack and pinion too. It's a win-win for more LS conversions.
- Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
- Profile of the sump has been revised to provide extra chassis and steering rack clearance
- Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
- NOTE – Oil pan #302-3 will clear a 4.00-inch stroke crankshaft.
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)
- Can be used with Earls oil cooler adaptor LS0012ERL and LS0013ERL, or Earls oil cooler block off plate LS0020ERL with 1/8-inch NPT port
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

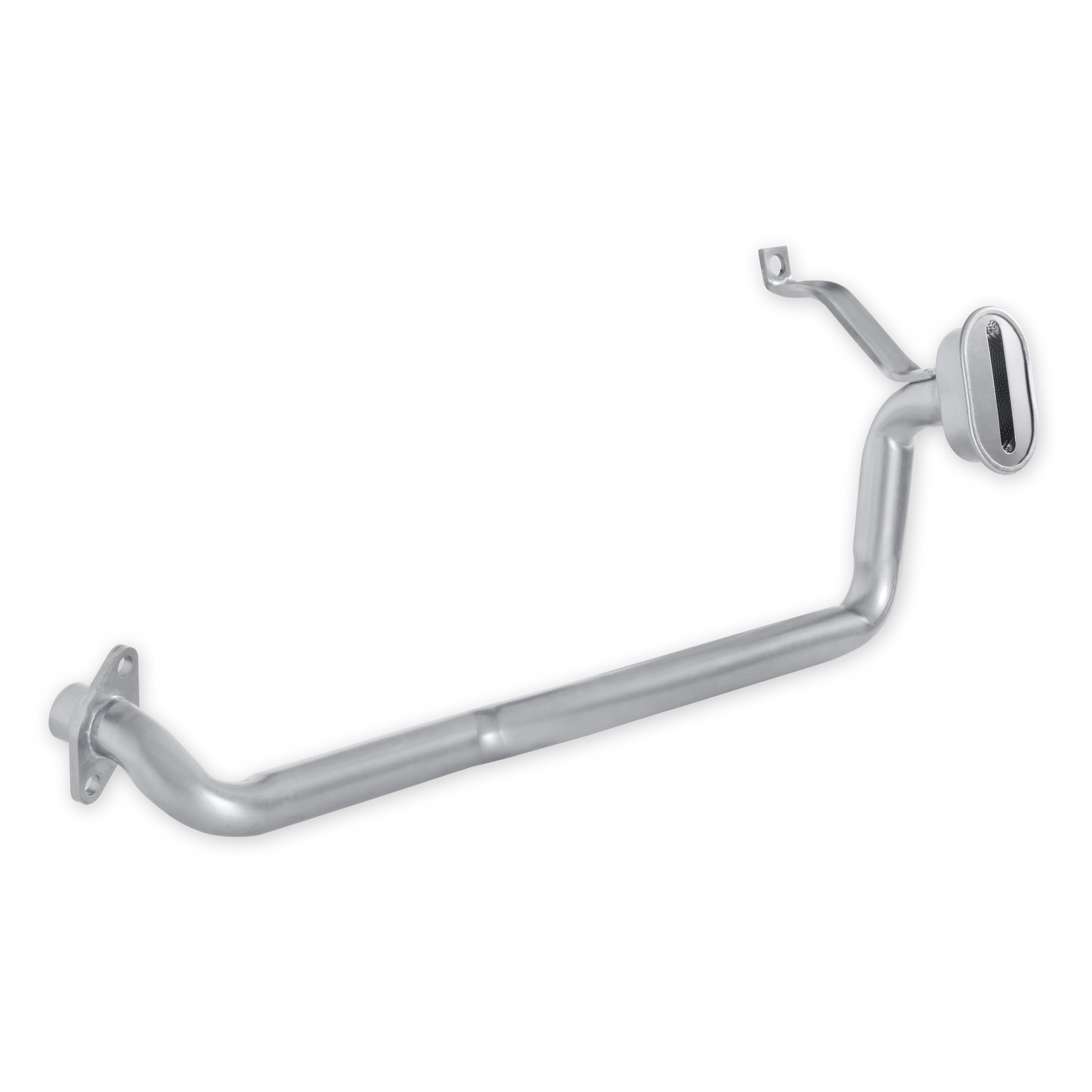

- Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
DETAILS
| Car/Engine: | Chevrolet LS |
|---|---|
| Color/Finish: | Black |
| Material: | Aluminum |
| Oil Pan Capacity: | 5.6 Quarts |
| Oil Pan Depth: | 5.46" |
LINKS
No video avaliable.
Login
- Maximum crankshaft stroke = 4.00"
- Sump Oil Capacity - 5.6 Quarts
- Total Oil Capacity with stock oil filter - 6.1 Quarts
- Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent)
- Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
- Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type.
- ATTENTION! 302-3 is designed to use a GM "F-body" windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and overall length required.
- ATTENTION!Additional Parts Needed (Oil Pan Gasket 6665G or GM® 12612350, High Quality RTV sealer, Oil Filter -AC Delco® PF48 or equivalent)
Holley Engineering has taken its LS Swap oil pans to the next level! The 302-3 design has even more sump clearance, includes two 1/2-inch NPT oil return bosses, and can clear a 4.00-inch stroke crankshaft. Just like the 302-2, the newly designed 302-3 will fit the 1955-1987 GM Muscle Cars and Trucks that need a little more clearance in the front of the oil pan. However, the new design will also fit the Ford Fox body Factory K-member and was designed to clear the Fox Body rack and pinion too. It's a win-win for more LS conversions.
- Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
- Profile of the sump has been revised to provide extra chassis and steering rack clearance
- Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
- NOTE – Oil pan #302-3 will clear a 4.00-inch stroke crankshaft.
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)
- Can be used with Earls oil cooler adaptor LS0012ERL and LS0013ERL, or Earls oil cooler block off plate LS0020ERL with 1/8-inch NPT port
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member
- Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
DETAILS
| Car/Engine: | Chevrolet LS |
|---|---|
| Color/Finish: | Black |
| Material: | Aluminum |
| Oil Pan Capacity: | 5.6 Quarts |
| Oil Pan Depth: | 5.46" |
LINKS
No video avaliable.
Login
- Maximum crankshaft stroke = 4.00"
- Sump Oil Capacity - 5.6 Quarts
- Total Oil Capacity with stock oil filter - 6.1 Quarts
- Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent)
- Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
- Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type.
- ATTENTION! 302-3 is designed to use a GM "F-body" windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and overall length required.
- ATTENTION!Additional Parts Needed (Oil Pan Gasket 6665G or GM® 12612350, High Quality RTV sealer, Oil Filter -AC Delco® PF48 or equivalent)
