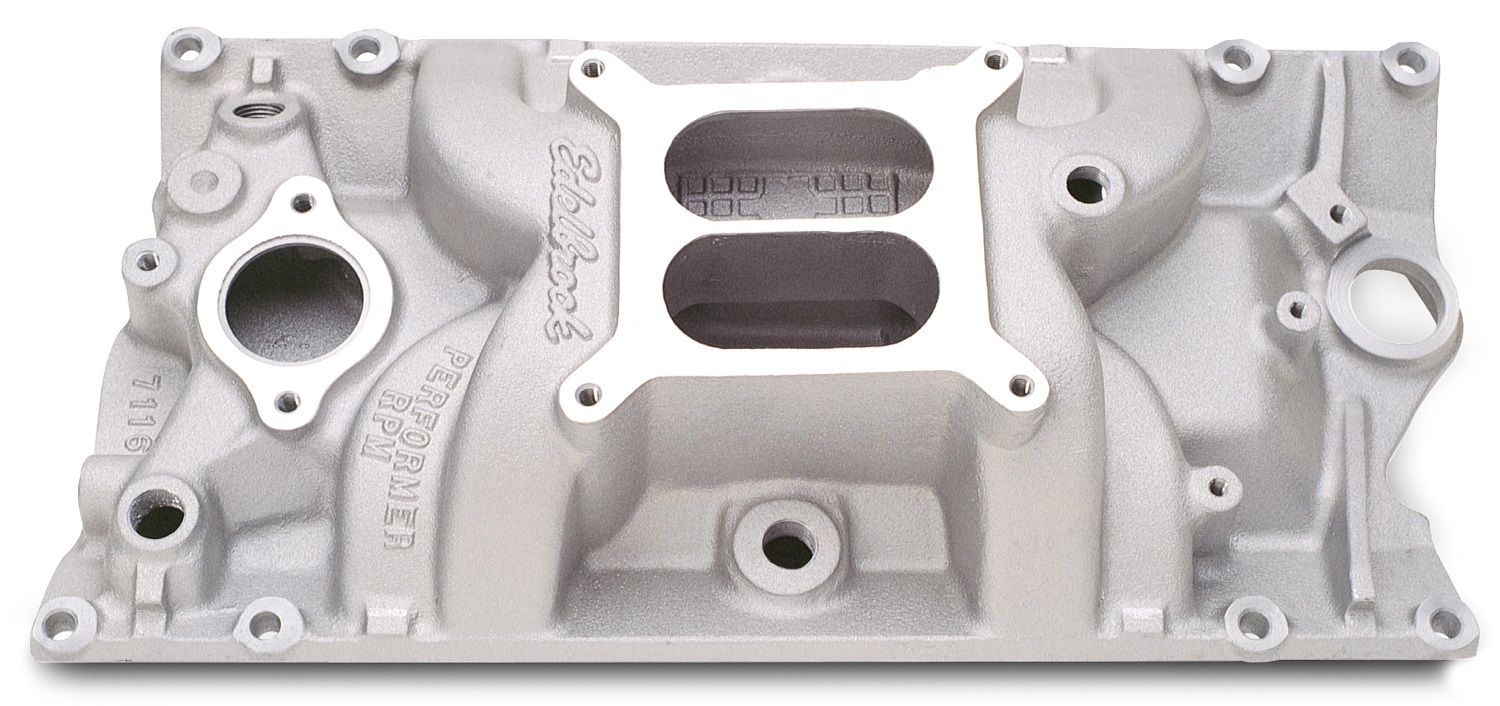

Edelbrock Part # 7116 Performer RPM Vortec intake manifold is Based on the powerful Edelbrock #7101, this single four-barrel intake is designed for the street rod, marine and engine swap market utilizing 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Manifold accepts square-bore carbs only. For street and marine engines operating from 1500-6500 RPM, see the Performer Vortec manifold or Performer Vortec EPS. Will not fit under stock Corvette hood.
- Best for the ultimate in street high-performance
- Designed for 1500 to 6500 RPM street-driven power
- Produces Incredible top-end horsepower
- Retains good throttle response and acceleration
- Larger plenum and runners maximize other upgrades
- For 1996+ GM Vortec or Edelbrock E-tech heads
- Accepts square-bore carburetors only
- Engine Swaps
DETAILS
LINKS
No video avaliable.
Login
- Manifold height: A-4.20", B-5.25" (.70" taller than # 2101)
- Carburetor pad height: 4.27"
- Carburetor recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8032 for 1972-78.
- Camshaft Recommendations: Performer RPM #7102, #2201 and #2204
- Port exit dimensions: 2.05" tall with slanted sidewalls
- Recommended intake gasket: Edelbrock # 7235 or GM # 89017465
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
- Use # 8516 Edelbrock bolt kit
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Will not fit under stock Corvette hood.
- Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket # 8032.
- Edelbrock does not recommend the use of an economy type carburetor such as the Performer series # 1406 or # 1411 on Performer RPM Intake Manifolds. Economy type carburetors are calibrated lean for fuel economy and will not perform properly on this style of intake.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
