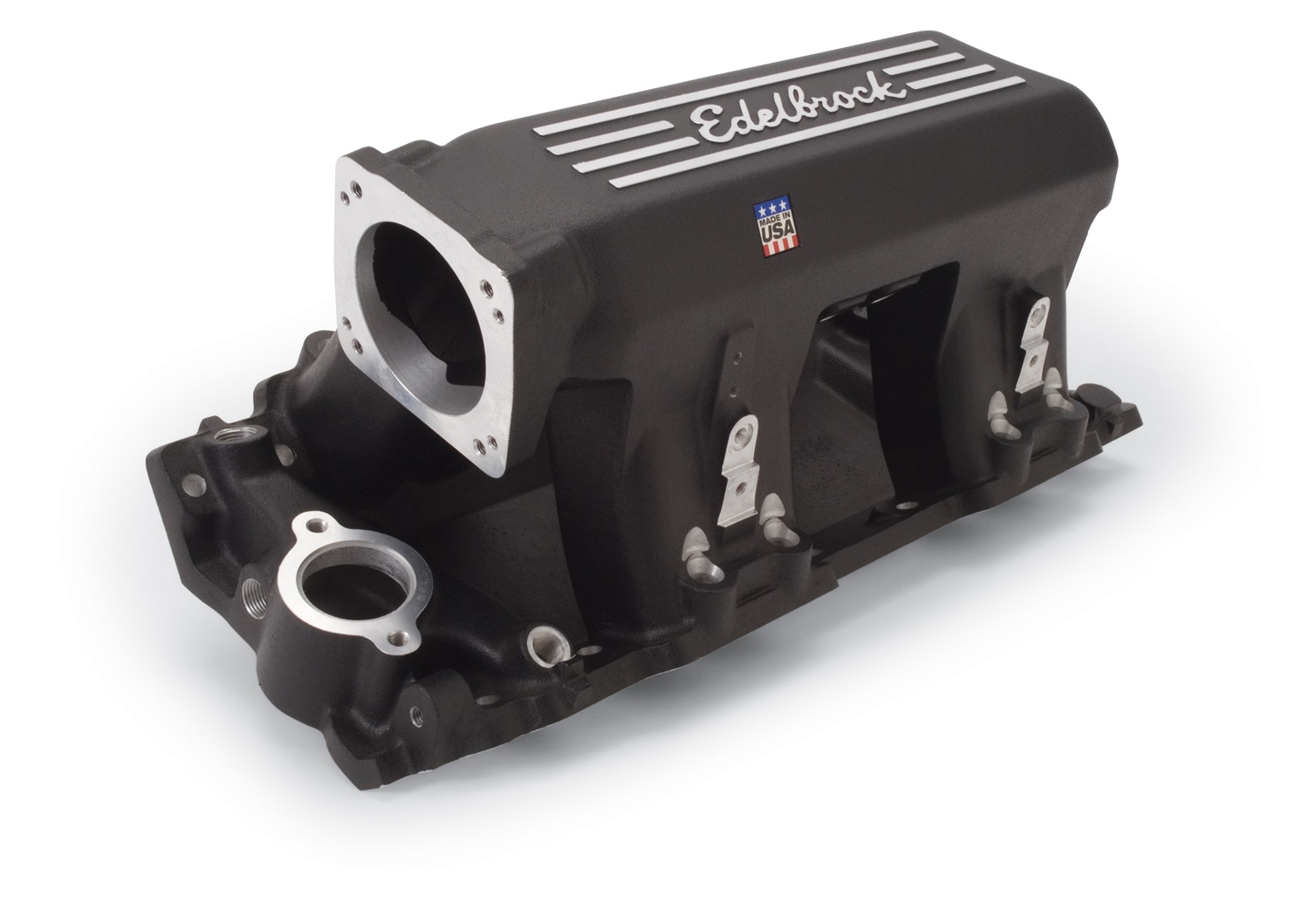

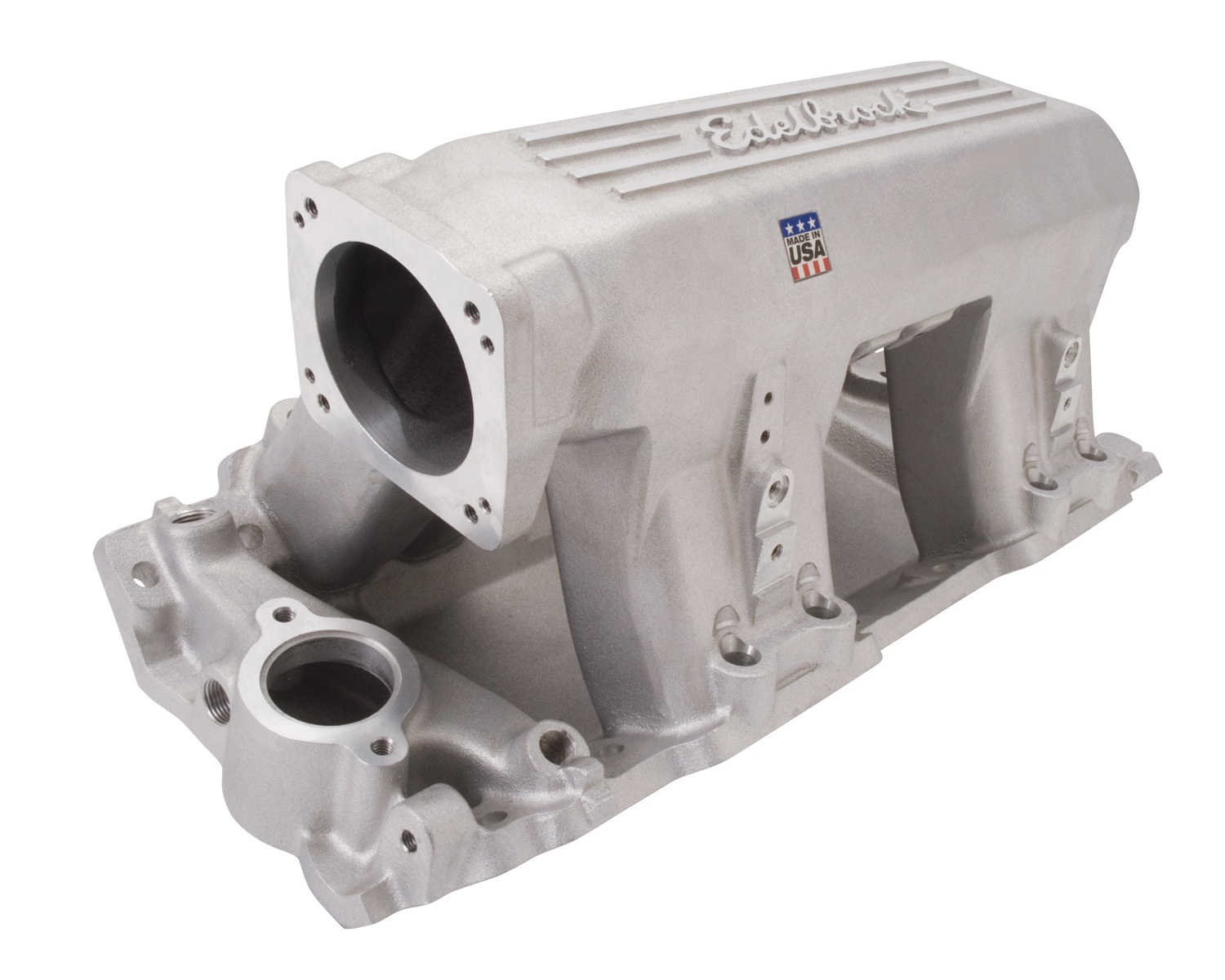

Pro-Flo XT EFI Manifold, Chevrolet Big Block
incl. vat
Not in stock or Special order — estimated shipping in 7–12 working days
(subject to manufacturer availability).
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10
Edelbrock Part # 7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open-air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).
- Designed for 1500 to 6500 performance
- Large plenum
- Long Tapered runners
- 90mm. Throttle body opening
- Engine swaps or race Use
DETAILS
| Car/Engine: | Chevrolet Big Block |
|---|---|
| Color/Finish: | Satin |
| Engine Notes: | 396-502 c.i.d. Chevy V8s with rectangular-port cylinder heads |
| RPM Range: | 1500-6500 |
| Serie: | Pro-Flo |
LINKS
No video avaliable.
Login
- Recommended gasket: Edelbrock # 7202
- Throttle body recommendations: Edelbrock # 3869 or # 38693
- Manifold Dimensions: A-9.80", B-10.00", C-17.80", D-0.00", E-10 Degree
- Port exit dimensions: 1.67
Edelbrock Part # 7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open-air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).
- Designed for 1500 to 6500 performance
- Large plenum
- Long Tapered runners
- 90mm. Throttle body opening
- Engine swaps or race Use
DETAILS
| Car/Engine: | Chevrolet Big Block |
|---|---|
| Color/Finish: | Satin |
| Engine Notes: | 396-502 c.i.d. Chevy V8s with rectangular-port cylinder heads |
| RPM Range: | 1500-6500 |
| Serie: | Pro-Flo |
LINKS
No video avaliable.
Login
- Recommended gasket: Edelbrock # 7202
- Throttle body recommendations: Edelbrock # 3869 or # 38693
- Manifold Dimensions: A-9.80", B-10.00", C-17.80", D-0.00", E-10 Degree
- Port exit dimensions: 1.67
Accessory Items
Edelbrock

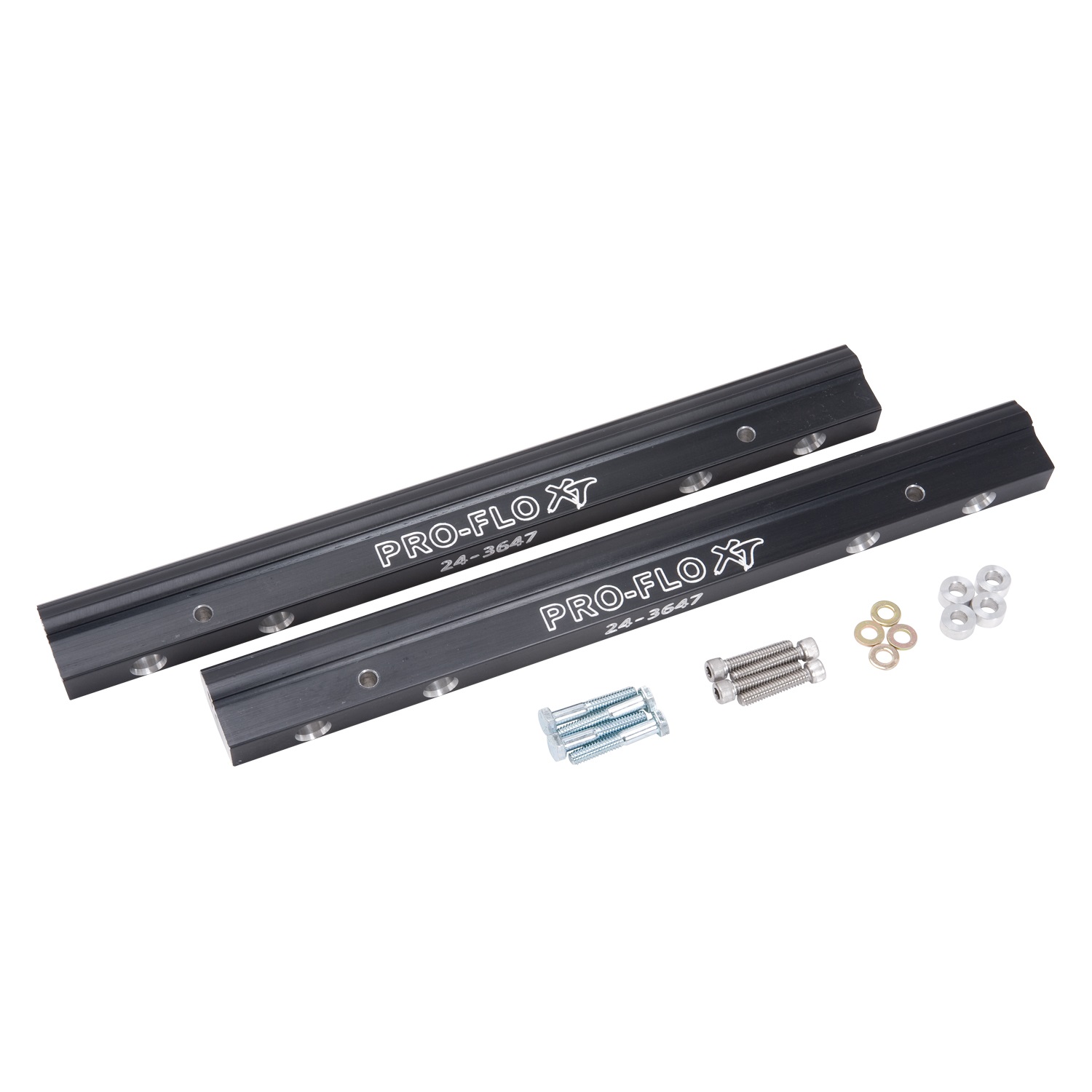

Part number: 3658
