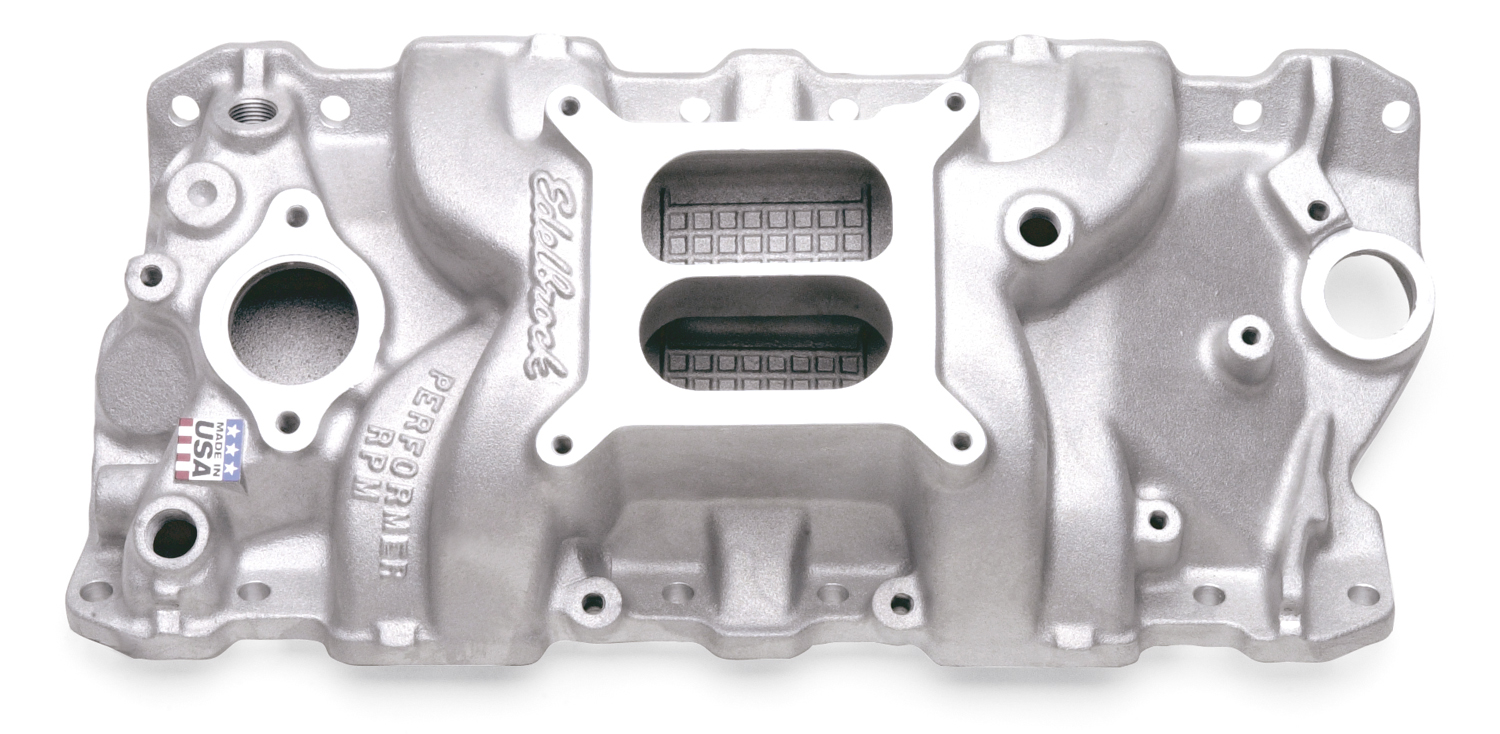

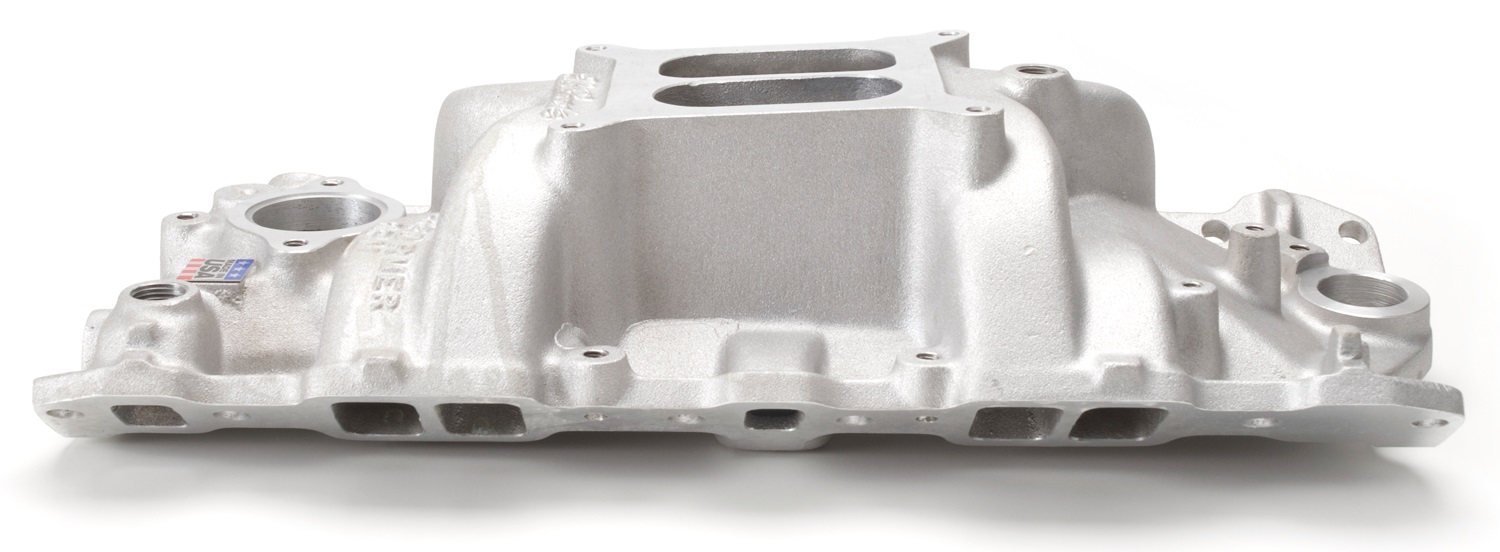

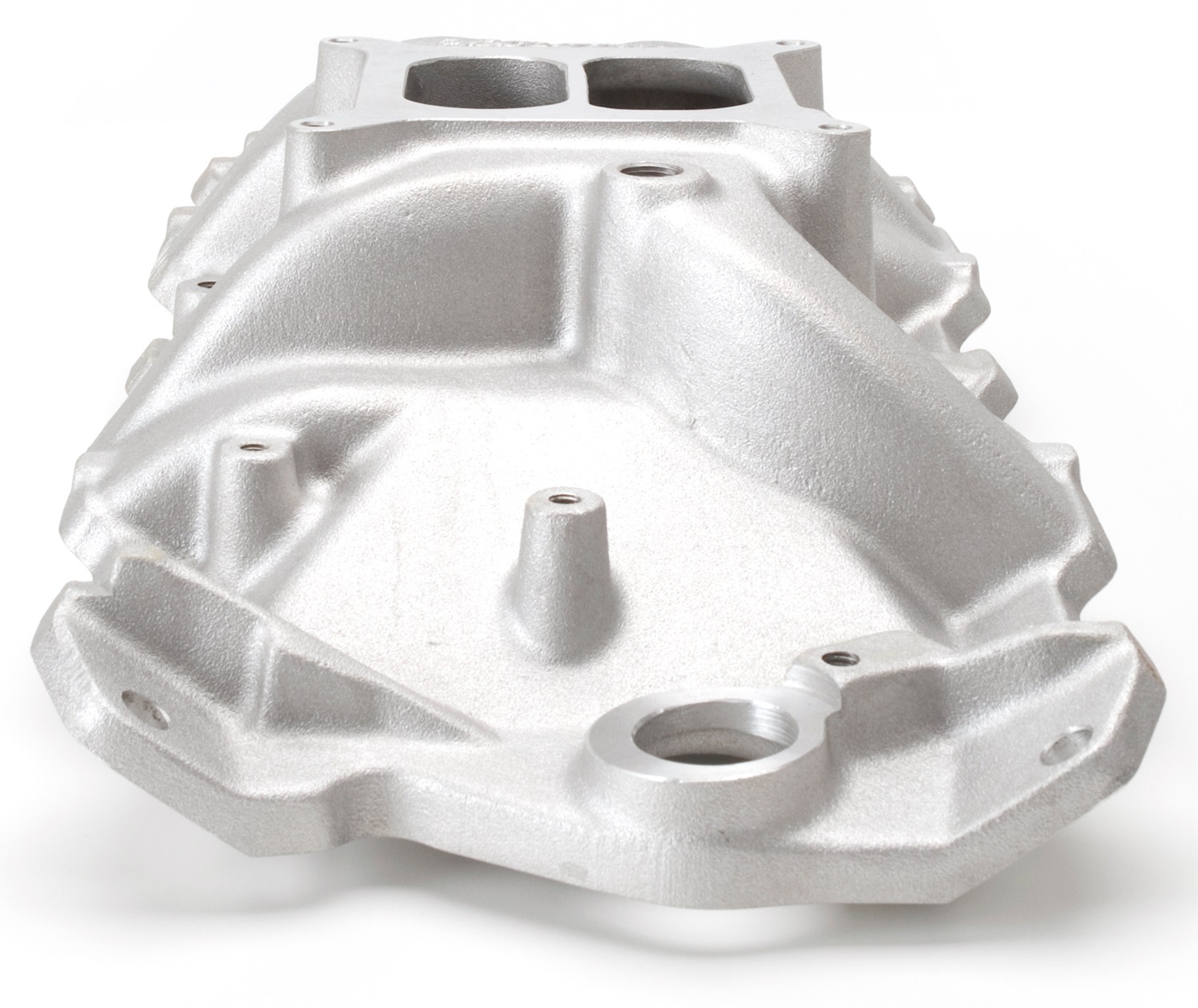

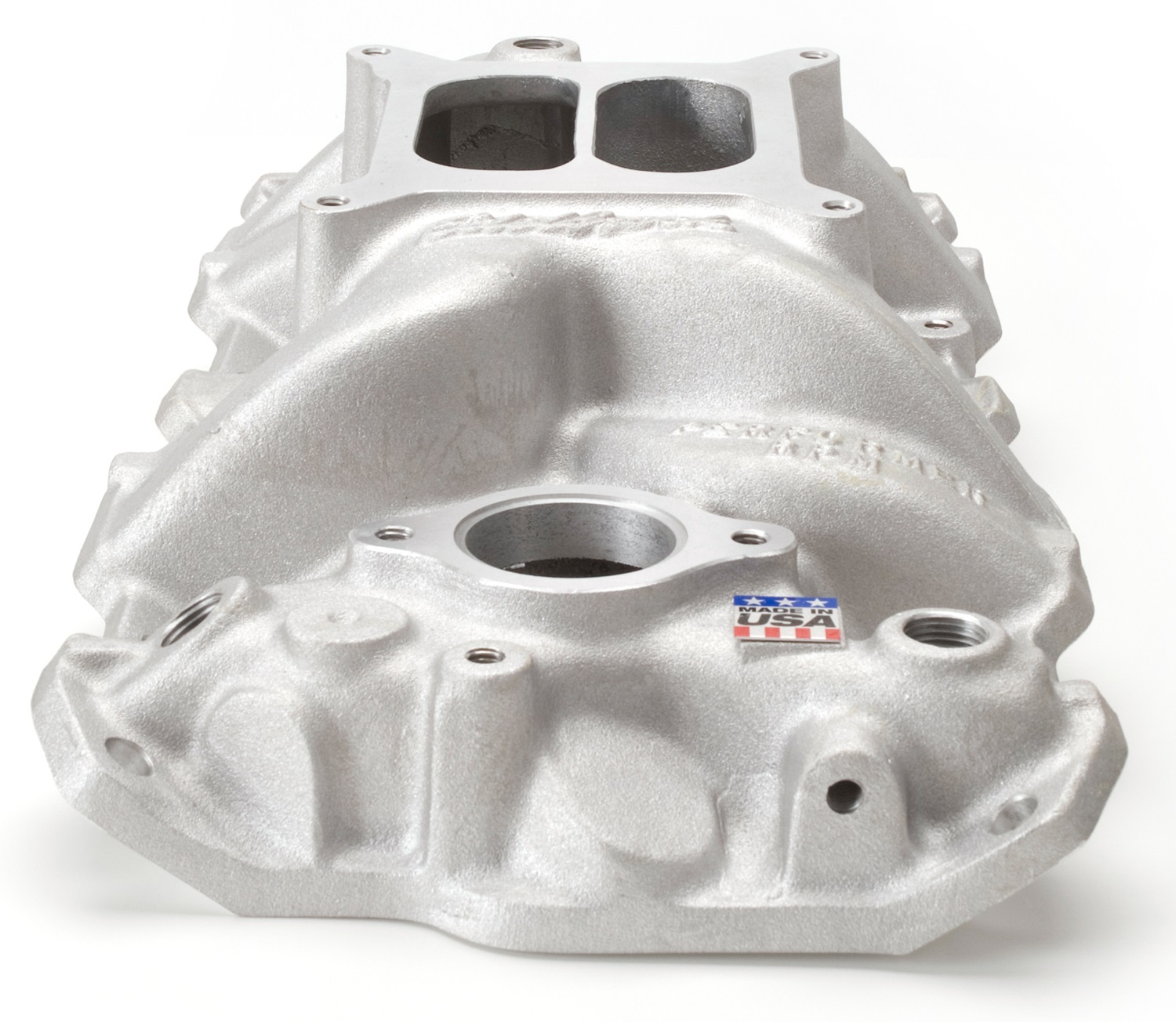

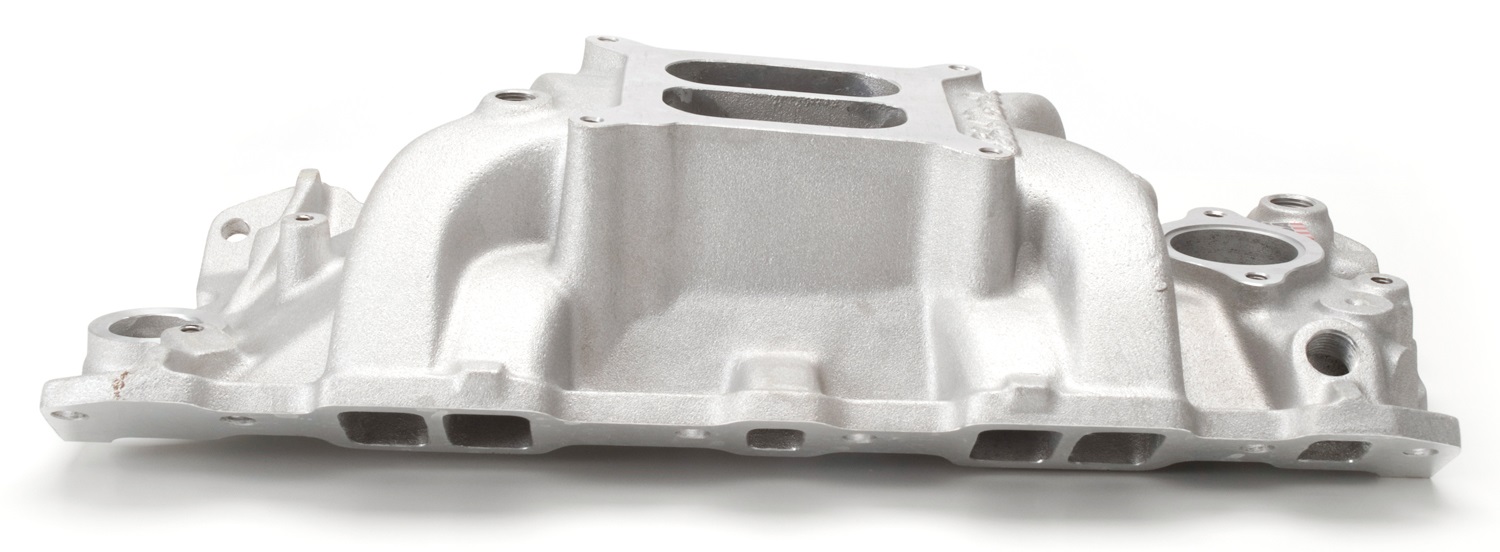

Performer RPM Manifold, Chevrolet Small Block, 55-86
incl. vat
Only 1 in stock
Ready to ship, estimated delivery time: 1-3 workdays
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10

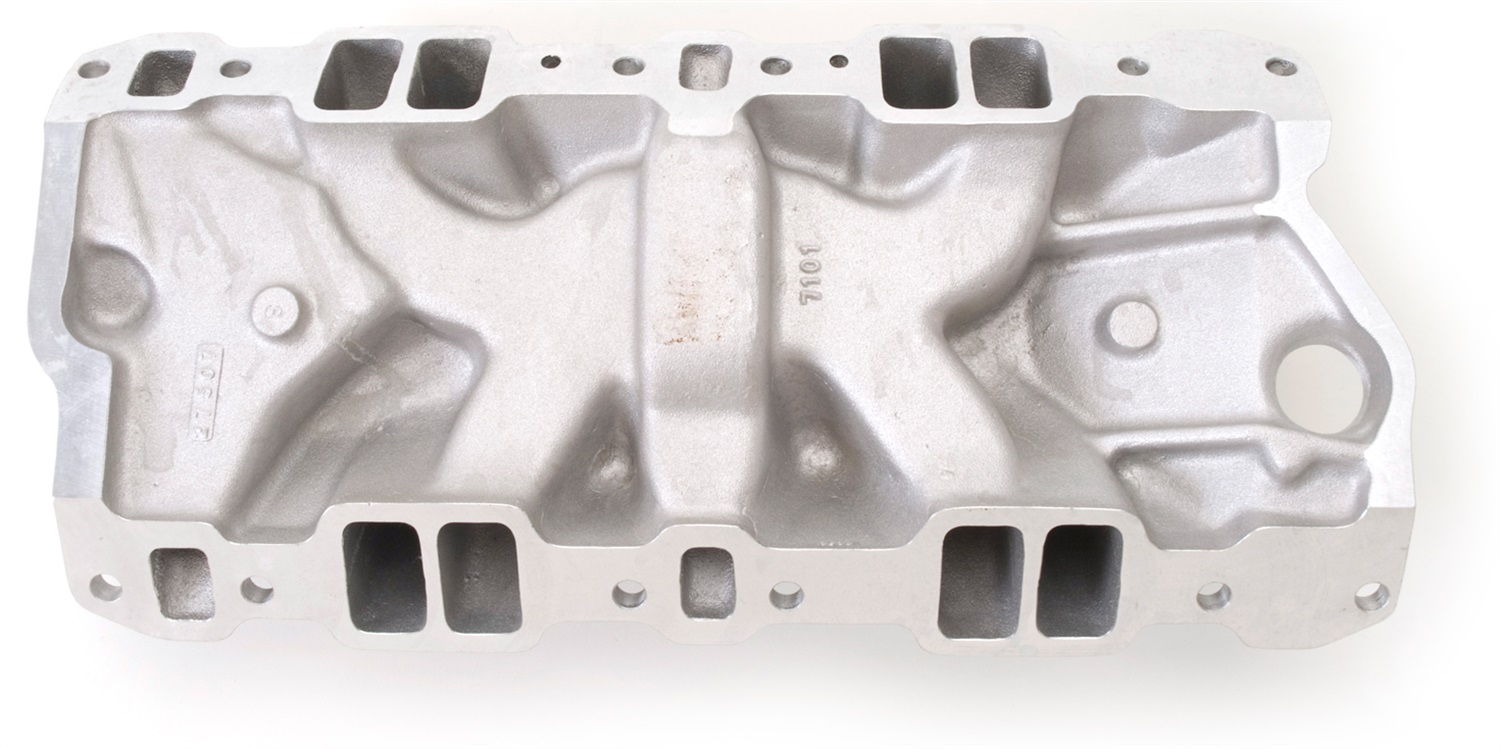

Edelbrock Part # 7101 Performer RPM intake manifold is designed for 1955-86 262-400 c.i.d. Chevy V8's for maximum power and a broad torque curve for high- performance street/marine engines. Provides power like a single-plane and throttle response like a dual-plane. Has provisions to machine for an oil fill tube. No provisions for exhaust heated or stock-style choke. Accepts late-model water neck, air-conditioning, alternator and HEI ignition. Will fit cast iron Chevrolet Bowtie heads, but will not fit 1987 and later cast iron heads.
- Intake manifold will not fit under the stock Corvette hood.
- Best for the ultimate in street high-performance
- Designed for 1500 to 6550 RPM street-driven power
- Dual-plane high-rise intake with 180-degree firing order
- Produces incredible top-end horsepower
- Retains good throttle response and acceleration
- Larger plenum and runners maximize other upgrades
- Edelbrock total power package maximizes gains
DETAILS
| Car/Engine: | Chevrolet Small Block |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 262-400 cui - 1986 and earlier |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | 1500-6500 |
| Serie: | Performer RPM |
| Usage: | Performance |
LINKS
No video avaliable.
Login
- Manifold ht: A-4.20", B-5.25" (.70" taller than # 2101)
- Carburetor pad height: 4.27"
- Carburetor recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8031 or # 8036 for 1972-78.
- Camshaft recommendations: Performer RPM #7102, #2201 and #2204.
- Port exit dimensions: 1.16" x 1.92"
- Recommended intake gasket: Edelbrock # 7201.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Use # 8504 Edelbrock bolt kit
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Will not fit under stock Corvette hood.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Edelbrock Part # 7101 Performer RPM intake manifold is designed for 1955-86 262-400 c.i.d. Chevy V8's for maximum power and a broad torque curve for high- performance street/marine engines. Provides power like a single-plane and throttle response like a dual-plane. Has provisions to machine for an oil fill tube. No provisions for exhaust heated or stock-style choke. Accepts late-model water neck, air-conditioning, alternator and HEI ignition. Will fit cast iron Chevrolet Bowtie heads, but will not fit 1987 and later cast iron heads.
- Intake manifold will not fit under the stock Corvette hood.
- Best for the ultimate in street high-performance
- Designed for 1500 to 6550 RPM street-driven power
- Dual-plane high-rise intake with 180-degree firing order
- Produces incredible top-end horsepower
- Retains good throttle response and acceleration
- Larger plenum and runners maximize other upgrades
- Edelbrock total power package maximizes gains
DETAILS
| Car/Engine: | Chevrolet Small Block |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Engine Notes: | 262-400 cui - 1986 and earlier |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | 1500-6500 |
| Serie: | Performer RPM |
| Usage: | Performance |
LINKS
No video avaliable.
Login
- Manifold ht: A-4.20", B-5.25" (.70" taller than # 2101)
- Carburetor pad height: 4.27"
- Carburetor recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8031 or # 8036 for 1972-78.
- Camshaft recommendations: Performer RPM #7102, #2201 and #2204.
- Port exit dimensions: 1.16" x 1.92"
- Recommended intake gasket: Edelbrock # 7201.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Use # 8504 Edelbrock bolt kit
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Will not fit under stock Corvette hood.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
