RPM Air Gap Manifold, Ford 351W
incl. vat
Only 1 in stock
Ready to ship, estimated delivery time: 1-3 workdays
Notes
Tracked shipping across Europe
.svg?ts=1756209735)
All-in EU price, no import duties or fees
.svg?ts=1756209743)
Dutch Company & Warehouse
Customers rate us 9.5 out of 10

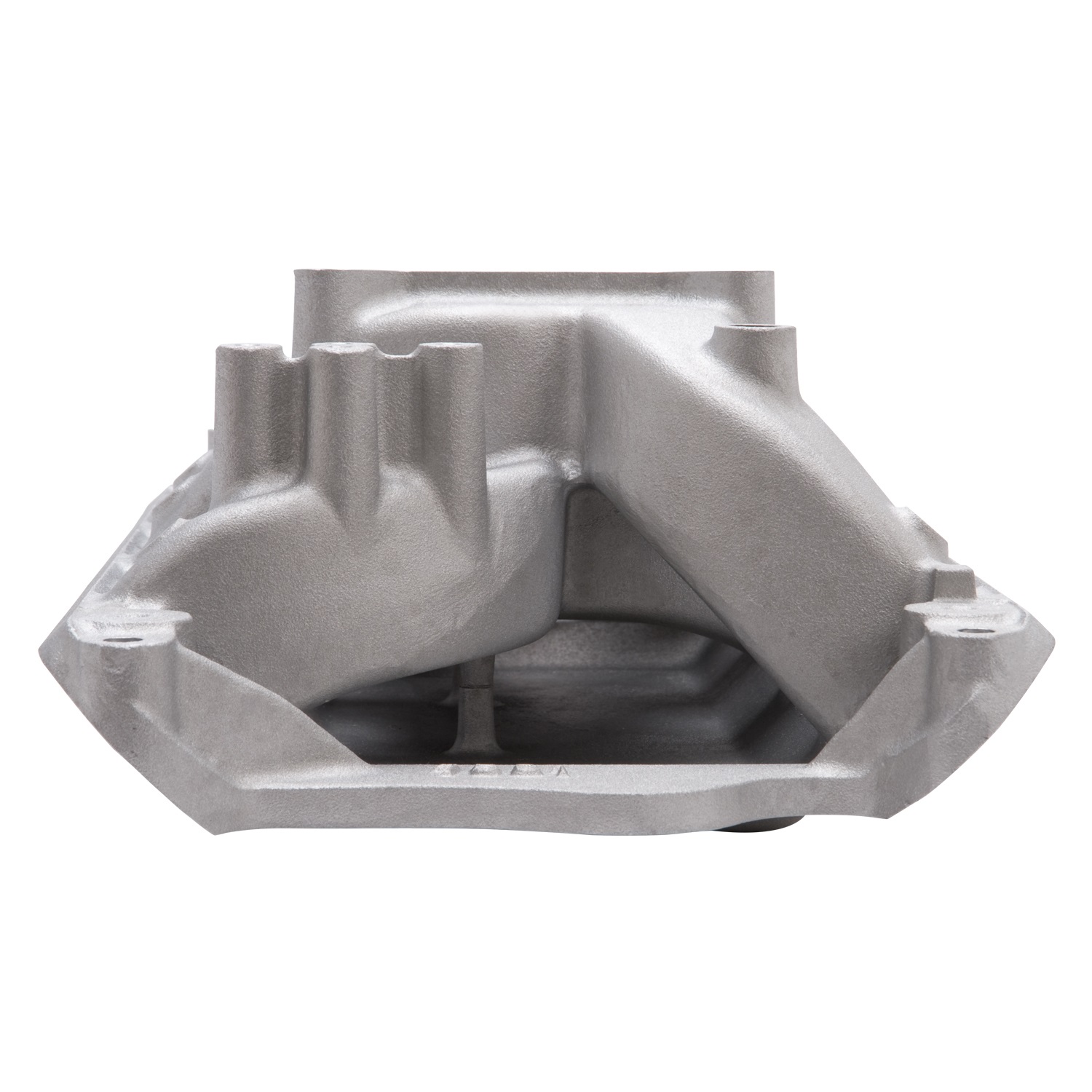

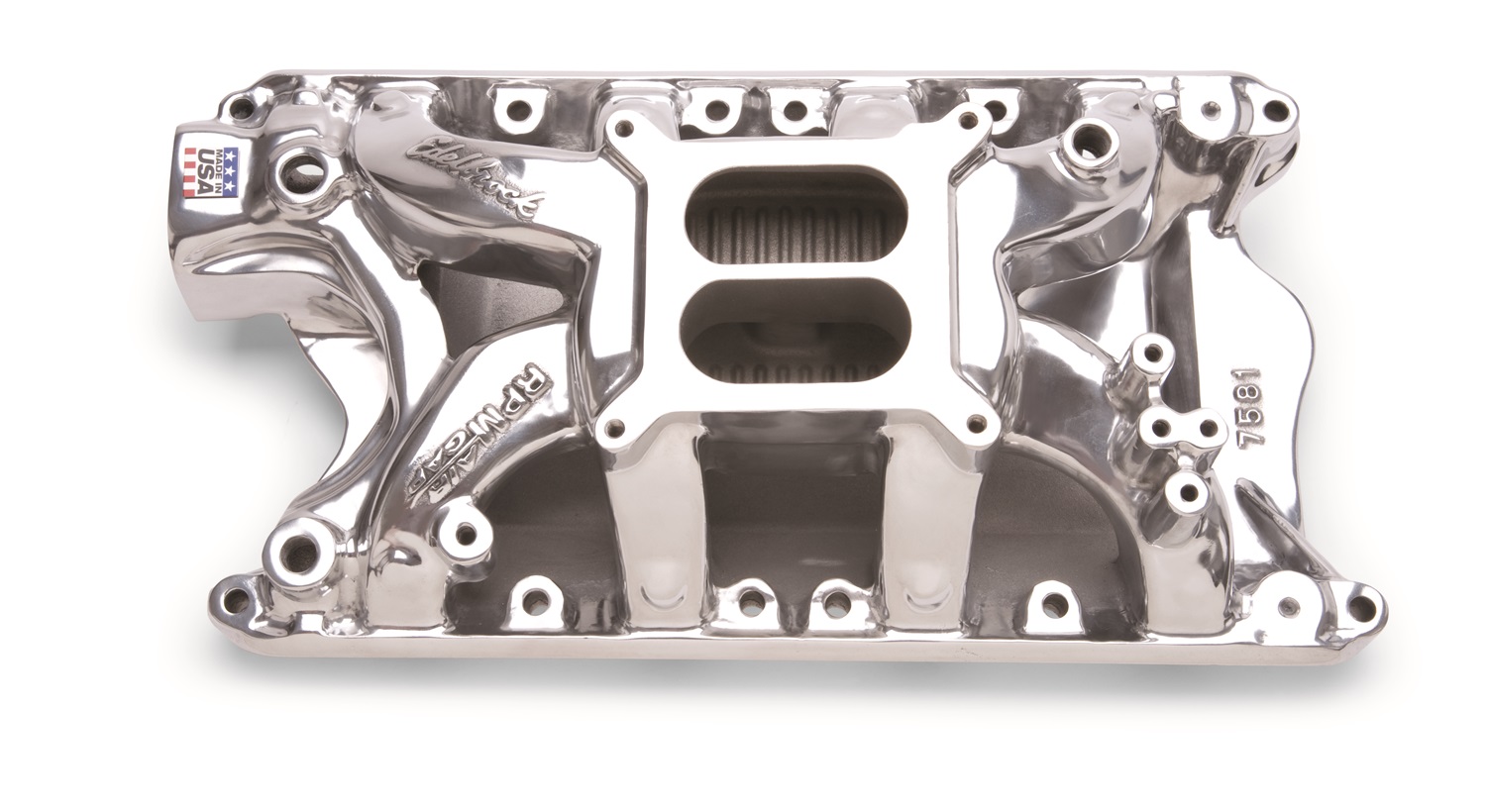

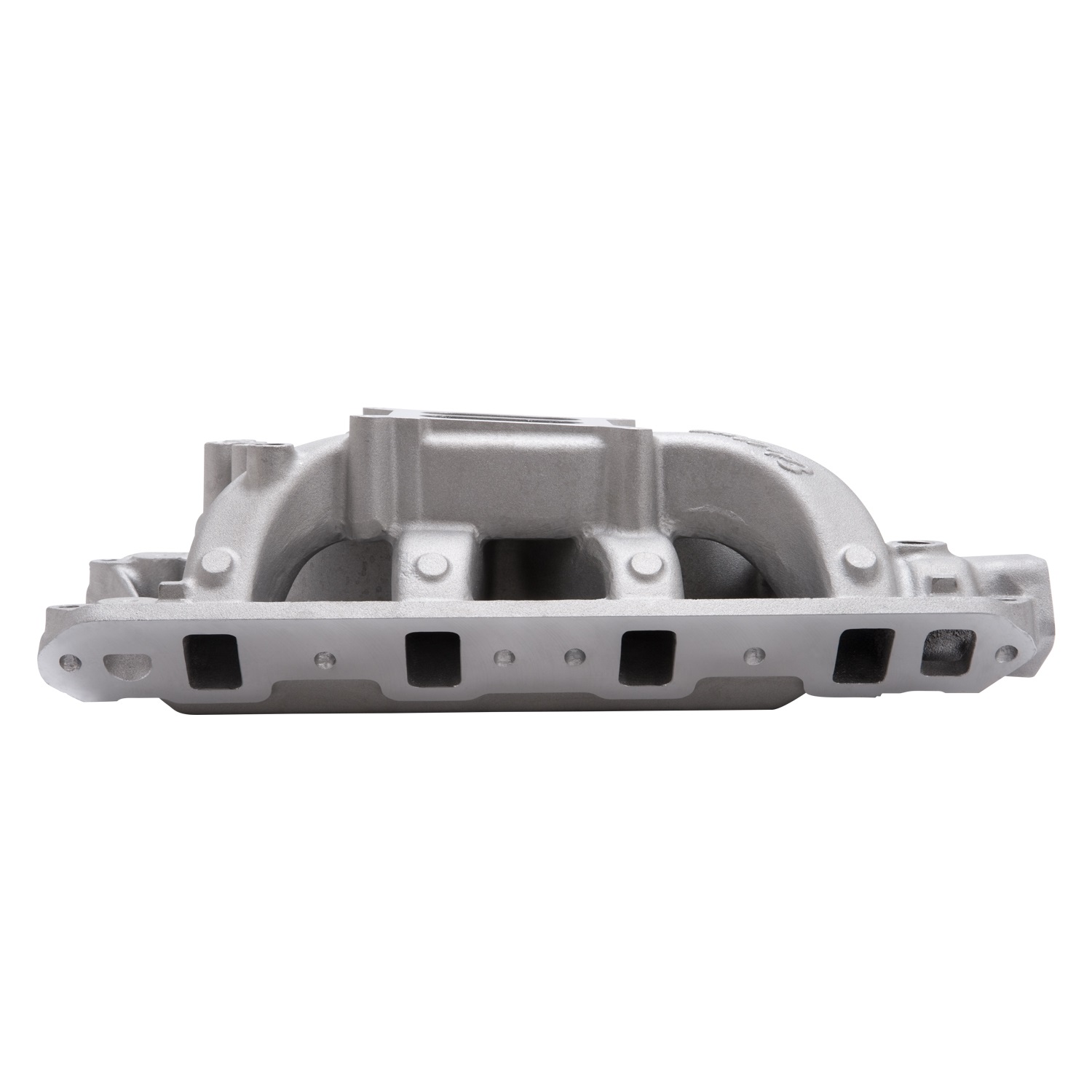

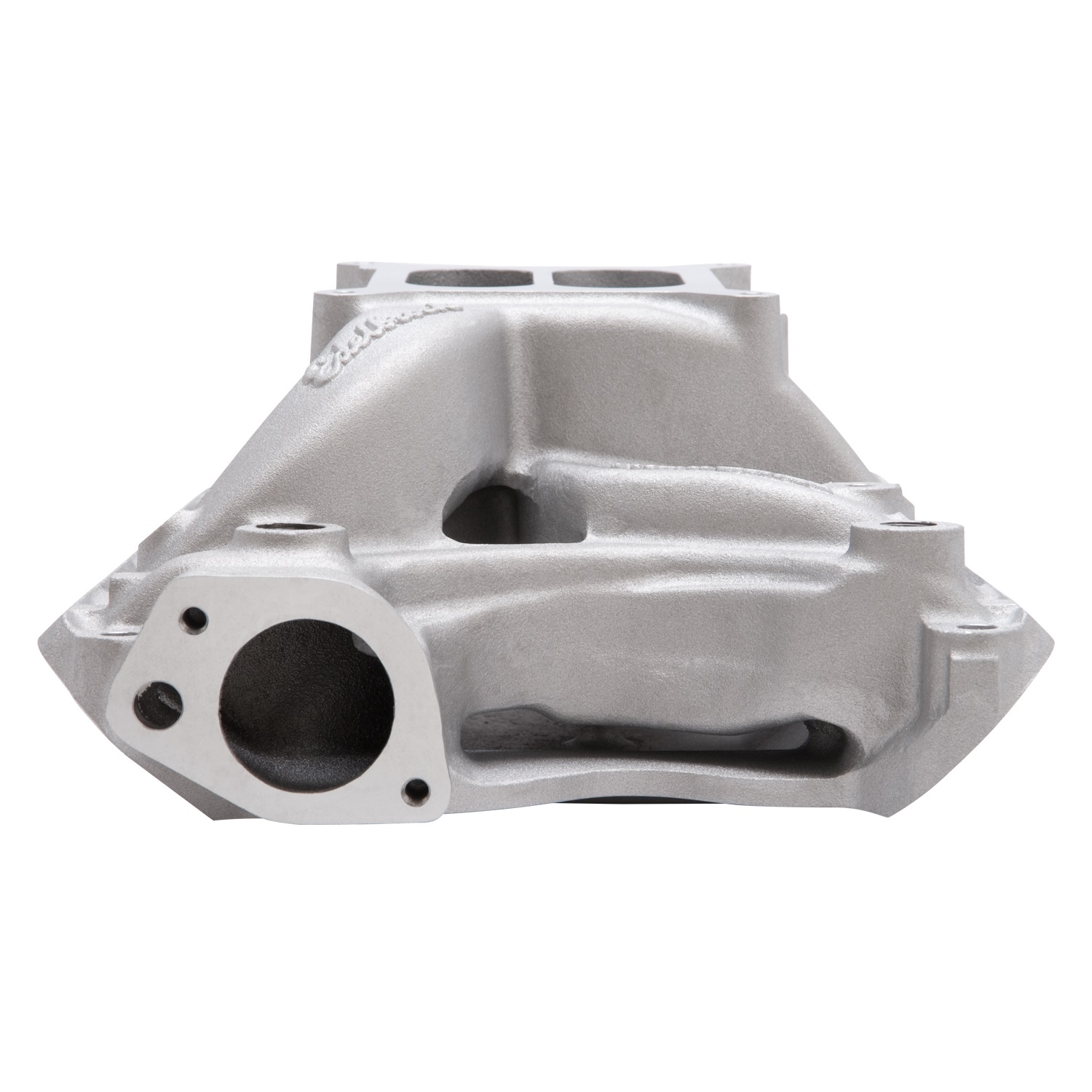

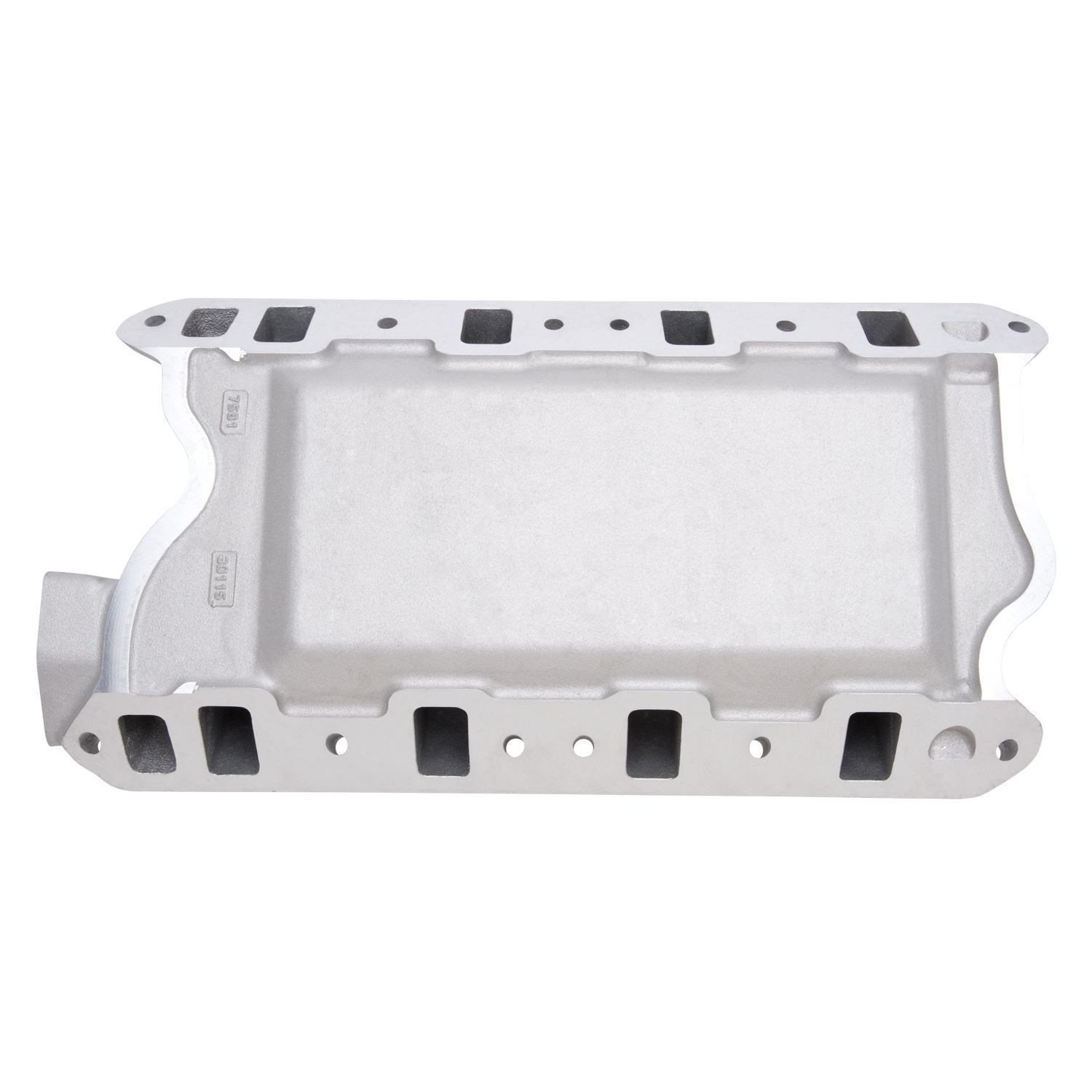

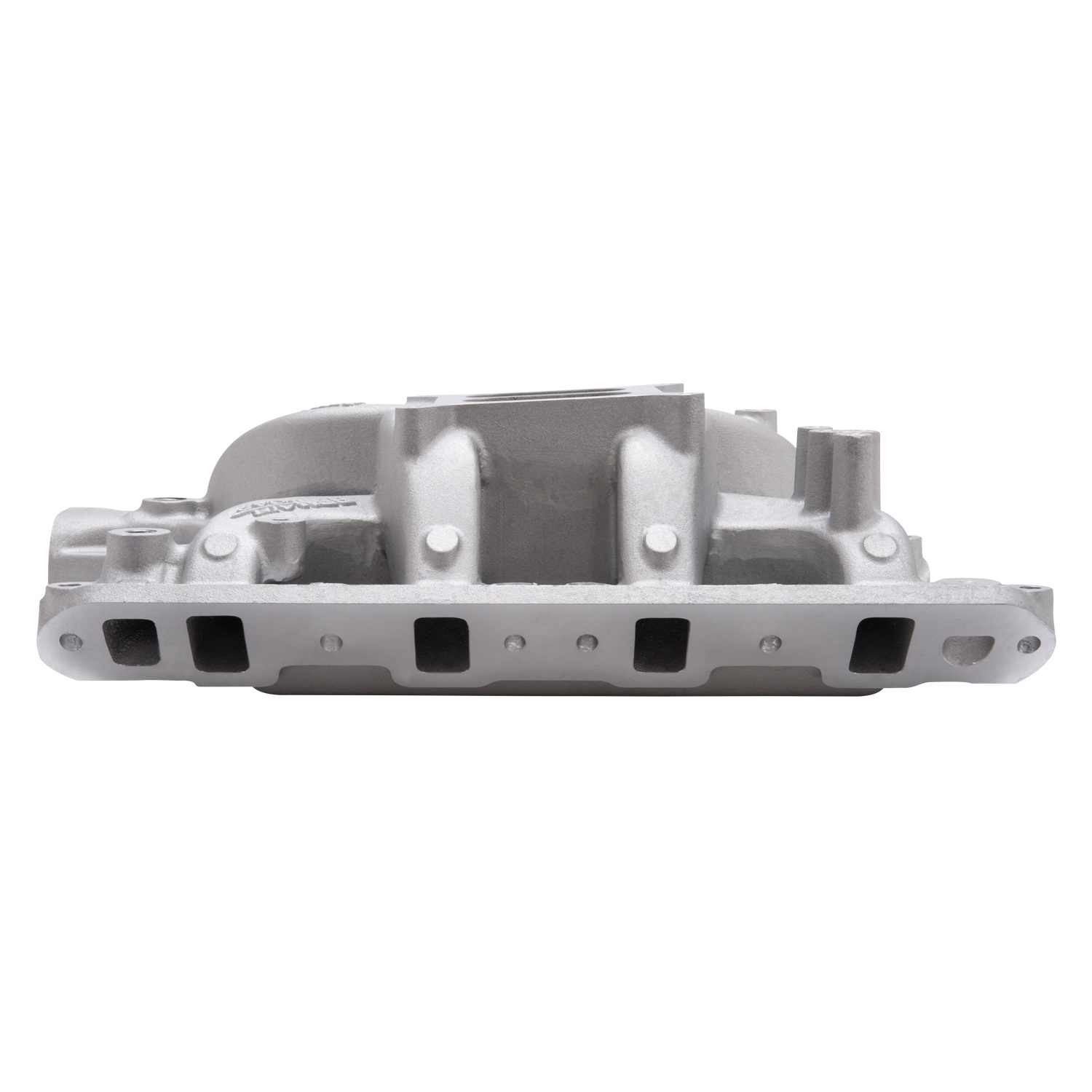

Edelbrock Part # 7581 RPM Air-Gap 351W intake manifold is designed for street and high performance 351-427 c.i.d. 351W Ford V8 applications. The RPM Air-Gap incorporates the same race-winning design that’s been used on our Victor Series competition intakes for decades. The Air-Gap design features an open-air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Larger cross-sectional area and a taller carb flange than #7181 for compatibility with large displacement, stroker 351W based engines. Includes bosses for nitrous and rear water crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.
- Based on performer RPM-series with a unique air gap
- Air gap cooler and denser mixture for more power
- Designed for 1500 to 6500 RPM
- Designed for street and high performance
- Larger cross-sectional area
- Taller carburetor flange
- Compatibility with large displacement 351W based engines
DETAILS
| Car/Engine: | Ford 351W |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | 1500-6500 |
| Serie: | RPM Air-Gap |
| Usage: | Performance |
LINKS
No video avaliable.
Login
- Use 12-bolt intake gasket set Edelbrock # 7220 recommended
- Manifold height: A-5.31", B-6.19"
- Carburetor pad height: 5.75"
- Carburetor recommendations: Edelbrock Thunder Series AVS or Performer Series 650-800 cfm. For automatic transmissions use # 1483 and # 1491 or # 1844.
- Port exit dimensions: 1.07" x 1.88"
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Edelbrock Part # 7581 RPM Air-Gap 351W intake manifold is designed for street and high performance 351-427 c.i.d. 351W Ford V8 applications. The RPM Air-Gap incorporates the same race-winning design that’s been used on our Victor Series competition intakes for decades. The Air-Gap design features an open-air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Larger cross-sectional area and a taller carb flange than #7181 for compatibility with large displacement, stroker 351W based engines. Includes bosses for nitrous and rear water crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.
- Based on performer RPM-series with a unique air gap
- Air gap cooler and denser mixture for more power
- Designed for 1500 to 6500 RPM
- Designed for street and high performance
- Larger cross-sectional area
- Taller carburetor flange
- Compatibility with large displacement 351W based engines
DETAILS
| Car/Engine: | Ford 351W |
|---|---|
| Carburator Setup: | Single-Carburator |
| Color/Finish: | Satin |
| Emission: | Without EGR |
| Flange: | Square Bore |
| Intake Style: | Dual Plane |
| RPM Range: | 1500-6500 |
| Serie: | RPM Air-Gap |
| Usage: | Performance |
LINKS
No video avaliable.
Login
- Use 12-bolt intake gasket set Edelbrock # 7220 recommended
- Manifold height: A-5.31", B-6.19"
- Carburetor pad height: 5.75"
- Carburetor recommendations: Edelbrock Thunder Series AVS or Performer Series 650-800 cfm. For automatic transmissions use # 1483 and # 1491 or # 1844.
- Port exit dimensions: 1.07" x 1.88"
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
