- Order number: EDL-3704
Designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (TBI) engines. Accepts... more
- Use stock Throttle Body Injection unit.
- Recommended intake gasket: GM # 10159409.
- Manifold height: A-3.70", B-5.10"; TBI pad height: 4.40", .250" taller than stock.
- Port exit dimensions: 1.13" x 1.87".
- Made in the USA
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

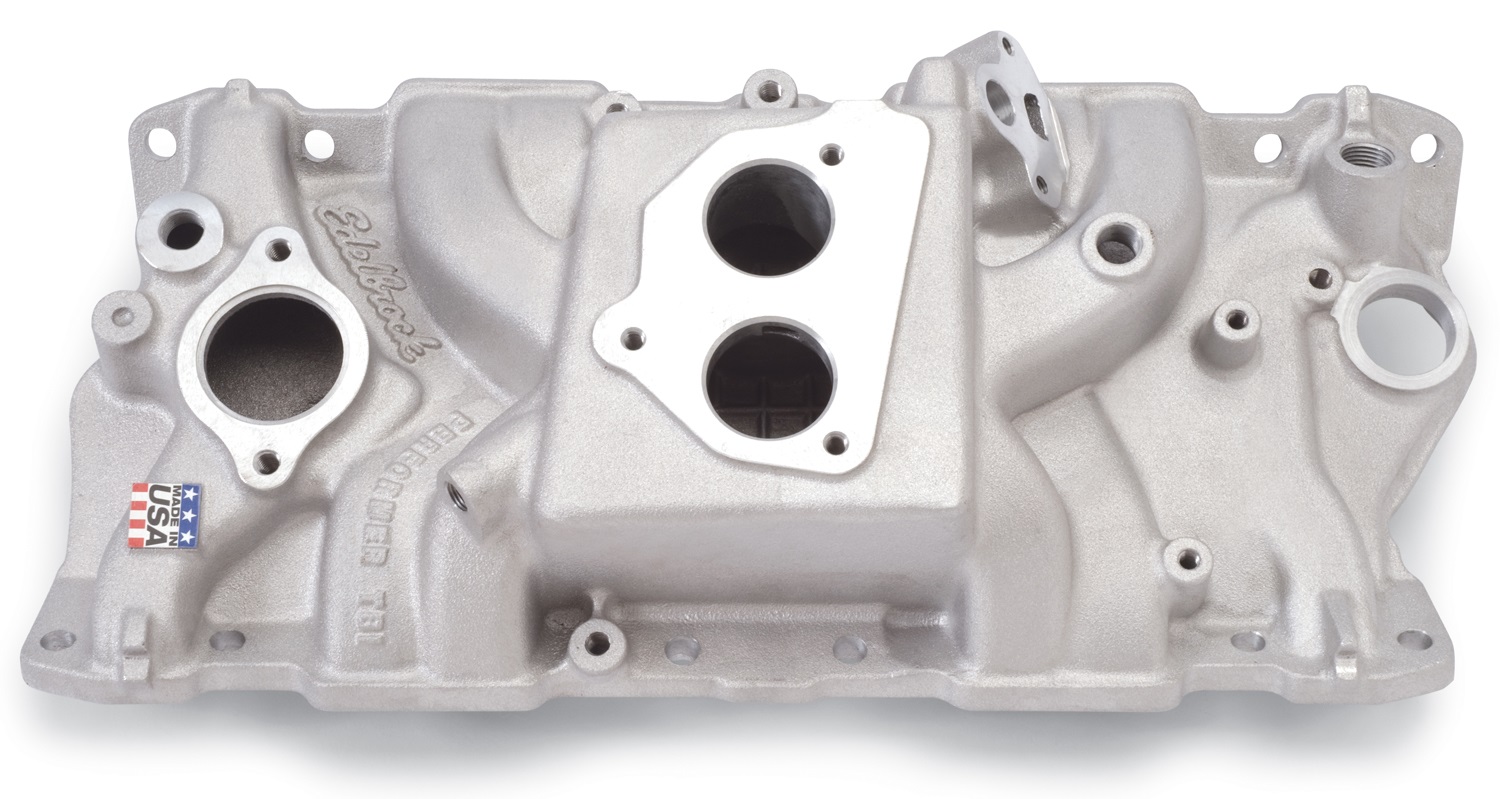

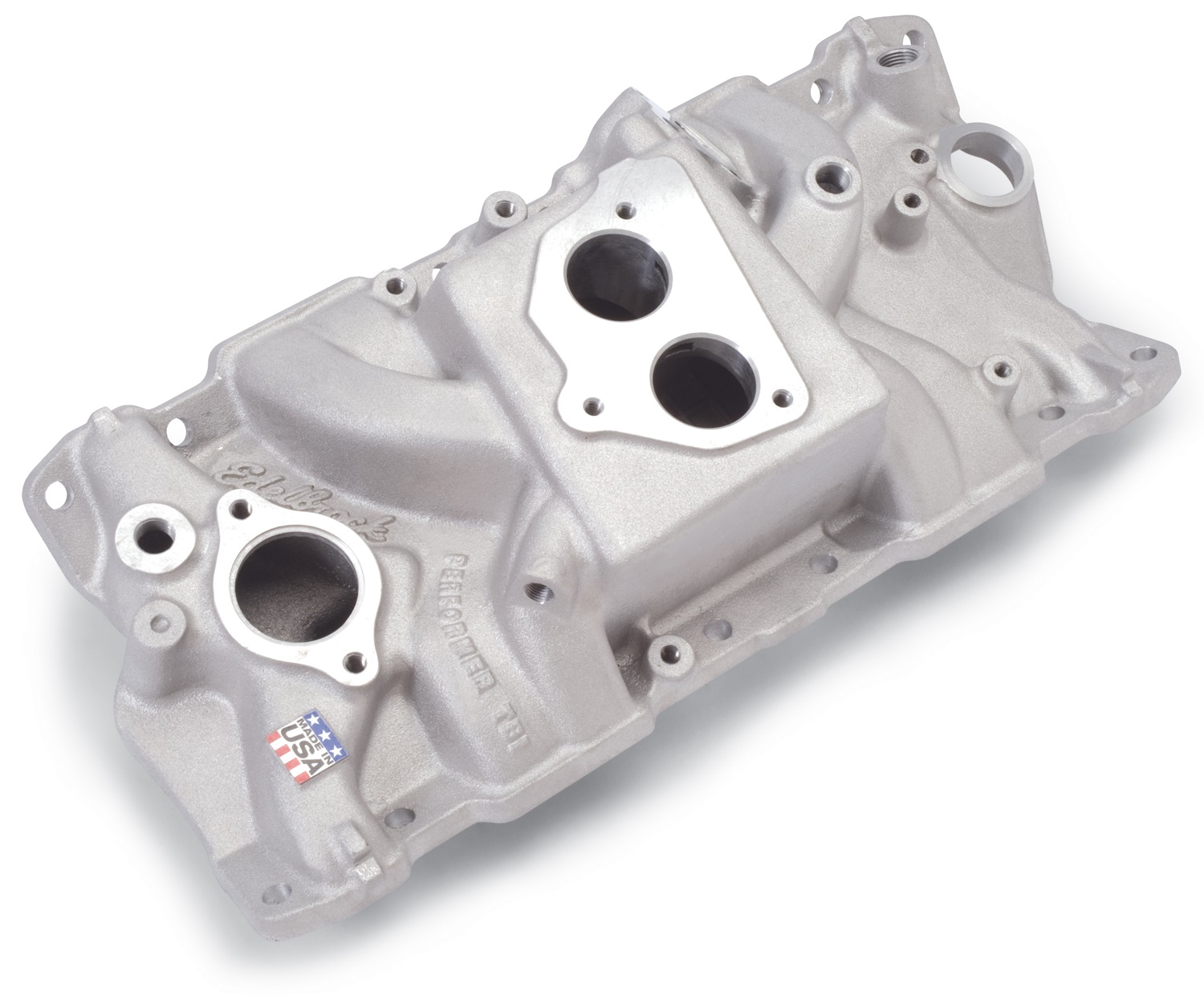

Edelbrock 3704 - Performer TBI Manifold, Chevrolet Small Block
Designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (TBI) engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. A computer chip is supplied free of charge with proof of purchase of manifold, cam and heads. Will not fit Caprice or Buick and Cadillac “B” bodies.
- For idle to 5500 RPM street-driven performance
- All factory connections used
- Patented runner design ensures broad torque curve
- Excellent throttle response and mid-range power
- For OE and small-bore TBI injectors only
- No chip changes/computer modifications required
- for 5.7L power-package provides free computer chip
Car/Engine: | Chevrolet Small Block |
Engine Notes: | For 1987-95 305/350 c.i.d. 5.0/5.7L |
Color/Finish: | Satin |
RPM Range: | Idle-5500 |
Serie: | Performer |
Related links
Installation Notes
-
- Use stock Throttle Body Injection unit.
- Recommended intake gasket: GM # 10159409.
- Manifold height: A-3.70", B-5.10"; TBI pad height: 4.40", .250" taller than stock.
- Port exit dimensions: 1.13" x 1.87".
- Made in the USA
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure a proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
